285-4106 2854106 Excavator Spare Parts D155AX-5

Name: 285-4106 2854106 Excavator Spare Parts D155AX-5
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 285-4106
Price: 7.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 285-4106

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                D155AX-5 excavator cylinder seal kit, excavator spare parts seal kit, D155AX-5 hydraulic cylinder seals


Part No.::	285-4106	Part Name::	SERVICE KIT
Model:	D155AX-5	Machine:	Loaders
Material:	SILICON,rubber	Color:	RED, BLACK,WHITE

Part No.::	285-4106
Part Name::	SERVICE KIT
Model:	D155AX-5
Machine:	Loaders
Material:	SILICON,rubber
Color:	RED, BLACK,WHITE

Product Description

1. Quick Details of seal 285-4106 :

Part NO.	285-4106
Machine	D155AX-5
Size	OEM
Material	fiberglass,NBR,SILICON,
Oil seal type	SERVICE KIT,TSTEERING

2. 285-4106 parts on group :

285-4106 2854106 Excavator Spare Parts D155AX-5 0

NO.	PART NO.	PART NAME	QTY
	2854106	SERVICE KIT	2
	195-63-01441	CYLINDER ASS'Y,L.H.	1
	195-63-01440	CYLINDER ASS'Y,L.H.	1
	195-63-01451	CYLINDER ASS'Y,R.H.	1
	195-63-01450	CYLINDER ASS'Y,R.H.	1
1	195-63-44640	CYLINDER	1
2	707-76-10120	BUSHING	1
3	07145-00100	SEAL,DUST (KIT)	2
4	07020-00675	FITTING,GREASE	1
5	07042-10108	PLUG	1
6	707-27-22320	HEAD,CYLINDER	1
6	707-27-22290	HEAD,CYLINDER	1
7	707-52-90850	BUSHING	1
7	07177-01135	BUSHING	1
8	707-51-11030	PACKING,ROD (KIT)	1
8	707-51-11110	PACKING,ROD (KIT)	1
8A	707-51-11640	RING,BUFFER (KIT)	1
9	198-63-94170	SEAL,DUST (KIT)	1
9	07016-21109	SEAL,DUST (KIT)	1
10	07179-13126	RING,SNAP	1
11	07000-15220	O-RING (KIT)	1
12	07001-05220	RING,BACK-UP (KIT)	1
13	01010-62795	BOLT	6
14	01011-62705	BOLT	2
15	01643-32780	WASHER	8
15	01602-02783	WASHER,SPRING	8
16	195-63-44221	ROD,PISTON	1
17	707-76-10110	BUSHING	1
18	07145-00100	SEAL,DUST (KIT)	2
19	07020-00900	FITTING,GREASE	1
20	707-36-22050	PISTON	1
21	07000-B2085	O-RING (KIT)	1
21	07000-12085	O-RING (KIT)	1
22	07001-02085	RING,BACK-UP (KIT)	2
23	707-44-22290	RING,PISTON (KIT)	1
23	707-44-22280	RING,PISTON (KIT)	1
24	07155-02250	RING,WEAR (KIT)	1
25	707-40-22021	SPACER	2
26	01010-61455	BOLT	6
27	195-78-72450	TUBE,L.H.	1
27	195-78-72460	TUBE,R.H.	1
28	195-78-72430	TUBE,L.H.	1
28	195-78-72440	TUBE,R.H.	1
29	07000-13035	O-RING (KIT)	2
30	01010-81050	BOLT	4
31	01010-81060	BOLT	4
32	01643-51032	WASHER	8
32	01602-21030	WASHER,SPRING	8
33	07283-23450	CLIP	2
34	01010-81025	BOLT	4
35	01643-31032	WASHER	4
36	195-78-72550	BRACKET,L.H.	1
36	195-78-72560	BRACKET,R.H.	1
37	01643-31032	WASHER	4
38	01599-01011	NUT	4
39	707-88-33040	CAP	2
39	07378-11000	HEAD	2
40	07000-13032	O-RING	2
41	07371-31049	FLANGE,SPLIT	4
42	07372-21035	BOLT	8
43	01643-51032	WASHER	8

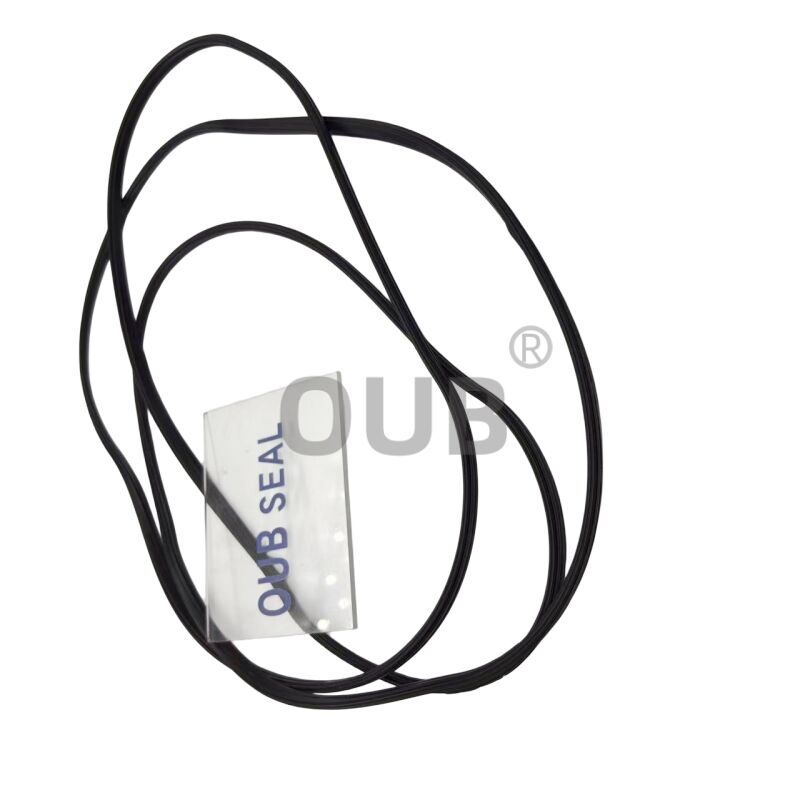

3. 285-4106 picture:

285-4106 2854106 Excavator Spare Parts D155AX-5 1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-45040	707-99-62120	707-99-44230
707-99-45220	707-99-64010	707-99-44270
707-99-45230	707-99-64030	707-99-44280
707-99-45250	707-99-64040	707-99-44290
707-99-45310	707-99-64050	707-99-44310
707-99-46030	707-99-64080	707-99-44340
707-99-46120	707-99-64120	707-99-44380
707-99-46130	707-99-64130	707-99-45040
707-99-46200	707-99-64150	707-99-45220
707-99-46210	707-99-64152	707-99-45230
707-99-46270	707-99-64180	707-99-45250
707-99-46290	707-99-64200	707-99-45310
707-99-46320	707-99-64230	707-99-46030

5. FAQ
Q: How do I install these large O-ring seals correctly?
A: First, clean the seal groove thoroughly. Lubricate the seal with clean hydraulic oil, then install it carefully to avoid twisting or pinching. Use a seal installation tool or your fingers (with no sharp tools) to seat it evenly in the groove.

Q:Will these seals fit my specific cylinder model?

A:These are sized for specific cylinder models based on groove dimensions. Please provide your cylinder’s part number or seal dimensions, and we can confirm compatibility.

Q: What causes these seals to fail prematurely?
A:Common causes include improper installation (twisting, pinching), dirt or debris in the groove, incompatible fluids, excessive heat, or damage during assembly.

6. Exhibition and Wearhous
