Highlight:
Copper O ring seal
, D155AX-6 O ring
, D155A-5 copper seal
1. Quick Details of seal 17m-15-45980 :
| Part NO. |
17m-15-45980 |
| Machine |
Crawler Dozer |
| Size |
OEM |
| Material |
Oil seal ,Gasket |
| Oil seal type |
OIL SEAL |
2. 17m-15-45980 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
17M-22-50100 |
Power Train Assembly |
1 |
| 2 |
17M-15-51100 |
Transmission Assembly |
1 |
| 3 |
17A-15-00310 |
Case Assembly |
1 |
| 4 |
07043-71019 |
Plug |
5 |
| 5 |
07043-70312 |
Plug |
1 |
| 6 |
09608-05080 |
Plate, Name (Limited Supply) |
1 |
| 7 |
04418-13060 |
Screw |
4 |
| 8 |
17A-15-25181 |
Sleeve |
1 |
| 9 |
07000-73030 |
O-ring, (Kit : K04) |
1 |
| 10 |
07000-73028 |
O-ring, (Kit : K04) |
1 |
| 11 |
17A-15-25150 |
Block |
1 |
| 12 |
01010-81075 |
Bolt |
2 |
| 13 |
01643-31032 |
Washer |
2 |
| 14 |
17M-15-45160 |
Sleeve |
1 |
| 15 |
07000-72014 |
O-ring, (Kit : K04) |
1 |
| 16 |
07000-73025 |
O-ring, (Kit : K04) |
1 |
| 17 |
17A-15-25140 |
Block |
1 |
| 18 |
01010-81060 |
Bolt |
2 |
| 19 |
01643-31032 |
Washer |
2 |
| 20 |
17M-15-45190 |
Sleeve |
1 |
| 21 |
07000-73022 |
O-ring, (Kit : K04) |
1 |
| 22 |
07000-72014 |
O-ring, (Kit : K04) |
1 |
| 23 |
17M-15-44150 |
Sleeve |
1 |
| 24 |
07000-73025 |
O-ring, (Kit : K04) |
1 |
| 25 |
07000-73030 |
O-ring, (Kit : K04) |
1 |
| 26 |
07000-73032 |
O-ring, (Kit : K04) |
1 |
| 27 |
426-15-11260 |
Bolt |
13 |
| 28 |
145-14-11571 |
Washer |
13 |
| 29 |
04020-01434 |
Pin, Dowel |
2 |
| 30 |
01010-81235 |
Bolt |
19 |
| 31 |
01643-31232 |
Washer |
19 |
| 32 |
17M-15-45980 |
O-ring, (Kit : K04) |
1 |
| 33 |
07000-72085 |
O-ring, (Kit : K04) |
1 |
| 34 |
07000-72055 |
O-ring, (Kit : K04) |
2 |
| 35 |
07000-73038 |
O-ring, (Kit : K04) |
1 |
| 36 |
07000-73045 |
O-ring, (Kit : K04) |
1 |

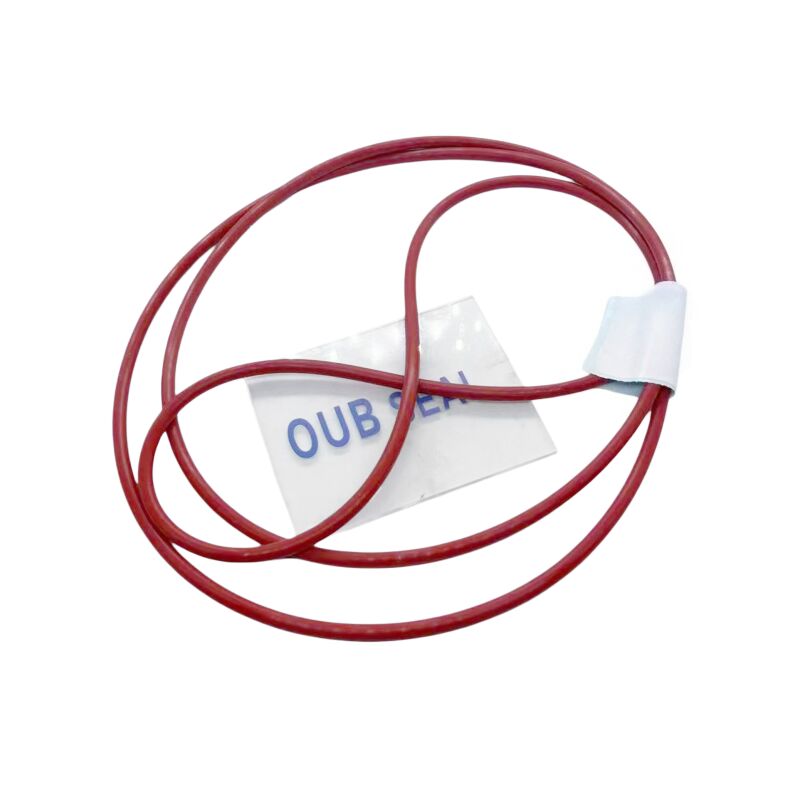

3. 17m-15-45980 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-51-40650 |
707-51-10110 |
707-98-36560 |
| 707-51-45640 |
707-51-80630 |
707-98-36590 |
| 707-35-91060 |
707-44-85180 |
707-51-70211 |
| 707-35-91100 |
707-44-10150 |
707-51-75030 |
| 707-35-91130 |
707-44-85150 |
707-51-75110 |
| 707-35-91140 |
707-44-90070 |
707-51-75211 |
| 707-35-91200 |
707-44-90080 |
707-51-80030 |
| 707-35-91220 |
707-44-90180 |
707-51-80110 |
| 707-35-91250 |
707-44-90150 |
707-51-80211 |
| 707-35-91311 |
707-44-95180 |
707-51-85130 |
| 707-35-91320 |
707-44-95150 |
707-51-85030 |
| 707-35-91440 |
707-44-10080 |
707-51-85211 |
| 707-35-91550 |
707-44-10180 |
707-51-90860 |
| 707-35-91610 |
707-44-10250 |
707-51-90130 |
| 707-51-75640 |
707-51-13030 |
707-98-60120 |
5. FAQ
Q: What are the key properties of silicone rubber for O-rings?
A: Silicone offers excellent high-temperature resistance (typically -60°C to +200°C), good flexibility, and resistance to ozone and weathering. It is ideal for applications involving hot air, steam, or non-polar fluids, though it is not recommended for use with most mineral oils or fuels.
Q: How do I install this O-ring correctly?
A: First, ensure the O-ring groove and mating surfaces are clean, smooth, and free of burrs. Lubricate the O-ring with a compatible fluid or grease to ease installation. Carefully fit the O-ring into the groove, taking care not to twist or stretch it excessively. When assembling the components, use proper tools to avoid pinching or cutting the seal.
Q: What common issues cause O-ring failure?
A: Common causes include improper installation (twisting, pinching, or overstretching), chemical incompatibility with the fluid, excessive heat or cold leading to hardening or brittleness, surface scratches on mating parts, and using the wrong size or durometer.
Q: How do I install this oil seal correctly?
A: Clean the housing bore and shaft thoroughly, lubricate the seal lip and shaft with compatible oil, align the seal with the bore, and press it evenly using a seal driver until it sits flush, taking care not to damage the lip or tilt the seal.
6. Exhibition and Wearhous
