8T-2185 8T2185 U-RING, U CUP RING,Construction Machinery Parts 8U 8SU 8A,D8T,D8R

1. Quick Details of  seal 8T-2185:

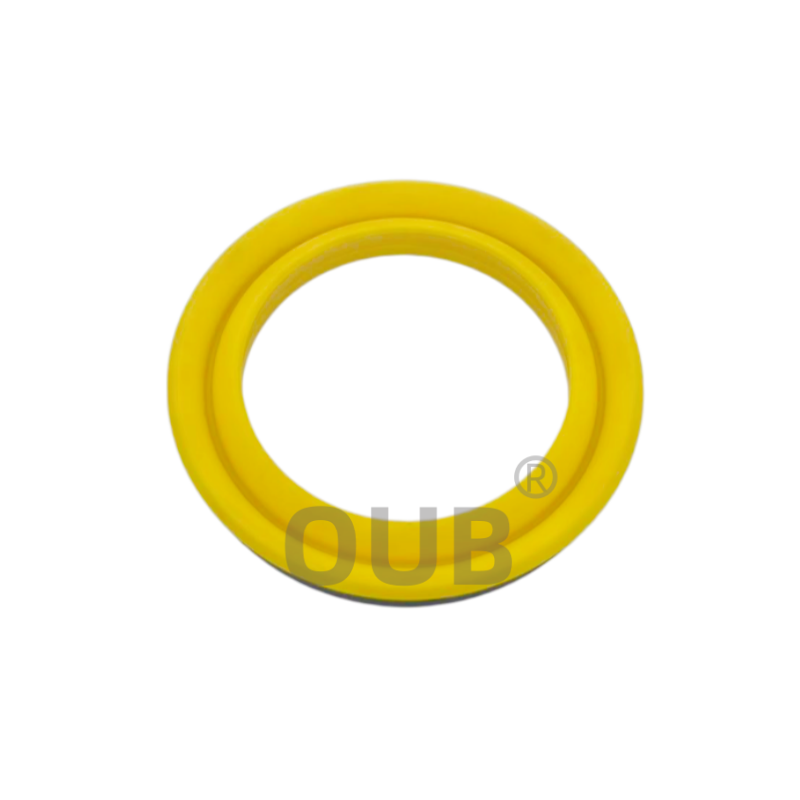

2.  8T-2185 picture:

3. Service part number :


4. FAQ

Q: Why does the 8T-2185 sealing ring adopt a U-shaped cup design?
A: The Cat  8T-2185 is a high-performance hydraulic rod or piston seal. It is engineered with a U-cup shape because that specific geometry is the industry standard for handling the intense, fluctuating pressures found in heavy machinery hydraulic cylinders. Here is exactly why the U-cup design is used and how it works:firstly;Pressure-Energized Sealing (The Core Benefit)The defining feature of a U-cup seal is its "U" or "V" shaped cross-section, which creates two distinct sealing lips (an inner lip and an outer lip). At low pressure: The lips are designed with a slight interference fit, meaning they naturally press against the cylinder wall and the rod to create a baseline seal.At high pressure: When hydraulic fluid enters the "U" channel, the pressure forces the lips apart. This pushes the lips even harder against the metal surfaces.

In short: The harder the hydraulic system works, the tighter the seal becomes.

Q: What material is it made of?
A: This bright yellow seal is almost certainly made of high-performance polyurethane (PU), a common material for rod seals. Some variants may also use filled PTFE or rubber compounds, but the color and profile strongly indicate polyurethane.

Q: Why is polyurethane the material of choice here?
A: Polyurethane offers exceptional wear resistance, high tensile strength, and excellent resistance to extrusion under pressure. It maintains its sealing lip geometry even under repeated movement and high loads, ensuring a long service life. It also has good compatibility with most hydraulic fluids and low-temperature flexibility, making it ideal for both mobile and industrial equipment.

Q: How long will this seal last when installed correctly?

A: With clean hydraulic fluid, proper installation, and normal operating conditions, a high-quality polyurethane rod seal can last 5,000 to 10,000 operating hours. Contaminated oil, excessive side loads, or high temperatures will significantly shorten its lifespan.
