8D-1643 8D1643 High Quality RING SEAL，DRING TYPE

1. Quick Details of  seal 8D-1643:

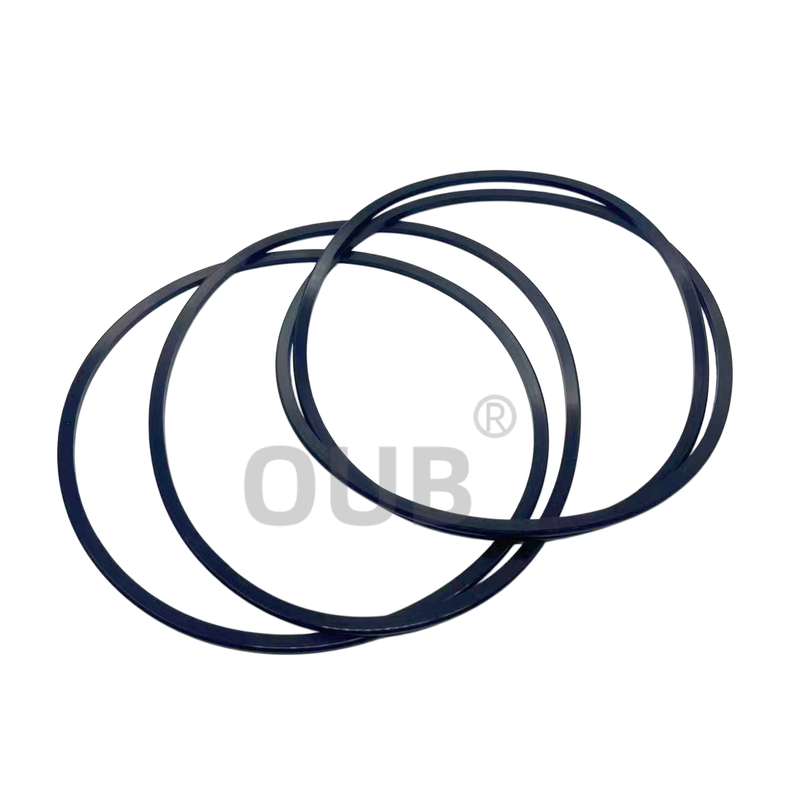

2. 8D-1643  picture:

3. Service part number :


4. FAQ

Q: Could you describe the seal 8D1643 ?

A: The part number 8D-1643 is a specialized D-Ring Seal (specifically designed with a flat base and a curved/rounded outer diameter profile).Unlike standard round O-rings, a D-ring profile prevents the seal from twisting, rolling, or bunching up inside its groove when subjected to high-pressure fluid surges or heavy rotational friction.This rubber compound is engineered to withstand aggressive transmission fluids, gear oils, and high thermal spikes.Primary Functions & ApplicationsThe 8D-1643 seal is used to route high-pressure hydraulic oil from stationary supply lines directly into rotating mechanical assemblies. It prevents pressure drops when the machine commands clutch or braking engagement.It is primarily installed in:Brake Groups & Drive Sprockets: Seals the hydraulic lines acting on heavy wet-brake discs.Power Shift Transmissions & Torque Converters: Maintains hydraulic clutch pack pressure to shift gears smoothly.Equipment Compatibility

A: It acts as the primary pressure barrier on the piston inside the hydraulic cylinder. Its job is to prevent high-pressure oil from flowing past the piston, ensuring the cylinder generates full force, holds loads without drifting, and operates efficiently.

Q: What does the structure of this piston seal ring look like?
A: It’s a precision-engineered, thin circular ring with a specific cross-sectional profile. The shape is designed to fit tightly into the piston’s groove while maintaining constant, low-friction contact with the cylinder wall, balancing sealing performance with smooth movement.

Q: What happens if the seal ring’s dimensions are slightly off?
A: If it’s too small, it won’t press hard enough against the bore, causing fluid to leak past and reducing the cylinder’s power. If it’s too large, forcing it into the groove will permanently stretch or deform it, leading to excessive friction, heat buildup, and early failure.

5. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
