17M-13-46210 17M1346210 SERVICE KIT GASKET Parts ,D275A-5D D275AX-5-KO

Name: 17M-13-46210 17M1346210 SERVICE KIT GASKET Parts ,D275A-5D D275AX-5-KO
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 17M-13-46210
Price: 34.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 17M-13-46210

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                D275A-5D gasket service kit, D275AX-5-KO gasket parts, 17M1346210 gasket replacement kit


Part No.::	17M-13-46210	Model:	D275AX-5
Part Name::	GASKET	Fits For:	TORQUECONVERTER
Machine:	Crawler Dozers	Material:	Nitrile Butadiene Rubber
Color:	YELLOW

Part No.::	17M-13-46210
Model:	D275AX-5
Part Name::	GASKET
Fits For:	TORQUECONVERTER
Machine:	Crawler Dozers
Material:	Nitrile Butadiene Rubber
Color:	YELLOW

Product Description

1. Quick Details of seal 17M-13-46210 :

Part NO.	17M-13-46210
Machine	Crawler Dozers
Size	OEM
Material	Nitrile Butadiene Rubber
Oil seal type	SERVICE KIT GASKET

2. 17M-13-46210 parts on group :

17M-13-46210 17M1346210 SERVICE KIT GASKET Parts ,D275A-5D D275AX-5-KO 0

NO.	PART NO.	PRAT NAME	QTY
1	17M-13-51101	Power Piston Assembly	1
2	17M-13-43211	Case	1
3	07043-70108	Plug	7
4	07043-71019	Plug	5
5	07043-72026	Plug, Taper	2
6	711-66-13140	Sleeve	1
7	09607-05080	Plate, Name (Limited Supply)	1
8	04418-13060	Screw	4
9	17A-13-22550	Sleeve	2
10	07000-73035	O-ring, (Kit : K01, K02)	2
11	07000-73038	O-ring, (Kit : K01, K02)	2
12	04064-09530	Ring, Snap	1
13	17M-13-22370	Cover	1
14	07000-75175	O-ring, (Kit : K01, K02)	1
15	19M-13-23360	Bearing	1
16	07012-50120	Seal, Oil, (Kit : K01, K02)	1
17	17M-13-22730	Seal, Dust, (Kit : K01, K02)	1
18	17M-13-21341	Race	1
19	17M-13-21770	Spacer	1
20	711-66-14270	Shim, T=0.15mm, (Kit : K01, K02)	6
21	711-66-14280	Shim, T=0.2mm, (Kit : K01, K02)	6
22	711-66-14290	Shim, T=0.5mm, (Kit : K01, K02)	4
23	07043-70108	Plug	1
24	01010-81035	Bolt	6
25	01643-31032	Washer	6
26	17M-13-22360	Coupling	1
27	17M-13-56220	Cover	1
28	17M-13-46210	Gasket, (Kit : K01, K02)	1
29	01010-81025	Bolt	8
30	01643-31032	Washer	8
31	17M-13-42140	Gear	1
32	17A-13-24490	Bearing	1
33	04065-07225	Ring, Snap	1
34	04064-03515	Ring, Snap	1

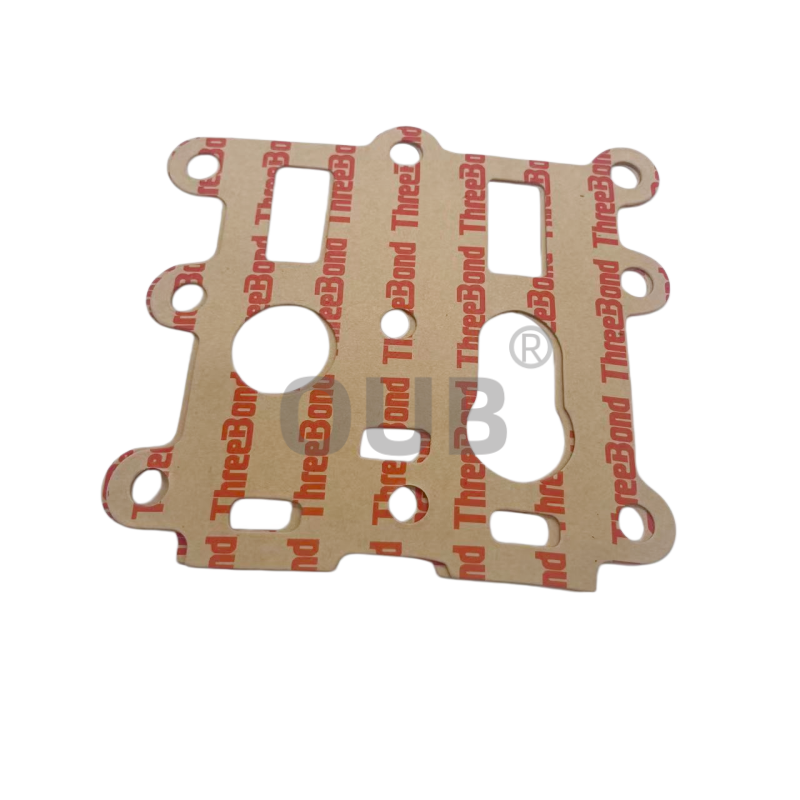

3. 17M-13-46210 picture:

17M-13-46210 17M1346210 SERVICE KIT GASKET Parts ,D275A-5D D275AX-5-KO 1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-35-52670	707-51-45640	707-99-75600
707-51-45640	707-51-11640	707-51-80640
707-51-50640	707-99-43690	707-98-36600
707-51-55630	707-51-90630	707-98-36700
707-51-55640	707-51-90640	707-51-16030
707-51-60640	707-51-90650	707-98-37110
707-51-60650	707-51-95630	707-51-11030
707-51-65630	707-51-12650	707-51-11110
707-51-65640	707-44-10911	707-51-11860
707-51-65650	707-44-11080	56D-50-13170
707-35-99500	707-51-85030	56D-50-13171
707-35-52830	707-44-10911	707-51-18030
707-35-52860	707-98-60120	707-98-58240
707-51-70650	707-98-60121	707-51-20250
707-99-77240	707-98-61100	707-35-52700

5. FAQ

Q: What is the function of this gasket?
A: Its core job is to create a static, leak-proof seal between two mating components. It fills minor surface imperfections and gaps to prevent oil, fuel, or hydraulic fluid from leaking out, while also blocking contaminants from entering the system.

Q: What color is this gasket?
A: It’s a light tan/brown color, with red “ThreeBond” branding printed across its surface.

Q: What is the structure of this gasket?
A: It’s a precision-cut flat sheet with a custom profile. It has exactly aligned bolt holes, fluid passage cutouts, and mounting features to match the geometry of the parts it seals.

Q: Where is this gasket installed?
A: It sits between two flat mating surfaces, such as a pump housing and its cover, a valve body, or an engine component. The bolt holes in the gasket align perfectly with the fastener holes in the parts.

Q: What happens if the gasket’s dimensions are slightly off?
A: If the cutouts don’t align with fluid passages, it can block flow and cause pressure buildup. If the bolt holes are misaligned, clamping pressure will be uneven, leading to leaks and potential component warping.

Q: What happens if the gasket is installed backwards?
A: Installing it the wrong way can misalign the bolt holes or passage cutouts, causing blockages or leaks. Some coated gaskets also have a specific side designed to face the fluid, so reversing it can lead to premature degradation.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
