Product Details
Place of Origin: China
Brand Name: NOK
Model Number: Kobelco
Payment & Shipping Terms
Minimum Order Quantity: 10Set/Accept trial order
Price: Negotiable
Packaging Details: PP Bag Inside,Carton Box Outside
Delivery Time: Within 5-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Set
Part No.: |
2438U1133F1 |
Machine: |
KOBELCO |
Model: |
SK115DZ SK120 SK130 |
Appliion: |
BOOM CYLINDER SSEAL KIT |
Place Of Origin: |
China |
Color: |
Blue U RING |
Rod Seal: |
2438U561S11 |
Size: |
70mm |
Part No.: |
2438U1133F1 |
Machine: |
KOBELCO |
Model: |
SK115DZ SK120 SK130 |
Appliion: |
BOOM CYLINDER SSEAL KIT |
Place Of Origin: |
China |
Color: |
Blue U RING |
Rod Seal: |
2438U561S11 |
Size: |
70mm |
1. Repair Seal Kit Details
| Part NO | 2438U1133F1 2438U1133R100 2438U1133R200 |
| Machine | KOBELCO SK115DZ SK120 SK130 |
| Size | 70mm rod size |
| Material | PU/NBR/SPCC |
| Oil seal type | BOOM CYLINDER SERVICE KIT |
2. 2438U1133F1 PART NO. ON CYLINDER:
| Pos. | Part No | Qty | Parts name |
| . . | 2438U1133F1 | [1] | CYLINDER |
| 1 | 2438U1133S1 | [1] | TUBE |
| 2 | 2438U1098S2 | [1] | BUSHING |
| 3 | 2438U1133S3 | [1] | PISTON ROD |
| 4 | 2438U1099S4 | [1] | BUSHING |
| 5 | 2438U1133S5 | [1] | PISTON |
| 6 | ZD12G06000 | [1] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm |
| 7 | ZD75G06000 | [2] | BACK-UP RING |
| 8 | 2438U807S4 | [1] | SEAL |
| 9 | 2438U807S5 | [1] | O-RING |
| 10 | 2438U922S10 | [2] | RING |
| 11 | 2438U971S11 | [1] | RING |
| 12 | 2438U1133S12 | [1] | NUT |
| 13 | 2438U974S13 | [1] | LOCKING RING |
| 14 | 2438U971S14 | [1] | SEAT CUSHION |
| 15 | 2438U1133S15 | [1] | COVER |
| 16 | ZD12G10000 | [2] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm |
| 17 | ZD75G10000 | [2] | BACK-UP RING |
| 18 | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm |
| 19 | 2438U1099S19 | [1] | BUSHING |
| 20 | B38K0040E9 | [1] | SNAP RING |
| 21 | R45P0050D1 | [1] | SEAL |
| 22 | R45P0051D1 | [1] | O-RING |
| 23 | 2438U561S11 | [1] | ROD |
| 24 | 2438U922S31 | [1] | SEAL |
| 25 | 2438U1123S25 | [2] | SEAL |
| 26 | ZS23C14055 | [8] | SCREW,Hex Socket Head, M14 x 55mm |
| 27 | 2438U1133S27 | [1] | BRACKET |
| 28 | 2438U922S28 | [1] | CLAMP |
| 29 | ZS16C10030 | [2] | CAPSCREW |
| 30 | ZW26X10000 | [2] | LOCK WASHER |
| 31 | 2438U1123S31 | [2] | SEAL |
| . . | 2438U1133R100 | [1] | REPAIR KIT |
| . . | 2438U1133R200 | [1] | REPAIR KIT |
| . . | 2438U1133R300 | [1] | REPAIR KIT |

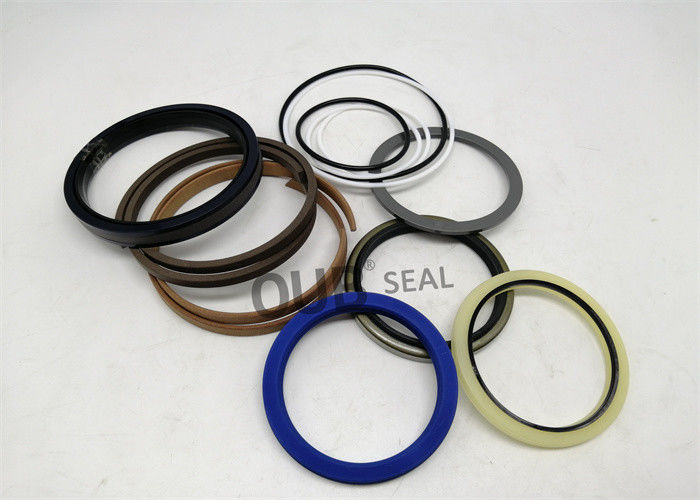

3. Picture viewing for 2438U1133R100
4. KOBELCO SERVICE KIT NO. AND PART NO.
| SERVICE KIT No. | Part No. | Part No. |
| 2438U1133F1 | 2438U1131 | VI8970133200 |
| 2438U1131F1 | LP54D01001P1 | LE21C01243P1 |
| 2438U1133R100 | 2438N260C2 | 2040273 |
| 2438U1133R200 | 2438U1150P1 | 3179183 |
| 2438U1133R300 | 2438U73BF1 | 2280807 |
| 2438U953S3 | 2438U73BF2 | 3561178 |
5. FAQ
Q1. What kind of cylinder service kit do you have?
A1. We have cylinder kits such as boom,arm,bucket,blade lift,tilt,ripper,counter weigh,adjuster,positioning cylinder.
Q2. Why can't I find what I need on your website?
A2. There are too many product egories to upload to the website one by one.you can contact
Q3. Can you quote for the size and picture?
A3. Of cause!We can check by a part no.or machine no.or size or picture.becuase we are professional.
6. Exhibition & Warehous
