Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | OUB |
| Certification: | ISO9001 |
| Model Number: | 707-98-56210 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 Pcs/Accept trial order |
| Price: | Negotiable |
| Packaging Details: | PP Bag Inside.outer is carton with film wrapped. |
| Delivery Time: | Within 5-15 days after getting your desposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000SET |
|
Detail Information |
|||
| Part No.: | 707-98-56210 | Machine: | KOMATSU PC1100 |
|---|---|---|---|
| Product Name: | BOTTOM DUMP CYLINDER SERVICE KIT | Size: | OEM |
| Material: | PU,NBR And SPCC | Temperature Range: | -20 To +150 ℃ |
| Package: | 1pcs As A Seperate, Corteco Or NOK Bag | ||
| High Light: | Excavator Bottom Dump Cylinder Service Kit,707-98-56210 Cylinder Service Kit,PC1100 Cylinder Service Kit |
||
Product Description
1. Repair Seal Kit Details
| Part NO. | 707-98-56210 |
| Machine | KOMATSU PC1100 |
| Size | OEM |
| Material | NBR/ FKM/FKM |
| Oil seal type | IDI HBY BUFFER BACK UP RING PISTON RING WARE RING |
2. SEAL KITS PART NO. SHOWS ROOM FOR BOTTOM DUMP CYLINDER:
| Pos. | Part No | Qty | Parts name |
| 37 | 01010-81020 | [4] | BOLT Komatsu |
| 34 | 01010-81035 | [4] | BOLT Komatsu |
| 14 | 01010-81875 | [12] | BOLT Komatsu |
| 27 | 01310-01216 | [1] | SCREW Komatsu |
| 31 | 01435-01055 | [8] | BOLT Komatsu |
| 35 | 01643-31032 | [4] | WASHER Komatsu |
| 43 | 01643-51032 | [8] | WASHER Komatsu |
| 41 | 07000-13032 | [2] | O-RING Komatsu China |
| 30 | 07000-13035 | [2] | O-RING (KIT) Komatsu China |
| 21 | 07000-15080 | [1] | O-RING (KIT) Komatsu China |
| 12 | 07000-15130 | [2] | O-RING (KIT) Komatsu OEM |
| 4 | 07043-00108 | [1] | PLUG,GREASE Komatsu |
| 3 | 07145-00090 | [2] | SEAL,DUST (KIT) Komatsu OEM |
| 10 | 07179-13104 | [1] | RING,SNAP Komatsu |
| 36 | 07282-03411 | [2] | CLAMP Komatsu |
| 40 | 07371-31049 | [4] | FLANGE Komatsu |
| 42 | 07372-21035 | [8] | BOLT Komatsu |
| 39 | 07378-11000 | [2] | HEAD Komatsu |
| 9 | 195-63-94170 | [1] | SEAL,DUST (KIT) Komatsu China |
| 2 | 207-63-76170 | [1] | BUSHING Komatsu China |
| 33 | 209-62-53660 | [2] | BAND Komatsu China |
| 32 | 21N-62-13640 | [2] | BRACKET Komatsu China |
| 29 | 21N-62-13740 | [1] | TUBE,R.H. Komatsu China |
| 29 | 21N-62-13750 | [1] | TUBE,L.H. Komatsu China |
| 21N-63-03160 | [1] | CYLINDER ASS'Y,BOTTOM DUMP Komatsu | |
| 16 | 21N-63-96320 | [1] | ROD,PISTON Komatsu China |
| 1 | 21N-63-96340 | [1] | CYLINDER Komatsu China |
| 28 | 21N-63-96370 | [1] | TUBE,L.H. Komatsu China |
| 28 | 21N-63-96470 | [1] | TUBE,R.H. Komatsu China |
| G-1. | 21N-63-X3160 | [1] | CYLINDER GROUP,BOTTOM DUMP, L.H. |
| G-1. | 21N-63-X3170 | [1] | CYLINDER GROUP,BOTTOM DUMP, R.H. |
| 5 | 707-27-14830 | [1] | HEAD,CYLINDER Komatsu China |
| 22 | 707-35-90940 | [2] | RING,BACK-UP (KIT) Komatsu |
| 13 | 707-35-91420 | [3] | RING,BACK-UP (KIT) Komatsu OEM |
| 20 | 707-36-14370 | [1] | PISTON Komatsu China |
| 24 | 707-39-14820 | [2] | RING,WEAR (KIT) Komatsu China |
| 15 | 707-41-11840 | [12] | WASHER Komatsu |
| 25 | 707-44-14180 | [1] | RING,PISTON (KIT) Komatsu China |
| 23 | 707-44-14910 | [2] | RING Komatsu |
| 6 | 707-51-90030 | [1] | PACKING,ROD (KIT) Komatsu |
| 7 | 707-51-90630 | [1] | RING,BUFFER (KIT) Komatsu China |
| 8 | 707-52-90650 | [1] | BUSHING Komatsu China |
| 11 | 707-71-34610 | [1] | COLLAR Komatsu China |
| 26 | 707-71-60950 | [1] | PLUNGER Komatsu China |
| 17 | 707-76-90040 | [1] | BUSHING Komatsu |
| K. | 707-98-56210 | [2] | SERVICE KIT Komatsu China |
3. Our advantages
4. KOMATSU SERVICE KITS NO.
| NO. | KOMATSU MODEL | CYLLINDER NO. | SEAL KIT NO. |
| 1 | PC800-7 | 707-01-0Y020 | 707-99-77300 |
| 2 | PC800-7 | 209-63-02540 | 707-99-68560 |
| 3 | PC1000-1 | 21N-63-02030 | 707-99-89200 |
| 4 | PC1000-1 | 21N-63-03030 | 707-99-69620 |
| 5 | PC1000-1 | 21N-63-02010 | 707-99-78620 |
| 6 | PC1000-1 | 21N-63-03010 | 707-99-78620 |
| 7 | PC1000-1 | 21N-63-03071 | 707-99-56310 |
| 8 | PC1000-1 | 21N-63-02040 | 707-99-78630 |
| 9 | PC1000-1 | 21N-63-03050 | 707-99-77250 |
| 10 | PW60N-1 | 201-63-26301 | 707-99-26600 |
| 11 | PW60N-1 | 20B-63-12102 | 707-99-26600 |
| 12 | PW60N-1 | 20B-63-22101 | 707-99-03500 |
| 13 | PW100-3 | 20G-63-12101 | 707-98-37500 |
| 14 | PW100-3 | 20G-63-12201 | 707-98-37500 |
| 15 | PW210-1 | 205-63-62101 | 707-98-48600 |
| 16 | PW210-1 | 205-63-69300 | 707-98-38551 |
| 17 | PW210-1 | 205-63-52100 | 707-98-46200 |
| 18 | PW210-1 | 205-63-52200 | 707-98-46200 |
| 19 | PW210-1 | 205-63-72100 | 707-98-38500 |
| 20 | PW210-1 | 205-63-72100 | 707-98-38551 |
| 21 | PW210-1 | 205-63-72301 | 707-98-46100 |
| 22 | PW210-1 | 20K-63-02101 | 707-98-45700 |
| 23 | PW210-1 | 20K-63-02030 | 707-98-22430 |
| 24 | PW210-1 | 20G-63-32100 | 707-98-37500 |
| 25 | WA320-3 | 707-99-62020 | |
| 26 | WA320-3 | 07177-08040 | |
| 27 | WA320-3 | 707-01-02550 | 707-99-62020 |
| 28 | WA320-3 | 707-01-03251 | 707-99-43520 |
| 29 | WA320-3 | 707-99-32100 | |
| 30 | WA320-3 | 707-99-05030 |

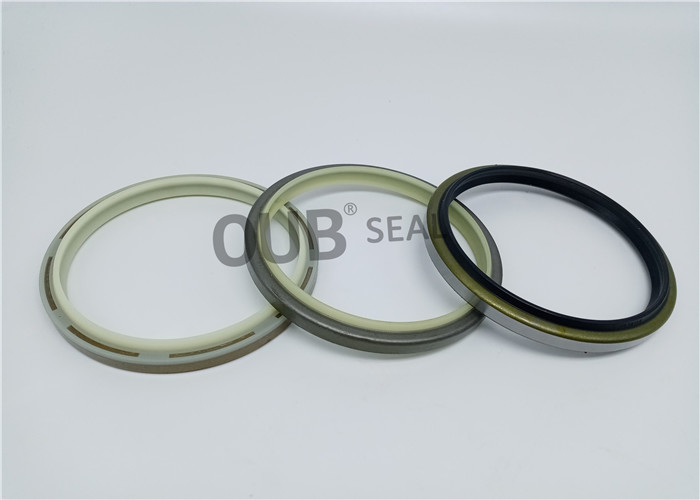

5. Picture viewing
6. FAQ
Q1.Why is your picture inconsistent with the title?
A1. The pictures you saw here may not be related to the part no.. Please contact us if you want to see more details.
Q2.Why can't I find what I need on your website?
A2.Contact us directly and we will help you save your valuable time.
Q3.Can you quote for only one part number?
A3.Why not?We can check by a part no.or machine no.or size or picture.
Q4.How can I contact you ?
A4.My wechat /Whatsapp no. +86 13533728134,+86 13650826584 ,E-mail:vivianwenwen8@gmail.com
