Home ProductsOil Seal KitsXJBN-01579 Oil Seal Kits For Hyundai R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD220LC9 HCE SEAL-OIL genuine
XJBN-01579 Oil Seal Kits For Hyundai R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD220LC9 HCE SEAL-OIL genuine
XJBN-01579 Oil Seal Kits For Hyundai R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD220LC9 HCE SEAL-OIL genuine XJBN-01579 Oil Seal Kits For Hyundai R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD220LC9 HCE SEAL-OIL genuine

XJBN-01579 Oil Seal Kits For Hyundai R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD220LC9 HCE SEAL-OIL genuine

Product Details:
Place of Origin: China
Brand Name: OUB NOK
Certification: ISO9001
Model Number: XJBN-01579
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs/Accept trial order
Price: Negotiable
Packaging Details: PP Bag Inside,Carton Box Outside
Delivery Time: Within 5-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS+5DAY
Contact Now
  • Detail Information
  • Product Description

Detail Information
OEM: XJBN-01579 PART NAME: OIL SEAL
ROD SIZE: 40mm Material: RUBBER,FKM
Aplication: Hyundai Temp Range: -20 To +250
Colour: BLACK,BROWN Machine Type: HyundaiHX260L,R1200-9,R125LCR-9A,R145CR9
Seal Type: TCN TCV TCZ

Product Description

1. Quick details of the products



Part No. XJBN-01579
Machine Hyundai R250LC9, R250LC9A, R260LC9S,
Material FKM Rubber
Oil seal type TCN TCV
Color black brown



 2.  XJBN-01579 No. Parts on group hydralic pump:

XJBN-01579 Oil Seal Kits For Hyundai R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD220LC9 HCE SEAL-OIL genuine 0



Pos. Part No Qty Parts name
*. 31Q6-10050 [1] MAIN PUMP
111 XJBN-00077 [1] SHAFT-DRIVE,FR
113 XJBN-00078 [1] SHAFT-DRIVE,RR
114 XJBN-00351 [1] COUPLING-SPLINE
123 XJBN-00950 [2] BEARING-ROLLER
124 XJBN-00786 [2] BEARING-NEEDLE
127 XJBN-00081 [4] SPACER-BEARING
NS141. XJBN-00067 [2] BLOCK-CYLINDER
NS151. XJBN-01032 [18] PISTON
NS152. XJBN-01214 [18] SHOE
153 XJBN-00945 [2] PLATE-SET
156 XJBN-00083 [2] BUSHING-SPHERICAL
157 XJBN-00084 [18] SPRING-CYLINDER
211 XJBN-00085 [2] PLATE-SHOE
NS212. XJBN-00070 [2] PLATE-SWASH
NS214. XJBN-00071 [2] BUSHING-TILTING
251 XJBN-00086 [2] SUPPORT
261 XJBN-00087 [1] COVER(F)-SEAL
271 XJBN-01034 [2] CASING-PUMP
312 XJBN-00089 [1] BLOCK-VALVE
NS313. XJBN-01035 [1] PLATE-VALVE(R)
NS314. XJBN-01036 [1] PLATE-VALVE(L)
401 XJBN-00090 [8] SCREW-HEX SOC HD
406 XJBN-00355 [4] SCREW-HEX SOC HD
466 XJBN-00030 [2] PLUG
468 XJBN-00031 [4] PLUG
490 XJBN-00032 [18] PLUG
NS531. XJBN-00358 [2] PIN-TILTING
532 XJBN-00955 [2] PISTON-SERVO
534 XJBN-01037 [2] STOPPER(L)
535 XJBN-00093 [2] STOPPER(S)
NS541. XJBN-00859 [4] SEAT
NS543. XJBN-00860 [2] STOPPER 1
NS544. XJBN-00861 [2] STOPPER 2
NS545. XJBN-00038 [4] BALL-STEEL
NS548. XJBN-00360 [2] PIN-FEED BACK
702 XJBN-00918 [2] O-RING
710 XJBN-00095 [1] O-RING
717 XJBN-00096 [4] O-RING
724 XJBN-00361 [16] O-RING
725 XJBN-00045 [4] O-RING
728 XJBN-00046 [4] O-RING
732 XJBN-00912 [2] O-RING
774 XJBN-01579 [1] OIL SEAL
789 XJBN-00099 [2] RING-BACK UP
792 XJBN-00100 [2] RING-BACK UP
806 XJBN-00101 [2] NUT-HEX
808 XJBN-00364 [2] NUT-HEX
824 XJBN-00102 [2] RING-SNAP
885 XJBN-00103 [2] PIN-VALVE PLATE
886 XJBN-00054 [4] PIN-SPRING
901 XJBN-00104 [2] BOLT-EYE
953 XJBN-00105 [2] SCREW-SET
954 XJBN-00106 [2] SCREW-SET
981 XJBN-00156 [1] NAME PLATE
983 XJBN-00455 [2] PIN
S. XJBN-01212 [2] PISTON SUB ASSY
S. XJBN-01040 [1] CYLINDER ASSY-RH
S. XJBN-01041 [1] CYLINDER ASSY-LH
S. XJBN-00069 [2] SWASH PLATE SUB ASSY
S. XJBN-00072 [2] CHECK VALVE ASSY 1
S. XJBN-00075 [2] CHECK VALVE ASSY 2
S. XJBN-00366 [2] TILTING PIN ASSY

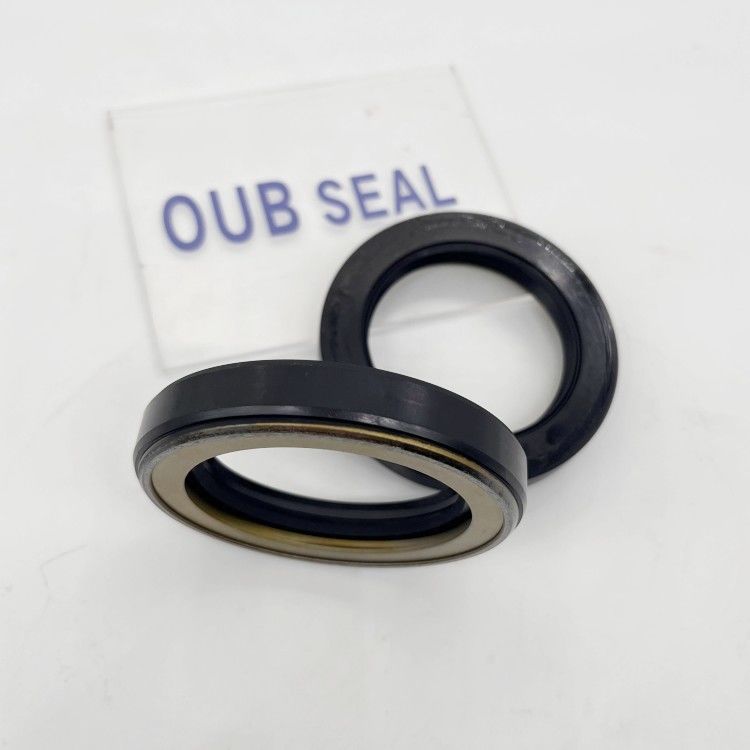

 421-22-32460  OIL SEAL pictures viewing:

 XJBN-01579 Oil Seal Kits For Hyundai R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD220LC9 HCE SEAL-OIL genuine 1



3. Our advantages

  •  Focus on the development and manufacture of Hydraulic Seal Kits for 20 years.
  •  A great number standard parts in stock.
  •  We have oil seal,dust seal,rod seal,BOOM kits,ARM kits,BUCKET kits,main pump kits,hydralic seal kits etc.



4. HYUNDAI  part No. display



part no. part no. part no. Cat.part no.
XJBN-01579 4313402501 22443-23001 31Y1-18210
22144-39001 52810-45000 52810-4A000 4524526210
0788813 308624 0412003 21352-3F300
0408411 0419812 119003 289-2935
3927683 0443408 4297381 2K-6830



5. FAQ



Q: Can I believe you?

A: You can visit my website and visit our factory and office anytime.At the same time, I can visit our production workshop with you by video.

Q: Do you have a minimum order quantity?

A: Ready-made products can also be sold in one quantity.

Q: Where has your product sold to?

A: Our products have sold to America, India, Korea, Africa and other countries over the world.





Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
