Product Details
Place of Origin: China
Brand Name: OUB
Model Number: 4670545
Payment & Shipping Terms
Minimum Order Quantity: 10 Pcs/Accept trial order
Price: Negotiable
Packaging Details: PP Bag Inside.outer is carton with film wrapped.
Delivery Time: Within 5-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000SET
Machine: |
EX5500-5, EX5500-6, EX5500E-6, EX5600-6LD |
Product Name: |
KIT-SEAL 4670545 |
Size: |
OEM |
Material: |
PU,NBR And SPCC |
Temperature Range: |
-20 To +150 ℃ |
Package: |
1pcs As A Seperate, Corteco Or NOK Bag |
Machine: |
EX5500-5, EX5500-6, EX5500E-6, EX5600-6LD |
Product Name: |
KIT-SEAL 4670545 |
Size: |
OEM |
Material: |
PU,NBR And SPCC |
Temperature Range: |
-20 To +150 ℃ |
Package: |
1pcs As A Seperate, Corteco Or NOK Bag |

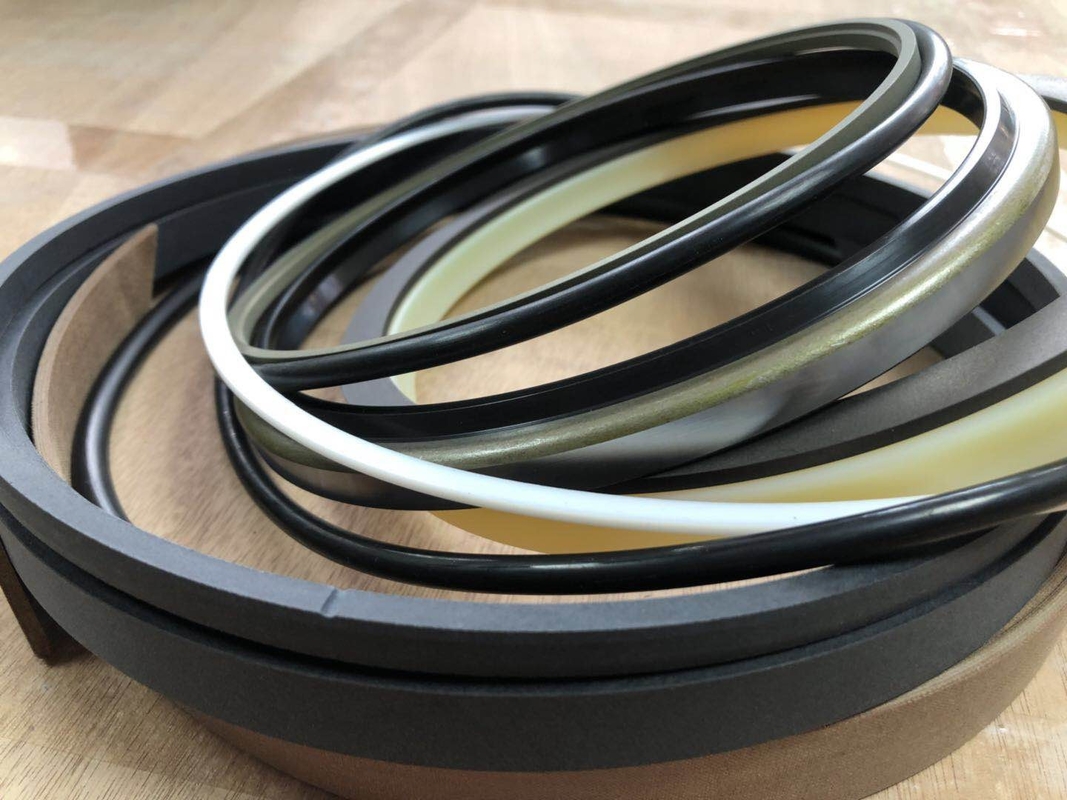

1. Repair Seal Kit Details
| Part NO. | 4670545 |
| Machine |
EX5500-5, EX5500-6, EX5500E-6, EX5600-6LD |
| Size | OEM |
| Material | NBR/ FKM/FKM |
| Oil seal type | IDI HBY BUFFER BACK UP RING PISTON RING WARE RING |
2. SEAL KITS PART NO. ON GROUP:
| Pos. | Part No. | Qty | Parts name |
| 1 | 4411731 | 1 | TUBE;CYL. |
| 1A. | 4411544 | 1 | TUBE;CYL. |
| 1B. | 317228 | 1 | BRG.;SPHERICAL |
| 1C. | 317229 | 1 | RING;RETAINING |
| 2 | 4411746 | 1 | ROD;PISTON |
| 2A. | 4411745 | 1 | ROD;PISTON |
| 2B. | 317228 | 1 | BRG.;SPHERICAL |
| 2C. | 317229 | 1 | RING;RETAINING |
| 3 | 725801 | 1 | HEAD;CYL. |
| 4 | 725802 | 1 | BUSHING |
| 5 | 725803 | 1 | RING;RETAINING |
| 6 | 851901 | 1 | RING |
| 7 | 851902 | 1 | PACKING;U-RING |
| 8 | 725806 | 1 | RING;BACK-UP |
| 9 | 725807 | 1 | RING;SLIDE |
| 10 | 851903 | 1 | RING;WIPER |
| 11 | 851904 | 1 | O-RING |
| 12 | 725810 | 1 | RING;BACK-UP |
| 13 | 317212 | 17 | BOLT;SOCKET |
| 14 | 725811 | 1 | BRG.;CUSHION |
| 15 | 725812 | 1 | PISTON |
| 16 | 725813 | 1 | RING;SEAL |
| 17 | 725814 | 2 | RING;SLIDE |
| 18 | 725815 | 2 | RING;SLIDE |
| 19 | 851905 | 1 | O-RING |
| 20 | 400207 | 2 | RING;BACK-UP |
| 21 | 725816 | 1 | NUT |
| 22 | 725613 | 1 | SCREW;SET |
| 23 | 436405 | 1 | BALL;STEEL |
| 26 | 725817 | 1 | PIPE |
| 27 | 4113161 | 3 | O-RING |
| 28 | 317226 | 8 | BOLT;SOCKET |
| 29 | 317227 | 3 | PLUG |
| 30 | Z971980 | 3 | O-RING |
| 31 | 725818 | 1 | JOINT |
| 32 | 415511 | 1 | PLATE |
| 33 | 415512 | 4 | BOLT |
| 34 | 4061792 | 6 | WASHER;SPRING |
| 35 | 317719 | 1 | JOINT |
| 36 | 415510 | 4 | BOLT |
| 37 | 725819 | 2 | BAND |
| 38 | 725820 | 2 | BAND |
| 39 | 415403 | 4 | BOLT |
| 40 | 259112 | 10 | WASHER;SPRING |
| 41 | 454815 | 4 | NUT |
| 42 | 317325 | 3 | CLAMP;PIPE |
| 43 | 415405 | 6 | BOLT |
| 44 | 725821 | 1 | PLATE |
| 45 | 415514 | 2 | NUT |
| 46 | 415516 | 2 | BOLT |
| 47 | 643016 | 3 | BLEEDER;AIR |
| 100 | 4670545 | 1 | KIT;SEAL |
3. Our advantages
4. FAQ
Q1.Why is your picture inconsistent with the title?
A1. The pictures you saw here may not be related to the part no.. Please contact us if you want to see more details.
Q2.Why can't I find what I need on your website?
A2.Contact us directly and we will help you save your valuable time.
Q3.Can you quote for only one part number?
A3.Why not?We can check by a part no.or machine no.or size or picture.
Q4.How can I contact you ?
A4.My wechat /Whatsapp no. +86 13533728134,+86 13650826584 ,E-mail:vivianwenwen8@gmail.com
5.Exhibition & Warehous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
