Home > Products > Piston Seal Rings > 04070-00105 0407000105 SNAP RING FITS FOR D65PX-15E0 D65PX-12-E

04070-00105 0407000105 SNAP RING FITS FOR D65PX-15E0 D65PX-12-E

Name: 04070-00105 0407000105 SNAP RING FITS FOR D65PX-15E0 D65PX-12-E
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: D475A-3
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: D475A-3

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                D65PX snap ring replacement, Piston seal ring for D65PX-15E0, 04070-00105 snap ring with warranty


Part No.::	04070-00105	Part Name::	RING
Model:	D375A-5	Machine:	Crawler Loader
Material:	Carbon Spring Steel	Color:	BLACK
Install Parts:	TORQUE CONVERTER

Part No.::	04070-00105
Part Name::	RING
Model:	D375A-5
Machine:	Crawler Loader
Material:	Carbon Spring Steel
Color:	BLACK
Install Parts:	TORQUE CONVERTER

Product Description

1. Quick Details of seal 04070-00105:

Part NO.	04070-00105
Machine	Crawler Loader
Size	OEM
Material	Rubber ,Oil seal
Type	RING

2. 040-70-00105 parts on group :

04070-00105 0407000105 SNAP RING FITS FOR D65PX-15E0 D65PX-12-E 0

NO.	PART NO.	PRAT NAME	QTY
2	14X-22-00020	BRAKE ASSEMBLY	2
1	14X-22-24110	HUB	1
2	14Y-22-14180	RING,SNAP	1
3	07000-72018	O-RING	1
4	01643-31232	WASHER	18
5	01010-81235	BOLT	18
6	06030-06921	BEARING	1
7	04070-00105	RING	1
8	14Y-22-23110	DRUM	1
9	07000-05370	O-RING	2
10	14Y-22-23140	DISC	5
11	14Y-22-23150	PLATE	4
12	14Y-22-23160	SPRING	5
13	14X-22-24130	CAGE	1
14	232-15-19270	RING	1
15	14Y-22-23310	SEAL RING	1
16	14X-22-23270	SEAL RING	3
17	14Y-22-23130	PISTON	1
18	14Y-22-23170	SPRING	14
19	14Y-22-23180	SPRING	14
20	07000-72018	O-RING	2
21	14Y-22-25120	COVER	1
22	07043-70312	PLUG	4
23	07000-73022	O-RING	4
24	06030-06215	BEARING	1
25	01643-31232	WASHER	4
26	01252-71250	BOLT	4
27	14X-21-13130	BUSHING	1
28	14X-21-13240	COLLAR	1
29	07000-75180	O-RING	1
30	14Y-21-23150	FLANGE	1
31	01643-31232	WASHER	6
32	01011-81205	BOLT	6
33	17A-15-22190	SPACER	1
34	04064-07525	RING	1

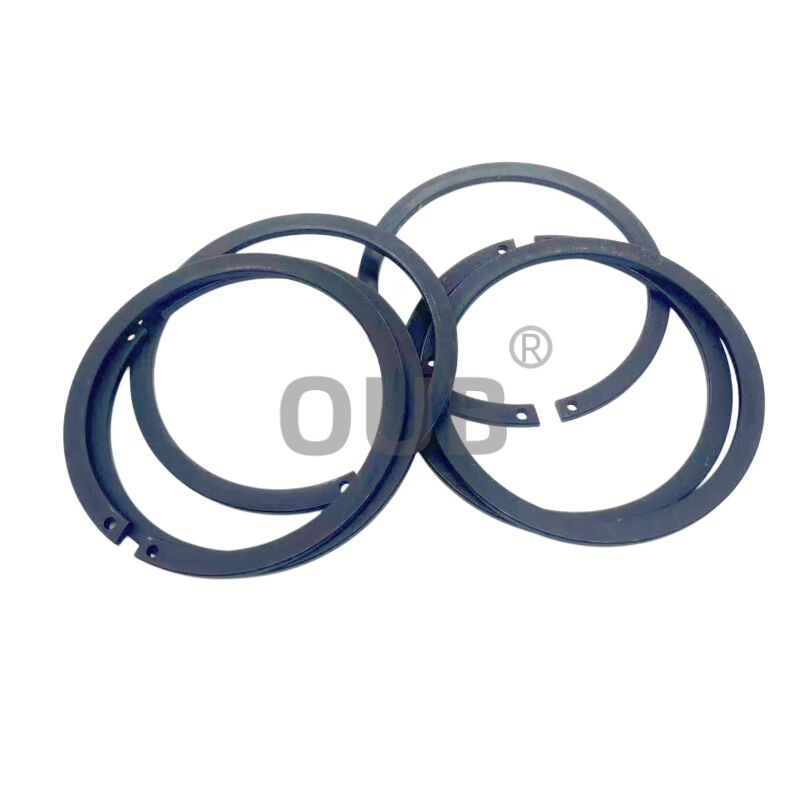

3. 04070-00105 picture:

04070-00105 0407000105 SNAP RING FITS FOR D65PX-15E0 D65PX-12-E 1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-59680	707-51-10110	707-98-54500
707-99-59690	707-35-91050	707-44-85180
707-99-59740	707-35-91060	707-44-10150
707-99-62010	707-35-91100	707-51-14640
707-99-62020	707-35-91130	707-51-14850
707-99-62120	707-35-91140	707-51-14650
707-99-64010	707-35-91200	56B-50-34650
707-99-64030	707-35-91220	707-51-16650
707-99-64040	707-35-91250	707-51-16630
707-99-64050	707-35-91311	707-51-16640
707-99-64080	707-35-91320	707-51-16850
707-99-64120	707-35-91440	707-51-17630
707-99-64130	707-35-91550	707-51-17640
707-99-64150	707-35-91610	707-51-18640
707-99-77220	707-35-91630	707-51-19640

5. FAQ

Q: How do I install this split seal ring correctly?

A: Gently expand the split ring (do not overstretch it), align the split gap properly, and seat it evenly into the piston or gland groove. If multiple rings are used, stagger their gaps to prevent fluid bypass.

Q: What common mistakes cause this seal to fail?

A: Overstretching the ring during installation, misaligning the split gap, using a ring with the wrong groove dimensions, and installing damaged or contaminated rings are the most common causes of early failure.

Q: What is the snap ring material?

A: The vast majority of Koma snap rings (like those found in your drivetrain, final drives, and hydraulic pumps) are made of high-grade Carbon Spring Steel (typically SAE 1060 to 1090).Because they are designed to snap open or closed and then "spring" back to lock heavy gears, bearings, and shafts tightly in place under massive force, so material is very important, they are made from High-Carbon Spring Steel.

.
Q: Can I reuse this split seal ring after disassembly?

A: It is not recommended. The split ring can lose its tension and dimensional stability once removed from the groove, and even minor deformation can lead to leaks or reduced performance. Always use a new ring during reassembly.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
