Excavator O Ring Seals
, D155AX-6 seal parts
, HD405-8 excavator seals
1. Quick Details of seal 07000-75465 :
| Part NO. |
07000-75465 |
| Machine |
Crawler Dozer |
| Size |
5.7 mm thickness |
| Material |
SILICON |
| Oil seal type |
O-RING |
2. 07000-75465 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
17A-22-41000 |
Steering Assembly |
1 |
| 2 |
17A-22-00091 |
Brake Assembly |
2 |
| 3 |
17A-22-12111 |
Hub |
1 |
| 4 |
17A-22-18121 |
Spacer |
1 |
| 5 |
04065-07225 |
Ring, Snap |
1 |
| 6 |
17A-22-12251 |
Bushing |
1 |
| 7 |
17A-22-41180 |
Drum |
1 |
| 8 |
07000-75465 |
O-ring |
1 |
| 9 |
07000-75490 |
O-ring |
1 |
| 10 |
07000-73025 |
O-ring |
3 |
| 11 |
17A-22-11170 |
Disc |
6 |
| 12 |
17A-22-12120 |
Plate |
5 |
| 13 |
17A-22-12130 |
Spring |
6 |
| 14 |
17A-22-12162 |
Cylinder |
1 |
| 15 |
113-15-12840 |
Seal Ring |
1 |
| 16 |
103-15-29210 |
Seal Ring |
1 |
| 17 |
07000-72018 |
O-ring |
4 |
| 18 |
07000-72021 |
O-ring |
1 |
| 19 |
569-15-39620 |
Bearing |
2 |
| 20 |
17A-22-12190 |
Spacer |
1 |
| 21 |
17A-22-12150 |
Piston |
1 |
| 22 |
17M-22-43430 |
Spring Assembly |
1 |

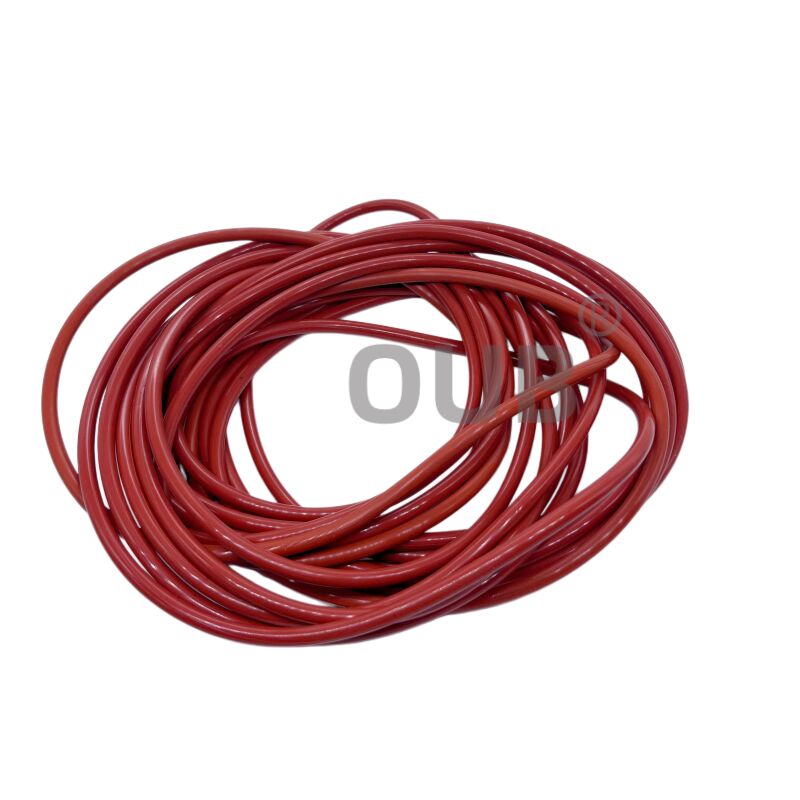

3.07000-75465 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-35-91060 |
707-51-45640 |
707-51-70110 |
| 707-35-91100 |
707-44-85180 |
707-51-14080 |
| 707-35-91130 |
707-44-10150 |
707-51-14110 |
| 707-35-91140 |
707-44-85150 |
707-51-14130 |
| 707-35-91200 |
707-44-90070 |
707-51-16030 |
| 707-35-91220 |
707-44-90080 |
707-98-27100 |
| 707-35-91250 |
707-44-90180 |
707-51-16130 |
| 707-35-91311 |
707-44-90150 |
707-51-17030 |
| 707-35-91320 |
707-44-95180 |
707-51-17130 |
| 707-35-91440 |
707-44-95150 |
707-51-18030 |
| 707-35-91550 |
707-44-10080 |
707-51-18130 |
| 707-35-91610 |
707-44-10180 |
707-51-19030 |
| 707-35-91630 |
707-44-10250 |
707-44-10250 |
| 707-35-52900 |
707-44-11250 |
707-44-10280 |
5. FAQ
Q: Why are the large O-rings in Komatsu's brake assemblies made of silicone, while the boom cylinders typically use black NBR material?
A: You've noticed a very specific and deliberate engineering detail. In Komatsu heavy equipment (like wheel loaders, dump trucks, or excavators), you will routinely find a large silicone (VMQ) O-ring on the brake assembly, while standard hydraulic or steering cylinders stick to black NBR (Nitrile/Buna-N).Komatsu engineers mix these materials because brakes and standard hydraulic cylinders face completely different operational physics.The Brake Assembly: Surviving Extreme Friction & HeatThe large O-ring in a Komatsu wet disc brake assembly is usually a bright color (like orange or red) and made of silicone because its primary threat is thermal degradation (extreme heat).Friction Generation: When a heavy Komatsu machine brakes, massive amounts of kinetic energy are converted into heat. Even though these are "wet" brakes cooled by oil, the localized temperatures right next to the brake discs can briefly spike past 150 °C to 200 °C,The Silicone Advantage: Silicone can easily withstand continuous temperatures up to 200°C and short spikes even higher without losing its elasticity. Why NBR Fails Here: Standard NBR degrades rapidly if it stays above 120°C. It bakes, becomes brittle, cracks, and causes catastrophic brake fluid pressure loss.Low Compression Set: Silicone maintains its shape ("memory") under constant squeeze at high temperatures, ensuring the large piston seals don't weep oil over thousands of hours.
Q: What are the key properties of silicone rubber for this seal?
A: Silicone offers excellent heat resistance (operating range roughly -60°C to +200°C), great flexibility even at low temperatures, and strong resistance to ozone, weathering, and aging. It works well with hot air, steam, and non-polar fluids, though it is not recommended for use with most mineral oils or fuels.
Q: How do I install this O-ring correctly?
A: Start by thoroughly cleaning the O-ring groove and mating surfaces to remove dirt, burrs, or old seal residue. Lightly lubricate the O-ring with a compatible fluid or grease to ease installation. Carefully fit the seal into the groove, making sure it does not twist, overstretch, or get pinched. When assembling components, use proper tools to avoid damaging the seal edges.
Q: What common issues cause O-ring failure?
A: Common causes include improper installation (twisting, pinching, or overstretching), chemical incompatibility with the fluid, excessive heat or cold leading to hardening or brittleness, surface scratches on mating parts, and using the wrong size or durometer.
