07018-30904 0701830904 High Quality Construction machinery parts o ring seals

1. Quick Details of  seal 07018-30904:

2. 07018-30904 parts on group :

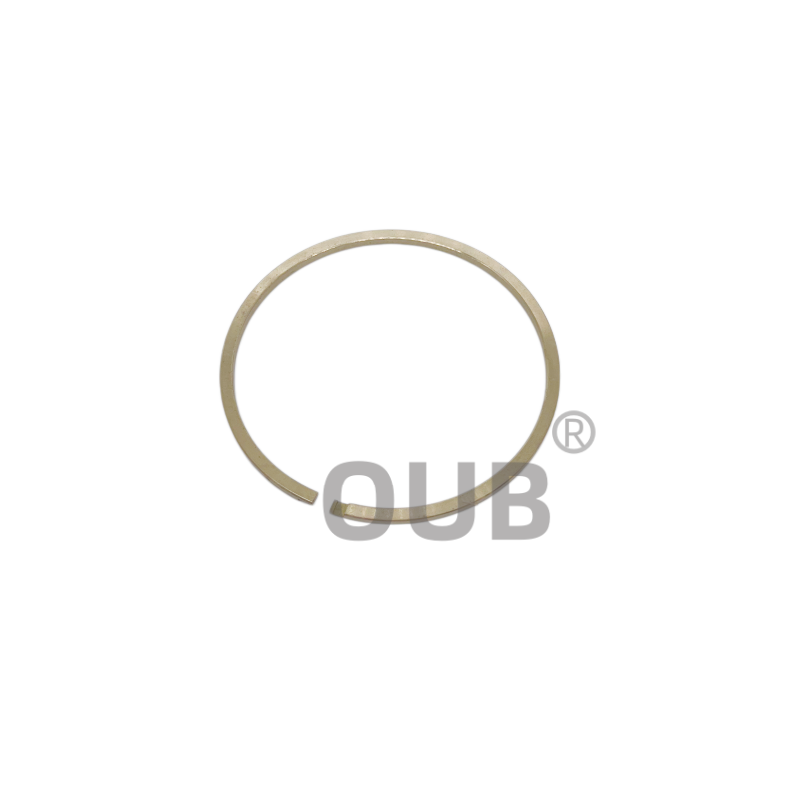

3. 07018-30904  picture:

4. Service part number :

5. FAQ

Q: How do I install this piston seal ring correctly?
A: Start by cleaning the piston and the wear ring groove thoroughly to remove all dirt or debris. Inspect the groove for scratches, burrs, or damage that could affect fit. Lightly lubricate the ring and groove with clean hydraulic oil. Carefully expand the split ring just enough to fit over the piston, then seat it evenly into the groove, making sure the split gap is aligned properly and not overlapping. When inserting the piston into the cylinder bore, use a tapered assembly sleeve to protect the ring from catching on the bore edge and causing damage.

Q: What common mistakes lead to early failure?
A: Poor cleaning leaves grit that abrades the ring and bore. Overstretching the ring during installation can cause permanent deformation. Installing the ring twisted or misaligned in the groove leads to uneven wear. Skipping the assembly sleeve can damage the ring’s edges as the piston enters the bore.

Q: How long does this piston seal ring typically last?
A: With clean hydraulic fluid, proper alignment, and correct installation, a bronze wear ring can last 5,000–10,000 operating hours. Contaminated oil or excessive side loads will significantly shorten its lifespan.

Q: How do I install this piston seal ring correctly?

A: Expand the split ring carefully by hand or with a proper ring expander to avoid overstretching, slide it into the piston groove, ensure it sits flat without twisting, then stagger the ring gaps if multiple rings are used before assembling the piston into the cylinder.

Q: What common issues lead to bronze seal ring failure?

A: Common causes include poor lubrication, contaminated hydraulic fluid causing abrasion, excessive side loads, misalignment of the piston, and overstretching or damaging the ring during installation.

Q: How long does a bronze piston seal ring typically last?

A: Under normal operating conditions with clean fluid and proper alignment, a high-quality bronze ring can last 5,000–10,000 operating hours, depending on load and cycle rate.

6. Exhibition and Wearhous
