Home > Products > Gasket Kit > 144-15-21270 1441521270 SHIM ,1.0mm, D65E-12 D65A-11

144-15-21270 1441521270 SHIM ,1.0mm, D65E-12 D65A-11

Name: 144-15-21270 1441521270 SHIM ,1.0mm, D65E-12 D65A-11
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 144-15-21270
Price: 34.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 144-15-21270

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                Engine Oil Cooler Gasket Kit, D65E-12 Oil Cooler Seal, D65A-11 Engine Cooler Gasket


Part No.::	144-15-21270	Model:	D65A-6
Part Name::	SHIM	Fits For:	TORQUECONVERTER
Machine:	Bulldozers	Material:	High-grade Spring Steel
Color:	GREY

Part No.::	144-15-21270
Model:	D65A-6
Part Name::	SHIM
Fits For:	TORQUECONVERTER
Machine:	Bulldozers
Material:	High-grade Spring Steel
Color:	GREY

Product Description

1. Quick Details of seal 144-15-21270:

Part NO.	144-15-21270
Machine	Bulldozers
Size	OEM
Material	High-grade spring steel
Part type	SHIM

2. 144-15-21270 parts on group :

144-15-21270 1441521270 SHIM ,1.0mm, D65E-12 D65A-11 0

NO.	PART NO.	PRAT NAME	QTY
1	144-15-00014	TRANSMISSION ASSEMBLY	1
1	144-15-00015	TRANSMISSION ASSEMBLY	1
1	145-15-00230	REAR COVER ASSEMBLY	1
2	07043-00211	PLUG	2
3	07043-00108	PLUG	1
4	04530-02030	BOLT	1
5	04020-01434	PIN	1
6	144-15-21120	GASKET (KIT)	1
7	01010-31240	BOLT	12
8	01602-01236	WASHER	12
9	144-822-1220	CAGE	1
10	144-822-1230	COVER	1
11	07000-65160	O-RING (KIT)	2
11	144-15-06011	SHIM KIT (KIT)	1
12	144-15-21260	SHIM, 0.2MM	8
13	144-15-21270	SHIM, 1.0MM	2
14	144-15-21280	SHIM, 0.3MM	6
15	07012-20090	SEAL (KIT)	1
16	144-15-22810	BEARING	1
17	135-15-11634	NUT	1
18	145-15-31331	PIN	1
19	145-15-31340	RING	1
20	01010-30610	BOLT	4
21	145-15-31350	LOCK (KIT)	2
22	01010-31460	BOLT	4
23	01602-01442	WASHER	4
24	04020-01638	PIN	1
25	07000-05445	O-RING (KIT)	1
26	01010-31845	BOLT	8
27	01643-31845	WASHER	8

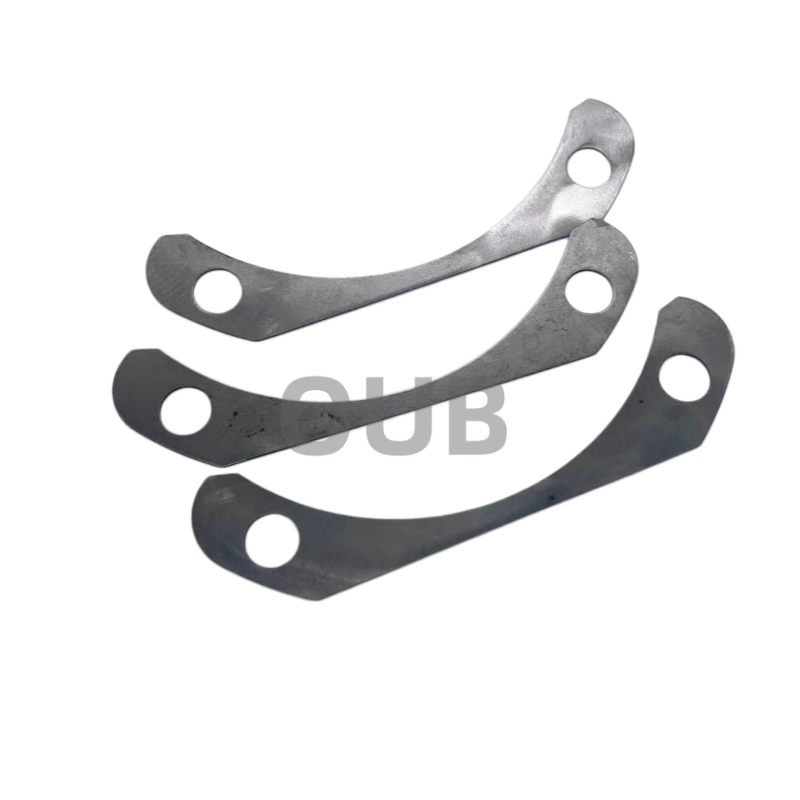

3. 144-15-21270 picture:

144-15-21270 1441521270 SHIM ,1.0mm, D65E-12 D65A-11 1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-35-52670	707-51-45640	707-99-75600
707-51-45640	707-51-11640	707-51-80640
707-51-50640	707-99-43690	707-98-36600
707-44-90080	707-51-12630	707-51-80030
707-51-11110	707-98-27100	707-98-25970
707-51-11860	707-51-16130	707-98-25980
56D-50-13170	707-51-17030	707-98-26070
56D-50-13171	707-51-17130	707-98-26100
707-51-11050	707-51-18030	707-98-26110
707-51-11890	707-51-18130	707-98-26120
707-51-12030	707-51-19030	707-98-26200
707-35-52830	707-51-80211	56D-50-13170
707-35-52860	707-51-85130	56D-50-13171
707-51-70650	707-51-85030	707-51-11050
707-99-77240	707-98-61100	707-35-52700

5. FAQ

Q: why the shim 144-15-21270 need different thickness ?

A: In heavy machinery like komtu equipment (where part numbers format like 144-15-21270), shims are manufactured in varying thicknesses because they act as precise, customizable spacers. Their main purpose is to account for tiny variations in metal components and to set exact mechanical tolerances during assembly or repair. Different thicknesses are required for several key reasons:

Compensating for Manufacturing TolerancesEven with high-precision manufacturing, no two heavy steel castings, housings, or shafts are 100% identical. One transmission cover might sit a fraction of a millimeter deeper than another. Offering the shim in different thicknesses allows the mechanic to select the exact combination needed to square up the components perfectly without needing custom-machined parts.
Setting Axial Play and BacklashIn components like transmissions, final drives, or bearing cages, you must maintain a highly specific amount of "axial play" (end-play) or gear backlash.Too tight (no shim/thin shim): It causes excessive friction, overheating, and rapid bearing failure.Too loose (thick shim): It causes vibration, misalignment, and gear teeth to chip or wear unevenly.By stacking or swapping different shim thicknesses, a technician can achieve the exact specified gap (e.g., 0.15 mm).
Adjusting for Wear and Tear over TimeAs heavy equipment operates under extreme stress, metal naturally wears down, expanding the gaps between moving assemblies. During a rebuild or maintenance interval, the original thin shim might leave too much "slop" or play in the assembly. A technician will measure the new gap and install a thicker shim (or a different combination) to bring the assembly back to original factory specifications.Standard PracticeTypically, parts ending in a standard sequence like this will belong to a shim kit or an engineering set where you can order specific variants (e.g.,0.1mm, 0.3mm,0.5mm). Technicians use a micrometer or feeler gauge to measure the existing gap, then choose the precise thickness required to fill the void.

Q: What happens if it’s not used or installed incorrectly?
A: Without the lock plate, bolts can vibrate loose over time, leading to component failure, leaks, or catastrophic damage to the powertrain. Improperly bent tabs will fail to lock, offering no protection.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
