Home > Products > Gasket Kit > 56B-15-29220 56B1529220 Seal Ring of HM400-3M0 HM400-2

56B-15-29220 56B1529220 Seal Ring of HM400-3M0 HM400-2

Name: 56B-15-29220 56B1529220 Seal Ring of HM400-3M0 HM400-2
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 56B-15-29220
Price: 34.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 56B-15-29220

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HM400-3M0 seal ring gasket, HM400-2 seal ring replacement, 56B1529220 gasket kit part


Part No.::	56B-15-29220	Part Name::	GASKET
Machine:	Bulldozer	Material:	Non-asbestos Fiber Composite
Color:	BLACK	Model:	HM400-3R

Part No.::	56B-15-29220
Part Name::	GASKET
Machine:	Bulldozer
Material:	Non-asbestos Fiber Composite
Color:	BLACK
Model:	HM400-3R

Product Description

1. Quick Details of seal 56B-15-29220:

Part NO.	56B-15-29220
Machine	Bulldozer
Size	OEM
Material	Non-asbestos fiber composite
Parts type	GASKET

2. 56B-15-29220 parts on group :

56B-15-29220 56B1529220 Seal Ring of HM400-3M0 HM400-2

NO.	PART NO.	PRAT NAME	QTY
1	56B-15-22110	Shaft and Cylinder Assembly	1
1	56D-15-29790	Plug	3
2	56B-15-12630	Piston	2
3	714-07-12670	Disc	22
4	714-07-12680	Plate, Separate	24
5	714-07-12781	Spring, Wave	22
6	714-07-12711	Plate, End	1
7	56B-15-32710	Plate, End	1
8	714-07-12720	Ring, Snap	2
9	714-16-19210	Seal Ring, (Kit : K03)	2
10	714-16-19230	Seal Ring, (Kit : K03)	2
11	56B-15-19520	Washer, Thrust	3
12	56B-15-19530	Washer, Thrust	1
13	56B-15-19430	Bearing, Needle	2
14	56B-15-19440	Bearing, Needle	2
15	56B-15-12930	Spacer	1
16	56B-15-12414	Gear, Forward Low	1
17	56B-15-32420	Gear, Reverse	1
18	56B-15-32530	Gear, Input	1
19	56B-15-12960	Spacer	1
20	714-07-19340	Bearing, Roller	2
21	56B-15-29220	Seal Ring, (Kit : K03)	2
22	714-21-19810	Seal Ring, (Kit : K03)	2
23	56D-15-19250	Seal Ring, (Kit : K03)	3

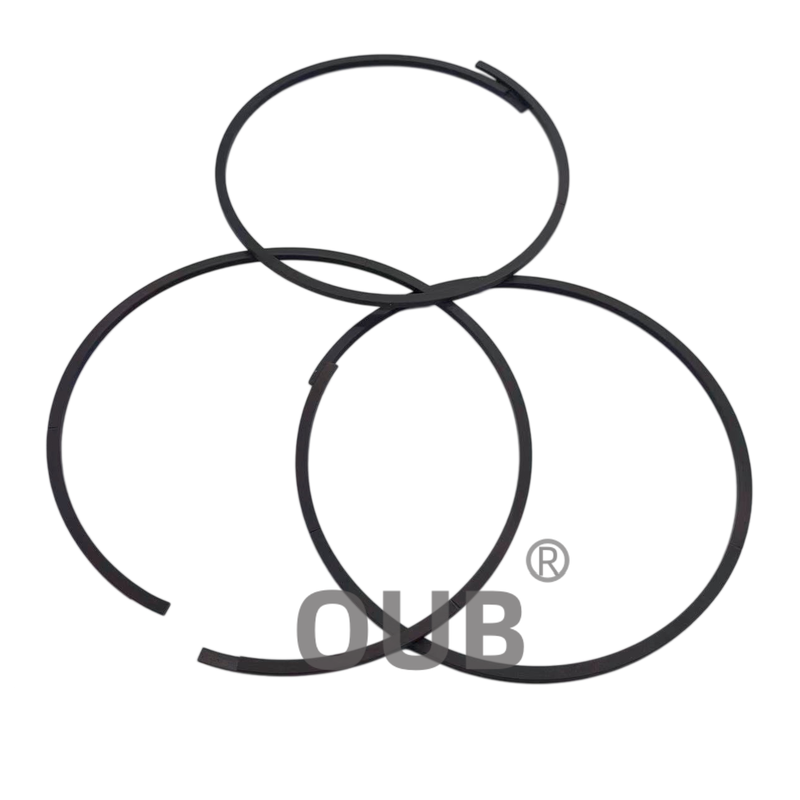

3. 56B-15-29220 picture:

56B-15-29220 56B1529220 Seal Ring of HM400-3M0 HM400-2
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-98-26820	707-98-39611	707-98-67100
707-98-26900	707-98-38551	707-98-64420
707-99-64150	707-99-77250	707-51-65650
707-99-64152	707-99-77300	707-51-70630
707-99-64180	707-99-77380	707-51-70650
707-98-26570	707-98-38510	707-98-38520

5. FAQ

Q: Which heavy construction machine can part number 56B-15-29220 match?
A: The part number 56B-15-29220 is a gasket designed for bulldozer torque converter housing mating surface.

Q: What product category does part 56B-15-29220 belong to?
A: Part 56B-15-29220 falls into gasket category, a static flat sealing spare part for power system housings.

Q: What material makes up this gasket?
A: It is made of non-asbestos fiber composite with good oil resistance and stable compression performance.

Q: What core function does this gasket perform?
A: It fills the clearance between torque converter housing joints to avoid transmission fluid leakage.

Q: Where is this gasket installed on the bulldozer?
A: It is clamped between the connecting flange of torque converter housing and adjacent assembly.

Q: What key performance features does this gasket have?
A: It can withstand continuous mechanical vibration and will not easily expand when contacting transmission oil.

Q: What precautions should we follow during installation?
A: Remove old gasket residue completely and tighten bolts evenly to prevent uneven compression damage.

Q: What problems will happen once this gasket is damaged?
A: Fluid seepage will appear at the joint, reducing lubrication and affecting the torque converter operation.
