Home > Products > Gasket Kit > 56B-15-27850 56B1527850 RING,SEAL (K1) OF HM350-2 HM400-2

56B-15-27850 56B1527850 RING,SEAL (K1) OF HM350-2 HM400-2

Name: 56B-15-27850 56B1527850 RING,SEAL (K1) OF HM350-2 HM400-2
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 56B-15-27850
Price: 34.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 56B-15-27850

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HM350-2 seal ring gasket, HM400-2 sealing ring kit, 56B-15-27850 K1 gasket


Part No.::	56B-15-27850	Part Name::	GASKET
Machine:	Bulldozer	Material:	Non-asbestos Fiber Sheet With Metal Insert
Color:	BLACK	Model:	HM350-2

Part No.::	56B-15-27850
Part Name::	GASKET
Machine:	Bulldozer
Material:	Non-asbestos Fiber Sheet With Metal Insert
Color:	BLACK
Model:	HM350-2

Product Description

1. Quick Details of seal 56B-15-27850:

Part NO.	56B-15-27850
Machine	Bulldozer
Size	OEM
Material	Non-asbestos fiber sheet with metal insert
Parts type	GASKET

2. 56B-15-27850 parts on group :

56B-15-27850 56B1527850 RING,SEAL (K1) OF HM350-2 HM400-2

NO.	PART NO.	PRAT NAME	QTY
1	56B-15-14112	Coupling	1
2	56B-15-19110	Seal, Dust, (Kit : K01)	1
3	07012-50120	Seal, Oil, (Kit : K01)	1
4	56B-15-13261	Holder	1
5	01051-52420	Bolt	1
6	01643-32460	Washer	1
7	07000-75090	O-ring, (Kit : K01)	1
8	56B-15-17121	Cage	1
9	01010-81235	Bolt	6
10	01643-31232	Washer	6
11	712-86-00031	Shim Assembly, (Kit : K01)	1
11	712-86-12220	Shim, T=0.50mm	10
11	712-86-12230	Shim, T=0.20mm	4
11	712-86-12240	Shim, T=0.15mm	4
12	07000-75240	O-ring, (Kit : K01)	1
13	56B-15-12140	Sleeve	1
14	56B-15-37110	Cage	1
15	07043-70211	Plug	3
16	01252-A0860	Bolt, Hexagon Socket Head	4
16	01252-70860	Bolt, Hexagon Socket Head	4
17	01643-50823	Washer	4
18	01010-81235	Bolt	10
19	01643-31232	Washer	10
20	07000-75230	O-ring, (Kit : K01)	1
21	06340-06018	Bearing	1
22	04071-00140	Ring, Snap	1
23	56B-15-17960	Spacer	1
24	04064-09030	Ring, Snap	1
25	04064-07525	Ring, Snap, for Shaft Side	1
26	56B-15-29230	Seal Ring, (Kit : K01)	2
27	56B-15-27850	Seal Ring, (Kit : K01)	2
28	56B-15-37911	Shroud	1
28	56B-15-17911	Shroud	1
29	01010-81020	Bolt	5
30	01643-31032	Washer	5

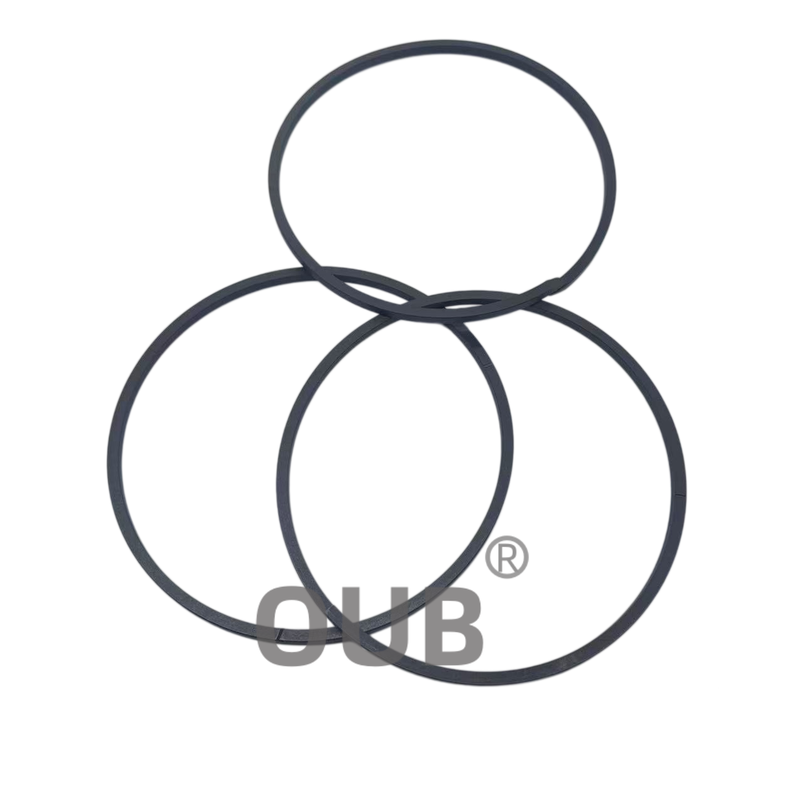

3. 56B-15-27850 picture:

56B-15-27850 56B1527850 RING,SEAL (K1) OF HM350-2 HM400-2
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-98-26820	707-98-39611	707-98-67100
707-98-26900	707-98-38551	707-98-64420
707-98-26540	707-35-99500	707-51-65650
707-98-26550	707-35-99510	707-51-70630
707-98-26560	707-35-99600	707-51-70650

5. FAQ

Q: What type of heavy equipment does part number 56B-15-27850 fit for?
A: The part number 56B-15-27850 is a gasket engineered for bulldozer transmission housing connection.

Q: What product group is part 56B-15-27850 sorted into?
A: Part 56B-15-27850 belongs to gasket category, serving as static sealing component for split housing surfaces.

Q: What material is used to fabricate this gasket?
A: It adopts non-asbestos fiber sheet embedded with metal insert, offering reliable compression and tear resistance.

Q: What is the primary purpose of this gasket?
A: It seals the gap between two split transmission housing halves to prevent transmission oil leakage.

Q: Where is this gasket mounted on the bulldozer?
A: It is sandwiched between the upper and lower mating flanges of the transmission housing assembly.

Q: What outstanding properties does this gasket possess?
A: It maintains stable resilience under vibration and resists swelling when exposed to transmission oil.

Q: Is it allowed to reuse this gasket once disassembled?
A: It is not recommended for reuse, as the fiber structure will deform after the first compression.

Q: What troubles will occur if this gasket fails in service?
A: Transmission oil will leak out from the housing seam, which may lead to insufficient lubrication for gears.

6. Exhibition and Wearhous
