Highlight:
1. Quick Details of seal XKAY-00278:
| Part NO. |
XKAY-00278 |
| Machine |
Excavator |
| Size |
OEM |
| Material |
Modified PTFE |
| Oil seal type |
SERVICE KIT,TRAVEL |
2. XKAY-00278 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
31N8--40050 |
TRACK MOTOR |
1 |
| 2 |
31N8-40051 |
TRACK MOTOR |
1 |
| 3 |
31N8-40051BG |
TRACK MOTOR |
1 |
| 4 |
31N8-40053 |
TRACK MOTOR |
1 |
| 5 |
31N8-40054 |
TRACK MOTOR |
1 |
| 6 |
31N8-40055 |
TRAVEL UNIT |
1 |
| 7 |
31N8-40060 |
TRACK MOTOR UNIT |
1 |
| 8 |
31N8-40061 |
TRACK MOTOR UNIT |
1 |
| 9 |
31N8-40061BG |
TRACK MOTOR UNIT |
1 |
| 10 |
31N8-40062 |
TRACK MOTOR UNIT |
1 |
| 11 |
31N8-40063 |
TRACK MOTOR UNIT |
1 |
| 12 |
XKAY-00197 |
CASING-SHAFT |
1 |
| 13 |
XKAY-00962 |
CASING-SHAFT |
1 |
| 14 |
XKAY-02052 |
CASING-SHAFT |
1 |
| 15 |
XKAY-00198 |
PLUG |
12 |
| 16 |
XKAY-00199 |
SCREW-ORIFICE |
2 |
| 17 |
XKAY-00200 |
SCREW-ORIFICE |
1 |
| 18 |
XKAY-00199 |
SCREW-ORIFICE |
1 |
| 19 |
XKAY-00201 |
PIN-SUPPORT |
2 |
| 20 |
XKAY-00202 |
PIN-BRAKE |
4 |
| 21 |
XKAY-00203 |
STOPPER(S) |
1 |
| 22 |
XKAY-00204 |
O-RING |
4 |
| 23 |
XKAY-00205 |
RING-BACK UP |
3 |
| 24 |
XKAY-00206 |
PISTON-SWASH |
1 |
| 25 |
XKAY-00207 |
SHAFT |
1 |
| 26 |
XKAY-00208 |
SPACER-BEARING |
1 |
| 27 |
XKAY-00209 |
BEARING-ROLLER |
1 |
| 28 |
XKAY-00210 |
RING-STOP |
1 |
| 29 |
XKAY-00211 |
SUPPORT KIT |
1 |
| 30 |
XKAY-01070 |
SUPPORT KIT |
1 |
| 31 |
XKAY-00212 |
SUPPORT |
1 |
| 32 |
XKAY-00213 |
PLATE-SWASH |
1 |
| 33 |
XKAY-00214 |
PISTON-SWASH |
1 |
| 34 |
XKAY-00215 |
STOPPER(L) |
1 |
| 35 |
XKAY-00216 |
O-RING |
1 |
| 36 |
XKAY-00217 |
RING-BACK UP |
2 |
| 37 |
XKAY-00218 |
ROTARY KIT |
1 |
| 38 |
XKAY-01510 |
ROTARY KIT |
1 |
| 39 |
XKAY-00219 |
CYLINDER BLOCK KIT |
1 |
| 40 |
XKAY-01509 |
CYLINDER BLOCK KIT |
1 |
| 41 |
XKAY-00220 |
BLOCK-CYLINDER |
1 |
| 42 |
XKAY-01504 |
BLOCK-CYLINDER |
1 |
| 43 |
XKAY-00221 |
SPRING-CYLINDER |
9 |
| 44 |
XKAY-00222 |
SPACER |
1 |
| 45 |
XKAY-00268 |
PLATE-VALVE |
1 |
| 46 |
XKAY-01505 |
PLATE-VALVE |
1 |
| 47 |
XKAY-00223 |
RETAINER KIT |
1 |
| 48 |
XKAY-00224 |
GUIDE-BALL |
1 |
| 49 |
XKAY-00225 |
SET-PLATE |
1 |
| 50 |
XKAY-00226 |
PISTON KIT |
1 |
| 51 |
XKAY-00227 |
PISTON & SHOE ASSEMBLY |
9 |
| 52 |
XKAY-00228 |
PLATE-FRICTION |
2 |
| 53 |
XKAY-00229 |
PLATE-SEPARATOR |
1 |
| 54 |
XKAY-00230 |
RING-PISTON |
1 |
| 55 |
XKAY-01071 |
BRAKE-PISTON |
1 |
| 56 |
XKAY-00973 |
BRAKE-PISTON |
1 |
| 57 |
XKAY-00231 |
RING-PISTON 252 |
1 |
| 58 |
XKAY-00232 |
RING-PISTON 278 |
1 |
| 59 |
XKAY-00233 |
SPRING-BRAKE |
10 |
| 60 |
XKAY-00234 |
O-RING |
1 |
| 61 |
XKAY-01072 |
CASING-VALVE |
1 |
| 62 |
XKAY-01506 |
CASING-VALVE |
1 |
| 63 |
XKAY-00235 |
BEARING-NEEDLE |
1 |
| 64 |
XKAY-00236 |
O-RING |
1 |
| 65 |
XKAY-00237 |
PIN-VALVE PLATE |
2 |
| 66 |
XKAY-00238 |
SPOOL KIT-C/BLC VALVE |
1 |
| 67 |
XKAY-00239 |
SPOOL-C/BLC VALVE |
1 |
| 68 |
XKAY-00240 |
SCREW-ORIFICE |
2 |
| 69 |
XKAY-00241 |
DAMPING CHECK ASSEMBLY |
2 |
| 70 |
XKAY-00242 |
SPRING-C/BLC VALVE |
2 |
| 71 |
XKAY-00247 |
O-RING |
2 |
| 72 |
XKAY-00244 |
PLUNGER-C/BLC VALVE |
2 |
| 73 |
XKAY-00245 |
SPRING-CHECK |
2 |
| 74 |
XKAY-00246 |
STOPPER-CHECK |
2 |
| 75 |
XKAY-00247 |
O-RING |
4 |
| 76 |
XKAY-00248 |
RING-BACK UP |
4 |
| 77 |
XKAY-00249 |
CAP-C/BLC VALVE(R) |
1 |
| 78 |
XKAY-00250 |
CAP-C/BLC VALVE(L) |
1 |
| 79 |
XKAY-00136 |
BOLT-SOCKET |
8 |
| 80 |
XKAY-00251 |
BOLT-SOCKET |
4 |
| 81 |
XKAY-00252 |
SEAT |
2 |
| 82 |
XKAY-00253 |
BALL-STEEL |
2 |
| 83 |
XKAY-00254 |
STOPPER |
2 |
| 84 |
XKAY-00255 |
PLUG-HP |
7 |
| 85 |
XKAY-00256 |
O-RING |
7 |
| 86 |
XKAY-00257 |
PLUG-HP |
2 |
| 87 |
XKAY-00258 |
VALVE ASSEMBLY-RELIEF |
2 |
| 88 |
XKAY-01073 |
VALVE ASSEMBLY-RELIEF |
2 |
| 89 |
XKAY-00259 |
O-RING |
2 |
| 90 |
XKAY-00260 |
RING-BACK UP |
2 |
| 91 |
XKAY-00261 |
ROD-SWASH |
1 |
| 92 |
XKAY-00262 |
O-RING |
1 |
| 93 |
XKAY-00263 |
SCREW-LOCK |
1 |
| 94 |
XKAY-01074 |
SCREW-LOCK |
1 |
| 95 |
XKAY-00279 |
NUT-HEX |
2 |
| 96 |
XKAY-00265 |
SPOOL-SWASH |
1 |
| 97 |
XKAY-00266 |
PLUG |
1 |
| 98 |
XKAY-00267 |
O-RING |
1 |
| 99 |
XKAY-00269 |
SPRING-SWASH |
1 |
| 100 |
XKAY-00270 |
O-RING |
3 |
| 101 |
XKAY-00271 |
BOLT-WRENCH |
8 |
| 102 |
XKAY-00272 |
BOLT-SOCKET |
4 |
| 103 |
XKAY-00273 |
SCREW-LOCK |
1 |
| 104 |
XKAY-00274 |
SEAL-OIL |
1 |
| 105 |
XKAY-00275 |
RING-LOCK |
1 |
| 106 |
XKAY-02051 |
NAME PLATE |
1 |
| 107 |
XKAY-00277 |
RIVET |
2 |
| 108 |
XKAY-0027 |
SEAL KIT |
1 |
| 109 |
@ |
T/REDUCTION GEAR |
1 |
| 110 |
@ |
NOT SUPPLIED PARTS |
1 |

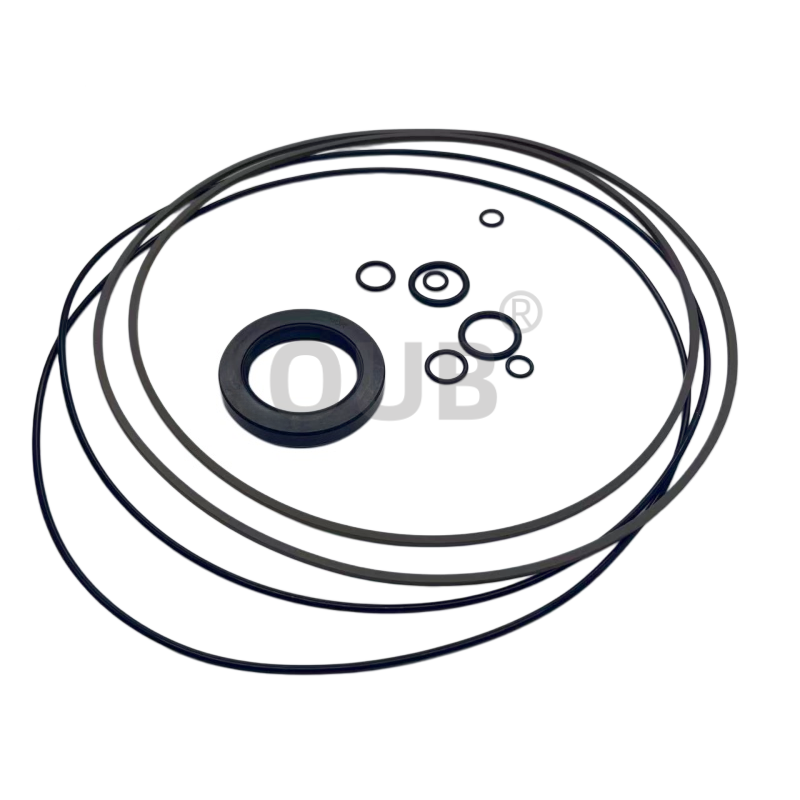

3. XKAY-00278 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| XKAH-00616 |
31Y1-04050 |
39Q6-42120 |
| XKAH-00719 |
31Y1-04051 |
39Q6-42130 |
| XKAH-00824 |
31Y1-04052 |
39Q7-43110 |
| XKAH-00838 |
31Y2-04060 |
39Q7-51120 |
| XKAH-00924 |
31Y2-04061 |
39Q8-44190 |
| XKAH-01054 |
31Y3-04070 |
39Q8-52110 |
| XKAH-01120 |
31Y3-04071 |
39Q9-45170 |
| XKAH-01130 |
31Y4-04080 |
39Q9-62110 |
| XKAH-01140 |
31Y4-04081 |
39Q10-46130 |
| XKAH-01150 |
31Y5-04090 |
39Q5-41180 |
5. FAQ
Q: What are the clear technical parameters of this pump oil seal kit, such as rotation speed limit, pressure bearing range and temperature adaptability? What is the actual service life under different working loads?
A: This pump oil seal kit is customized for high-speed rotary hydraulic pumps of large excavators. The maximum allowable linear rotation speed of the main shaft seal can reach 2.2m/s, fully matching the high-speed operation of the main pump. The sustainable working pressure is 0–360bar, and it can withstand instantaneous peak pressure up to 400bar without extrusion failure. The overall applicable temperature range is -38°C to +145°C, which can adapt to low-temperature construction in northern alpine areas in winter and continuous high-temperature operation in southern high-temperature mines in summer. Under conventional medium-load earthwork construction with 8-hour daily operation, the overall service life of the whole kit can reach 6500–8500 working hours. If it is used in heavy-load mine rock breaking for a long time with continuous full-load operation, the service life can still maintain 3800–4800 working hours, which is far higher than the ordinary single-layer NBR pump oil seal on the market.
Q: What hidden risks will occur if customers choose inferior pump oil seal kits instead of this XKAY-00278 genuine matching kit?
A: Inferior pump oil seal kits mostly use recycled waste rubber and thin iron shells with rough processing, which will bring multiple serious hidden dangers to the hydraulic pump. First, the inferior rubber lip lacks tension spring balance, and it will wear quickly after short-term high-speed rotation, resulting in a large amount of hydraulic oil leakage of the main pump, which not only increases the cost of hydraulic oil consumption, but also pollutes the construction site. Second, the thin metal shell is easy to deform after being squeezed during installation, resulting in loose fit between the seal and the pump housing, and the seal will shift and fail in a short time. Third, inferior rubber has poor temperature resistance, it will soften and swell at high temperature, harden and crack at low temperature, and the broken rubber debris will enter the pump body, scratch the plunger and valve plate inside the main pump, resulting in the overall scrapping of the expensive hydraulic main pump. The maintenance cost of replacing the main pump is dozens of times the price of the seal kit, and long-term equipment shutdown will delay the construction period and cause greater economic losses.
Q: What standardized operation steps and key taboos should be followed when installing this pump oil seal kit to avoid early damage of the new seal?
A: Standardized installation is the core premise to ensure the long service life of the pump oil seal. First, after disassembling the main pump, completely polish and clean the pump shaft surface and the seal installation groove, remove old seal residues, metal burrs and oil dirt, and polish the shaft scratches with fine sandpaper to prevent the sharp shaft surface from cutting the new sealing lip. Second, evenly coat clean unused hydraulic oil on all sealing lips and the outer circle of the metal shell for lubrication; it is strictly forbidden to use calcium-based grease or waste engine oil for lubrication, which will cause rubber swelling and failure. Third, use a special circular installation sleeve to press the main oil seal evenly into the pump housing, do not directly hammer the metal shell with a steel hammer, which will cause shell deformation and lip damage. Fourth, after installing the PTFE backup ring, confirm that it is completely attached to the groove without warping or dislocation, then install the main oil seal with the spring lip facing the oil pressure side. Fifth, after assembly, manually rotate the pump shaft to check whether the rotation is smooth without stuck resistance, and carry out low-pressure test operation for 30 minutes before full-load construction.
6. Exhibition and Wearhous
