175-63-05080 1756305080 CYLINDER KIT,BLADE TILT OF D150A-1 D155A-1

1. Quick Details of  seal 175-63-05080:

2. 175-63-05080 parts on group :

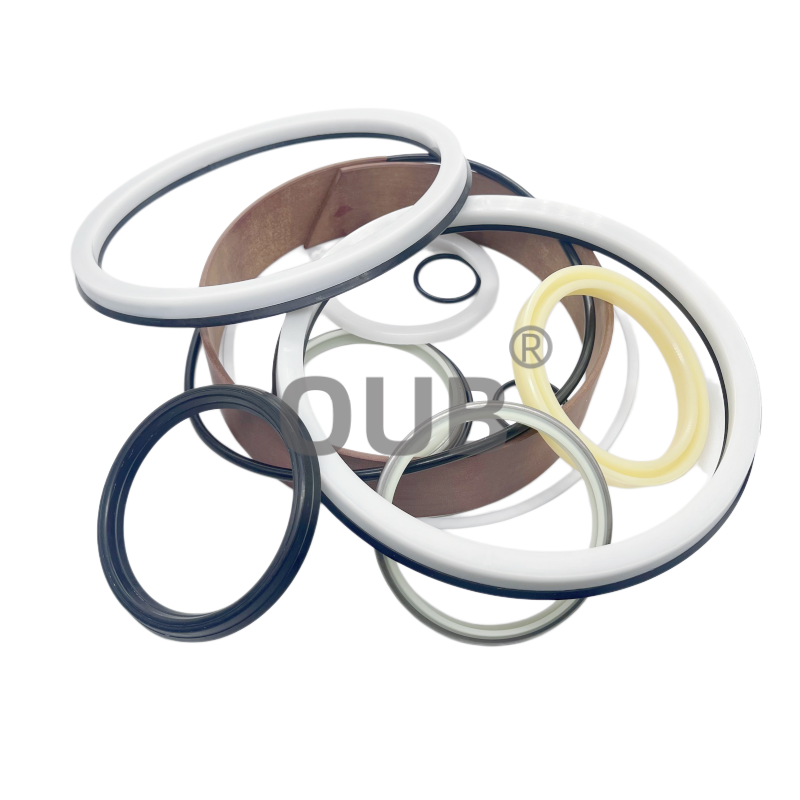

3. 175-63-05080 picture:

4. Service part number :


5. FAQ

Q: What is the function blade cylinder ?

A: The blade cylinder (often referred to as a blade tilt, lift, or angle cylinder) is a hydraulic actuator on heavy equipment—such as bulldozers, motor graders, or tractor attachments—that uses pressurized hydraulic fluid to move and position the blade.Depending on the setup of the machine, blade cylinders serve three main functions:1. Blade Lift & Lower (Height Adjustment)
What it does: Raises or lowers the entire blade assembly vertically.

• Purpose:Digging: Forces the blade down into the ground to cut into soil, rock, or debris.Carrying: Lifts the blade off the ground to transport material across a job site.Transport: Holds the blade high off the ground when moving the machine between locations.

2. Blade Tilt (Angle/Slope Adjustment),What it does: Tilts one side of the blade higher or lower relative to the other side (pitching the blade sideways).

• Purpose:Sloping & Crowning: Creates sloped surfaces, ditches, or crowned roads.Concentrated Cutting Power: Directs all down-pressure to one corner of the blade to break into hard, compacted soil, roots, or rock.Precision Grading: Allows the operator to fine-tune the angle of the terrain.

3. Blade Angle / Pitch (Forward/Backward or Swivel),What it does: Adjusts the attack angle of the blade forward or backward, or swivels it left/right (common on motor graders and angle dozers).

• Purpose:Pitching: Tilting the top of the blade forward helps rolling material off, while tilting it back increases cutting aggressive capacity.

Q: What common hydraulic issues can this seal kit effectively solve and prevent?
A: It avoids internal and external hydraulic oil leakage, and prevents seal lip damage caused by unstable working pressure during pushing work.

Q: What advantages does chestnut fiber reinforced HNBR have compared with conventional rubber materials?
A: It has great compression recovery and anti-abrasion property, adapting well to frequent load changes during bulldozer pushing operations.

Q: Is this set of sealing parts capable of long-term work under alternating heavy hydraulic pressure?
A: Sure. It can withstand continuous pressure fluctuation when pushing soil and stones and will not age rapidly under cyclic heavy loads.

Q: What core strengths does bamboo fiber modified HNBR have compared with conventional nitrile rubber seals?
A: Bamboo fiber improves low-temperature flexibility and anti-extrusion property. Under periodic steering alternating loads, its service life exceeds 2.40 times ordinary NBR sealing spare parts.
