Home > Products > Cylinder Seal Kits > 31Y1-28960 31Y128960 Hyundai HCE SEAL KIT OF R220LC9A, R220NLC9A

31Y1-28960 31Y128960 Hyundai HCE SEAL KIT OF R220LC9A, R220NLC9A

Name: 31Y1-28960 31Y128960 Hyundai HCE SEAL KIT OF R220LC9A, R220NLC9A
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 31Y1-28960
Price: 7.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 31Y1-28960

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Hyundai HCE seal kit R220LC9A, Hyundai HCE seal kit R220NLC9A, cylinder seal kit with warranty


Part No.::	31Y1-28960	Part Name::	SERVICE KIT
Machine:	Excavator	Material:	PU
Color:	BLACK,WHITE,BROWN,BLUE	Model:	R210W-9, R210W9A, R210W9AMH

Part No.::	31Y1-28960
Part Name::	SERVICE KIT
Machine:	Excavator
Material:	PU
Color:	BLACK,WHITE,BROWN,BLUE
Model:	R210W-9, R210W9A, R210W9AMH

Product Description

1. Quick Details of seal 31Y1-28960:

Part NO.	31Y1-28960
Machine	Excavator
Size	OEM
Material	PU
Oil seal type	SEAL KIT

2. 31Y1-28960 parts on group :

31Y1-28960 31Y128960 Hyundai HCE SEAL KIT OF R220LC9A, R220NLC9A

NO.	PART NO.	PRAT NAME	QTY
1	31Q6-53110	BOOM CYLINDER ASSEMBLY-LH	1
2	31Q6-53410	BOOM CYLINDER ASSEMBLY-LH	1
3	31Q6-53120	BOOM CYLINDER ASSEMBLY-RH	1
4	31Q6-53420	BOOM CYLINDER ASSEMBLY-RH	1
5	31Y1-36320	BOOM CYL SUB ASSEMBLY	1
6	31Y1-39880	BOOM CYL SUB ASSEMBLY	1
7	31Y1-36190	TUBE ASSEMBLY	1
8	31Y1-39790	TUBE ASSEMBLY	1
9	31Y1-28870	ROD ASSEMBLY	1
10	31Y1-39830	ROD ASSEMBLY	1
11	31Y1-36230	GLAND	1
12	S732-085030	BUSHING-DD2	1
13	Y191-092000	RING-SNAP	1
14	Y220-085013	SEAL-ROD	1
15	Y180-085020	RING-BACK UP	1
16	Y240-085012	RING-BUFFER	1
17	Y110-085011	WIPER-DUST	1
18	Y190-099000	RING-SNAP	1
19	S632-115004	O-RING	1
20	S642-115003	RING-BACK UP	1
21	31YC-26060	RING-CUSHION	1
22	31Y1-28940	PISTON	1
23	Y420-120000	SEAL-PISTON	1
24	Y420-120002	SEAL-PISTON	1
25	Y310-120203	RING-WEAR	2
26	Y440-120002	RING-DUST	2
27	Y440-120000	RING-DUST	2
28	5632-060004	O-RING	1
29	5642-060003	RING-BACK UP	2
30	31YC-68030	NUT-LOCK	1
31	S114-080144	SCREW-SET	1
32	S632-120004	O-RING	1
33	S109-160754	BOLT-SOCKET	12
34	61Q6-97210	BUSHING-PIN	1
35	61Q6-97211	BUSHING-PIN	1
36	61QH-73010	BUSHING-PIN	1
37	61Q6-97220	BUSHING-PIN	1
38	61Q6-97221	BUSHING-PIN	1
39	61QH-73020	BUSHING-PIN	1
40	Y020-080000	SEAL-DUST,DLI,KPU	4
41	31Y1-36240	BAND ASSEMBLY	1
42	31Y1-29240	BAND SUB ASSEMBLY	1
43	31YC-31480	BAND	1
44	S070-052738	U-BOLT	2
45	S011-100352	BOLT-HEX	2
46	S205-101002	NUT-HEX	4
47	S411-100002	WASHER-SPRING	6
48	31Y1-36260	PIPE ASSEMBLY-R,LH	1
49	31Y1-43280	PIPE ASSEMBLY-R,LH	1
50	31Y1-36270	PIPE ASSEMBLY-R,RH	1
51	31Y1-43290	PIPE ASSEMBLY-R,RH	1
52	31Y1-36280	PIPE ASSEMBLY-B,LH	1
53	31Y1-36290	PIPE ASSEMBLY-B,RH	1
54	Y171-019004	O-RING	2
55	S107-100454	BOLT-SOCKET	8
56	31Y1-28960	SEAL KIT	1

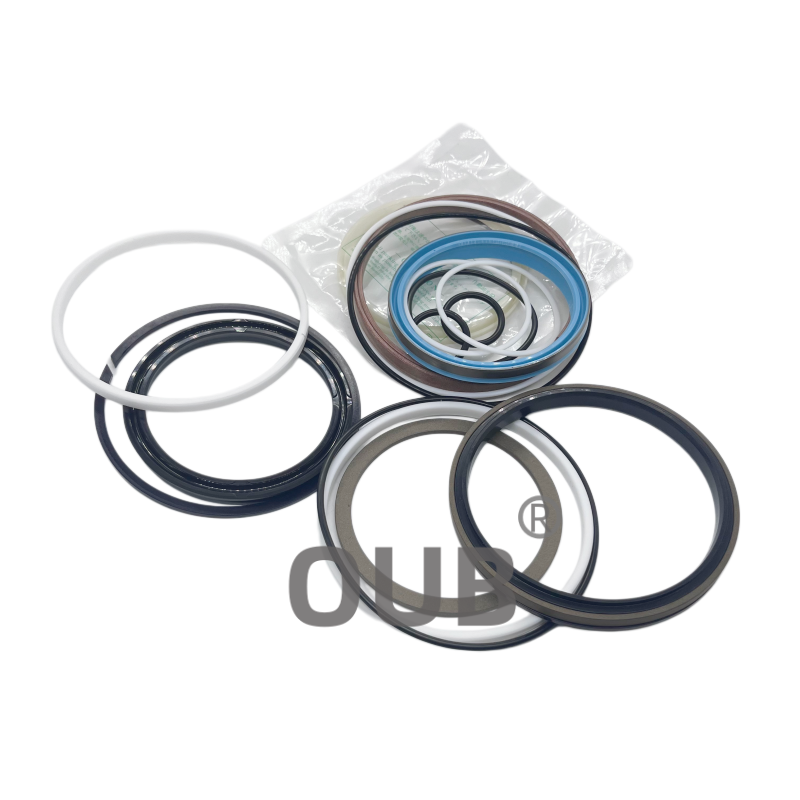

3. 31Y1-28960 picture:

31Y1-28960 31Y128960 Hyundai HCE SEAL KIT OF R220LC9A, R220NLC9A
4. Service part number :

PART NO.	PART NO.	Part NO.
31Y1-26410	31Y1-28790	31Y1-30290
31Y1-26760	31Y1-28960	31Y1-30470
31Y1-27220	31Y1-29100	31Y1-30820
31Y1-28140	31Y1-29101	31Y1-31150
31Y1-28330	31Y1-29450	31Y1-31640
31Y1-28570	31Y1-29680	31Y1-32140

5. FAQ

Q: What kind of hydraulic pressure can these sealing components withstand steadily?
A: It can adapt to frequent pressure changes under normal construction working conditions.

Q: What maximum working pressure can this whole seal kit endure?
A: It can sustain high‑pressure hydraulic system commonly seen on medium‑size excavators under regular construction working conditions.

Q: Does this repair kit contain dust wiper rings for the cylinder rod?
A: Yes, dust wiper, piston seals, rod seals, wear bands and full sets of O‑rings and back‑up rings are all included inside one kit.

Q: What practical symptoms indicate that I need to replace this set of cylinder seals?
A: Slow boom lifting speed, boom dropping down spontaneously, external oil seepage around gland position and unstable hydraulic pressure output.

Q: Is there any special suggestion for storage before installation?
A: Keep in cool dry place, avoid squeezing, sharp piercing and long‑time direct sunlight exposure.

Q: Can this product prevent hydraulic oil leakage effectively?
A: The precise size design effectively reduces internal leakage and external oil seepage.

Q: What construction scenarios often require this arm cylinder seal kit for regular maintenance?
A: It is widely used for maintaining mini excavators working on villa foundation projects, landscape engineering, pipeline trenching and rural road reconstruction.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More

31Y1-20450
