Highlight:
PC300LC-6Z cylinder seal kit
, PC350-6Z service kit
, hydraulic cylinder seal kit
1. Quick Details of seal 707-99-58370:
| Part NO. |
707-99-58370 |
| Machine |
Track‑type Excavator |
| Size |
OEM |
| Material |
HNBR |
| Oil seal type |
SEAL KIT |
2. 707-99-58370 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
207-63-73341 |
CYLINDER |
1 |
| 2 |
707-76-90130 |
BUSHING |
1 |
| 3 |
07145-00090 |
SEAL,DUST (KIT) |
2 |
| 4 |
07020-00000 |
FITTING,GREASE |
1 |
| 5 |
207-63-73320 |
ROD |
1 |
| 6 |
207-63-76170 |
BUSHING |
1 |
| 7 |
205-70-62180 |
SEAL,DUST (KIT) |
2 |
| 8 |
07020-00000 |
FITTING,GREASE |
1 |
| 9 |
707-27-14930 |
HEAD |
1 |
| 10 |
176-63-56170 |
SEAL,DUST (KIT) |
1 |
| 11 |
07179-13114 |
RING,SNAP |
1 |
| 12 |
707-52-90780 |
BUSHING |
1 |
| 13 |
707-51-10030 |
PACKING,ROD (KIT) |
1 |
| 14 |
707-51-10630 |
RING,BUFFER (KIT) |
1 |
| 15 |
707-35-91420 |
RING,BACK-UP (KIT) |
1 |
| 16 |
07000-15130 |
O-RING (KIT) |
1 |
| 17 |
01010-81875 |
BOLT |
12 |
| 18 |
707-41-11840 |
WASHER |
12 |
| 19 |
707-36-14410 |
PISTON |
1 |
| 20 |
01310-01216 |
SCREW |
1 |
| 21 |
707-44-14180 |
RING,PISTON (KIT) |
1 |
| 22 |
707-39-14820 |
RING,WEAR (KIT) |
2 |
| 23 |
707-44-14910 |
RING |
2 |
| 24 |
07001-05090 |
RING,BACK-UP (KIT) |
2 |
| 25 |
07000-15090 |
O-RING (KIT) |
1 |
| 26 |
207-63-73371 |
TUBE |
1 |
| 27 |
207-63-73180 |
TUBE |
1 |
| 28 |
01435-01055 |
BOLT |
8 |
| 29 |
07000-13035 |
O-RING (KIT) |
2 |
| 30 |
707-88-87180 |
BRACKET |
2 |
| 31 |
707-88-87170 |
BAND |
2 |
| 32 |
01010-81240 |
BOLT |
8 |
| 33 |
01643-51232 |
WASHER |
8 |
| 34 |
707-88-10150 |
CLAMP |
2 |
| 35 |
01010-81245 |
BOLT |
4 |
| 36 |
01643-31232 |
WASHER |
4 |
| 37 |
07000-13032 |
O-RING |
2 |
| 38 |
07378-11000 |
HEAD |
2 |
| 39 |
07371-31049 |
FLANGE,SPLIT |
4 |
| 40 |
07372-21035 |
BOLT |
8 |
| 41 |
01643-51032 |
WASHER |
8 |
| K |
707-99-58370 |
SERVICE KIT |
1 |

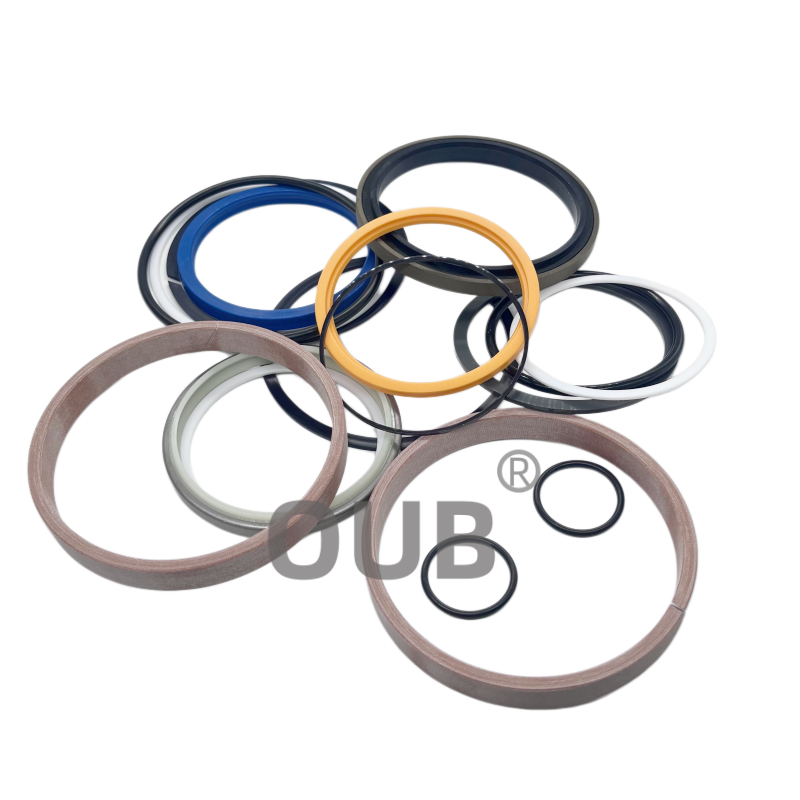

3. 707-99-58370 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-98-26110 |
707-98-37570 |
707-98-60100 |
| 707-98-26540 |
707-98-37680 |
707-98-62100 |
| 707-98-26570 |
707-98-38510 |
707-98-64400 |
| 707-98-26580 |
707-98-38520 |
707-98-64410 |
| 707-99-67120 |
707-99-74140 |
707-99-76030 |
| 707-35-91750 |
707-51-45640 |
707-51-85640 |
| 707-35-91840 |
707-51-45650 |
707-51-85650 |
| 707-35-91850 |
707-51-50640 |
707-51-90630 |
| 707-99-67300 |
707-99-74440 |
707-99-77050 |
| 707-98-38600 |
707-98-64450 |
707-98-64450 |
| 707-98-25980 |
707-98-37130 |
707-51-95650 |
| 707-98-26600 |
707-98-38551 |
707-98-64420 |
5. FAQ
Q: What kind of hydraulic pressure can these sealing components withstand steadily?
A: It can adapt to frequent pressure changes under normal construction working conditions.
Q: Does this kit contain all sealing pieces for one full cylinder overhaul?
A: Yes, it includes piston seals, rod seals, buffer rings, wiper seals, backup rings and complete O‑ring sets for one‑time cylinder maintenance.
Q: What temperature range can this seal kit keep stable working performance?
A: Reliable sealing capability ranges from ‑24℃ up to 158℃ under harsh open‑pit construction‑site surroundings.
Q: What installation tips should on‑site mechanics follow?
A: Avoid sharp edges of cylinder gland scratching sealing surfaces; do not twist or over‑bend any seal component during assembly.
Q: How should distributors store these seal kits in warehouse?
A: Keep whole kits in sealed inner bags, avoid heavy compression, high‑temperature storage area and long‑term ultraviolet radiation.
Q: What job‑site conditions will accelerate seal deterioration for bucket cylinder?
A: Repeated heavy digging impact, polluted hydraulic fluid and sharp pressure surges will shorten seal working life.
Q: Can the sealing combination stop internal leakage and external oil seepage effectively?
A: Multi-stage sealing structure greatly reduces the risk of hydraulic oil leakage.
Q: Can this product prevent hydraulic oil leakage effectively?
A: The precise size design effectively reduces internal leakage and external oil seepage.
Q: What construction scenarios often require this arm cylinder seal kit for regular maintenance?
A: It is widely used for maintaining mini excavators working on villa foundation projects, landscape engineering, pipeline trenching and rural road reconstruction.
