Highlight:
PC09-1 arm cylinder service kit
, cylinder seal kit for PC09-1
, arm cylinder repair kit with warranty
1. Quick Details of seal 707-98-03580:
| Part NO. |
707-98-03580 |
| Machine |
Track‑type Excavator |
| Size |
OEM |
| Material |
PU |
| Oil seal type |
SEAL KIT |
2. 707-98-03580 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
721-11-50420 |
CYLINDER |
1 |
| 2 |
20A-70-11520 |
BUSHING |
1 |
| 3 |
07145-00025 |
SEAL,DUST (KIT) |
2 |
| 4 |
707-29-50701 |
HEAD,CYLINDER |
1 |
| 5 |
07177-02525 |
BUSHING |
1 |
| 6 |
707-51-25210 |
PACKING,ROD (KIT) |
1 |
| 7 |
707-56-25510 |
SEAL,DUST (KIT) |
1 |
| 8 |
07179-12037 |
RING,SNAP |
1 |
| 9 |
07000-13045 |
O-RING (KIT) |
1 |
| 10 |
707-35-52510 |
RING,BACK-UP (KIT) |
1 |
| 11 |
07000-13048 |
O-RING (KIT) |
1 |
| 12 |
707-58-25820 |
ROD,PISTON |
1 |
| 13 |
20A-70-11520 |
BUSHING |
1 |
| 14 |
07145-00025 |
SEAL,DUST (KIT) |
2 |
| 15 |
707-36-50610 |
PISTON |
1 |
| 16 |
707-44-50070 |
RING,PISTON (KIT) |
1 |
| 17 |
10E-63-32390 |
RING,WEAR (KIT) |
1 |
| 18 |
707-67-18040 |
NUT |
1 |
| 19 |
02896-11008 |
O-RING (KIT) |
2 |
| KIT |
707-98-03580 |
SERVICE KIT,ARM CYLINDER |
1 |

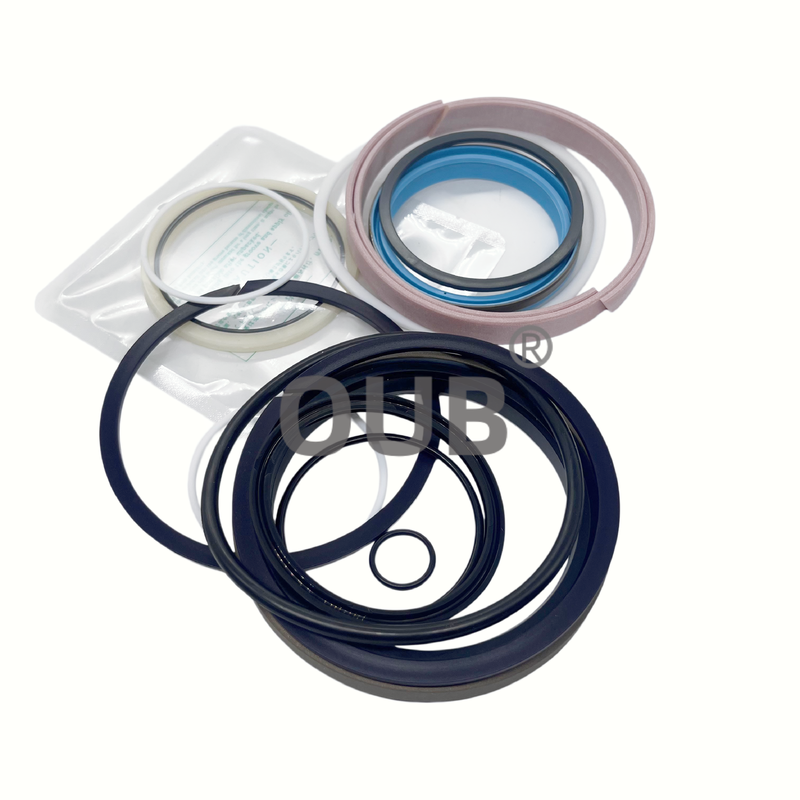

3. 707-98-03580 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-98-26110 |
707-98-37570 |
707-98-60100 |
| 707-98-26540 |
707-98-37680 |
707-98-62100 |
| 707-99-59080 |
707-99-64130 |
707-99-67110 |
| 707-98-38500 |
707-98-62131 |
707-98-62131 |
| 707-98-38510 |
707-98-64400 |
707-98-64400 |
| 707-98-38520 |
707-98-64410 |
707-98-64410 |
| 707-98-38551 |
707-98-64420 |
707-98-64420 |
| 707-98-38600 |
707-98-64450 |
707-98-64450 |
| 707-98-39610 |
707-98-66410 |
707-98-66410 |
| 707-98-26600 |
707-98-38551 |
707-98-64420 |
| 707-98-25980 |
707-98-37130 |
707-51-95650 |
| 707-98-26600 |
707-98-38551 |
707-98-64420 |
5. FAQ
Q: Which construction device does part number 707‑98‑03580 apply for repair work?
A: Part number 707‑98‑03580 cylinder seal kit is manufactured for track‑type excavator travel cylinder assembly maintenance and full overhaul.
Q: What practical sealing effect can part number 707‑98‑03580 achieve for travel cylinder?
A: Part number 707‑98‑03580 cylinder seal kit holds internal hydraulic pressure steadily during track movement, reduces internal fluid bypass, and keeps muddy dirt away from entering the cylinder inner cavity.
Q: What materials make up this full travel cylinder seal kit?
A: Main dynamic rod seals are high‑strength PU polyurethane, static sealing elements adopt oil‑resistant NBR nitrile rubber, and PTFE backup rings undertake lateral load and reduce metal‑to‑metal contact.
Q: What color appearance do these sealing spare parts have?
A: PU sealing parts are deep glossy black, NBR rubber components are matte black, PTFE backup rings show pale milky white.
Q: What sealing pieces are included inside this repair kit?
A: It includes piston seals, rod seals, buffer rings, PTFE backup rings, dust wiper seals and assorted specification O‑rings for cylinder reassembly.
Q: How should we store these seal kits for long‑term stock?
A: Keep in cool dim storage area, avoid heavy compression, sharp cuts and direct sunlight exposure.
Q: Can the sealing combination stop internal leakage and external oil seepage effectively?
A: Multi-stage sealing structure greatly reduces the risk of hydraulic oil leakage.
Q: Can this product prevent hydraulic oil leakage effectively?
A: The precise size design effectively reduces internal leakage and external oil seepage.
Q: What construction scenarios often require this arm cylinder seal kit for regular maintenance?
A: It is widely used for maintaining mini excavators working on villa foundation projects, landscape engineering, pipeline trenching and rural road reconstruction.
