Highlight:
PC38UU-3 slide cylinder service kit
, PC45MRX-1 cylinder seal kit
, slide cylinder repair kit with warranty
1. Quick Details of seal 707-98-23860:
| Part NO. |
707-98-23860 |
| Machine |
Mini Excavator |
| Size |
OEM |
| Material |
PU |
| Oil seal type |
SEAL KIT |
2. 707-98-23860 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
707-11-75450 |
CYLINDER |
1 |
| 2 |
07143-10404 |
BUSHING |
1 |
| 3 |
07145-00040 |
SEAL,DUST (KIT) |
2 |
| 3A |
02896-11009 |
O-RING (KIT) |
1 |
| 4 |
707-29-75010 |
HEAD,CYLINDER |
1 |
| 5 |
07177-04530 |
BUSHING |
1 |
| 6 |
707-51-45210 |
PACKING,ROD (KIT) |
1 |
| 7 |
112-63-15370 |
SEAL,DUST (KIT) |
1 |
| 8 |
07179-12057 |
RING,SNAP |
1 |
| 9 |
07000-12070 |
O-RING (KIT) |
1 |
| 10 |
707-35-52760 |
RING,BACK-UP (KIT) |
1 |
| 11 |
07000-02075 |
O-RING (KIT) |
1 |
| 12 |
721-58-45310 |
ROD,PISTON |
1 |
| 13 |
07143-10404 |
BUSHING |
1 |
| 14 |
07145-00040 |
SEAL,DUST (KIT) |
2 |
| 15 |
707-36-75470 |
PISTON |
1 |
| 16 |
707-44-75180 |
RING,PISTON (KIT) |
1 |
| 17 |
707-39-75190 |
RING,WEAR (KIT) |
1 |
| 18 |
707-67-33010 |
NUT |
1 |
| 19 |
707-86-39040 |
TUBE |
1 |
| 20 |
02896-11009 |
O-RING (KIT) |
1 |
| 21 |
232-60-63160 |
CLIP |
1 |
| 22 |
01010-81020 |
BOLT |
1 |
| 23 |
01643-31032 |
WASHER |
1 |
| K |
707-98-23860 |
SERVICE KIT,SLIDE CYLINDER |
1 |

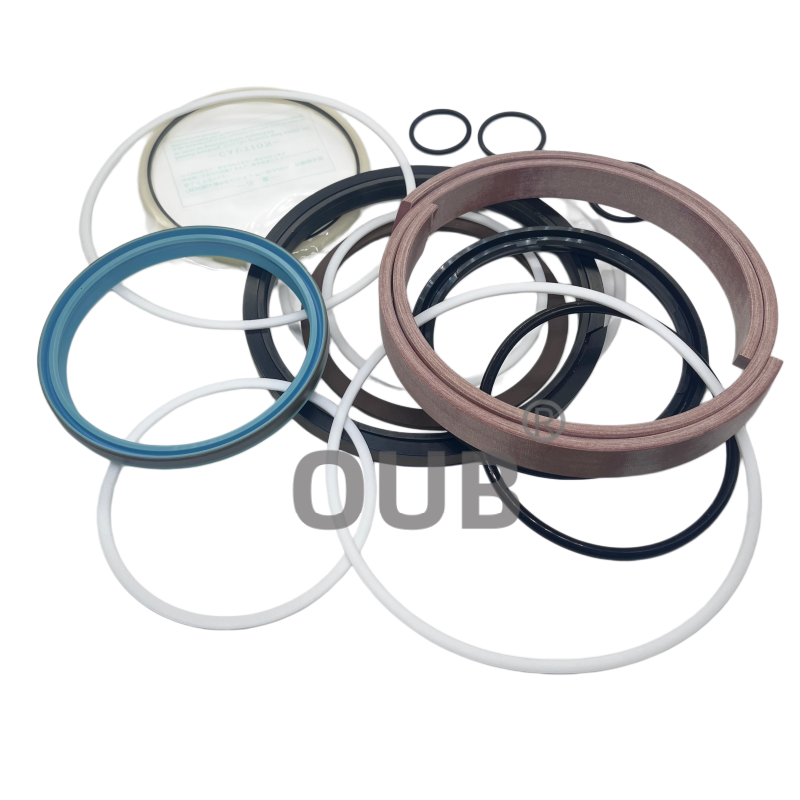

3. 707-98-23860 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-99-67760 |
707-99-75470 |
707-98-62120 |
| 707-99-67770 |
707-99-75490 |
707-98-64400 |
| 707-99-67830 |
707-99-67120 |
707-99-74140 |
| 707-98-26560 |
707-99-67120 |
707-99-74140 |
| 707-51-17030 |
707-98-26070 |
707-98-76300 |
| 707-51-17130 |
707-98-26100 |
707-98-47670 |
| 707-99-59320 |
707-99-67290 |
707-99-74240 |
| 707-99-59330 |
707-99-67300 |
707-99-74440 |
| 707-99-59430 |
707-99-64250 |
707-99-77190 |
| 707-99-46120 |
707-99-64120 |
707-99-77220 |
| 707-98-25980 |
707-98-37130 |
707-51-95650 |
5. FAQ
Q: What construction machine does part number 707‑98‑23860 support for cylinder repair tasks?
A: Part number 707‑98‑23860 cylinder seal kit is purpose‑built for mini excavator bucket cylinder assembly maintenance and full overhaul service.
Q: What sealing output can part number 707‑98‑23860 achieve for bucket cylinder hydraulic loop?
A: Part number 707‑98‑23860 cylinder seal kit sustains stable hydraulic pressure during bucket grabbing and dumping cycles, reduces internal pressure drop under digging and material‑holding load, and keeps soil particles and site debris out of cylinder inner cavity to protect piston and rod matching surfaces.
Q: What raw materials make up this bucket cylinder seal kit?
A: Dynamic rod seals adopt tear‑resistant PU polyurethane, static sealing O‑rings use oil‑resistant NBR nitrile rubber, and PTFE anti‑friction backup rings bear lateral offset load and prevent seal squeeze damage under frequent pressure surges.
Q: What color appearance do these sealing spare parts display?
A: PU sealing components are matte jet‑black, NBR rubber parts are glossy deep black, PTFE anti‑friction backup rings are light cream‑white.
Q: What color appearance do these sealing spare parts present?
A: PU sealing elements are deep jet‑black, FKM rubber fittings are dark brown‑black, PTFE low‑friction backup rings are light cream‑white.
Q: Can the sealing combination stop internal leakage and external oil seepage effectively?
A: Multi-stage sealing structure greatly reduces the risk of hydraulic oil leakage.
Q: Can this product prevent hydraulic oil leakage effectively?
A: The precise size design effectively reduces internal leakage and external oil seepage.
Q: What construction scenarios often require this arm cylinder seal kit for regular maintenance?
A: It is widely used for maintaining mini excavators working on villa foundation projects, landscape engineering, pipeline trenching and rural road reconstruction.
6. Exhibition and Wearhous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
