Product Details
Place of Origin: China
Brand Name: OUB
Certification: ISO9001
Model Number: VOE14612137
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: PP Bag Inside.outer is carton with film wrapped.
Delivery Time: Within 5-15 days after getting your desposit
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000Pcs
Part No.:: |
VOE14612137 |
Part Name:: |
SEAL KIT |
Machine: |
Excavator |
Material: |
NBR |
Color: |
BLACK,WHITE,BROWN,YELLOW |
Model: |
EC700B, EC700C, EC750D |
Part No.:: |
VOE14612137 |
Part Name:: |
SEAL KIT |
Machine: |
Excavator |
Material: |
NBR |
Color: |
BLACK,WHITE,BROWN,YELLOW |
Model: |
EC700B, EC700C, EC750D |
1. Quick Details of seal VOE14612137:
| Part NO. | VOE14612137 |
| Machine | Excavator |
| Size | OEM |
| Material | NBR |
| Oil seal type | SEAL KIT |
2. VOE14612137 parts on group :
![]()
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14587747 | Boom cylinder | 1 | |
| 1 | VOE14588110 | Tube | 1 |
| 2 | VOE14587734 | Bushing | 1 |
| 3 | VOE14560217 | Seal | 2 |
| 4 | VOE14588113 | Rod | 1 |
| 5 | VOE14587734 | Bushing | 1 |
| 6 | VOE14560217 | Seal | 2 |
| 7 | VOE14588117 | Head | 1 |
| 8 | VOE14588818 | Bushing | 1 |
| 9 | 5A9557-11500 | Retaining ring | 1 |
| 10 | VOE14589006 | Ring | 1 |
| 11 | VOE14588477 | Cushion | 1 |
| 12 | VOE14588118 | Piston | 1 |
| 13 | VOE14588457 | Set screw | 1 |
| 14 | VOE14568624 | Bolt | 12 |
| 15 | VOE14588814 | Seal | 1 |
| 16 | VOE14588815 | Seal | 1 |
| 17 | VOE14588817 | seal | 1 |
| 18 | SA9566-31750 | Back-up ring | 1 |
| 19 | VOE14611291 | O-ring | 1 |
| 20 | SA9566-31050 | Back-up ring | 2 |
| 21 | VOE990644 | O-ring | 1 |
| 22 | VOE14588812 | Seal | 1 |
| 23 | VOE14588784 | Ring | 1 |
| 24 | VOE14588783 | Ring | 1 |
| 25 | VOE14588785 | Seal | 2 |
| 26 | VOE14880995 | Ball | 1 |
| 27 | SA7281-11070 | Plug | 1 |
| 100 | VOE14612137 | Sealing kit | 1 |

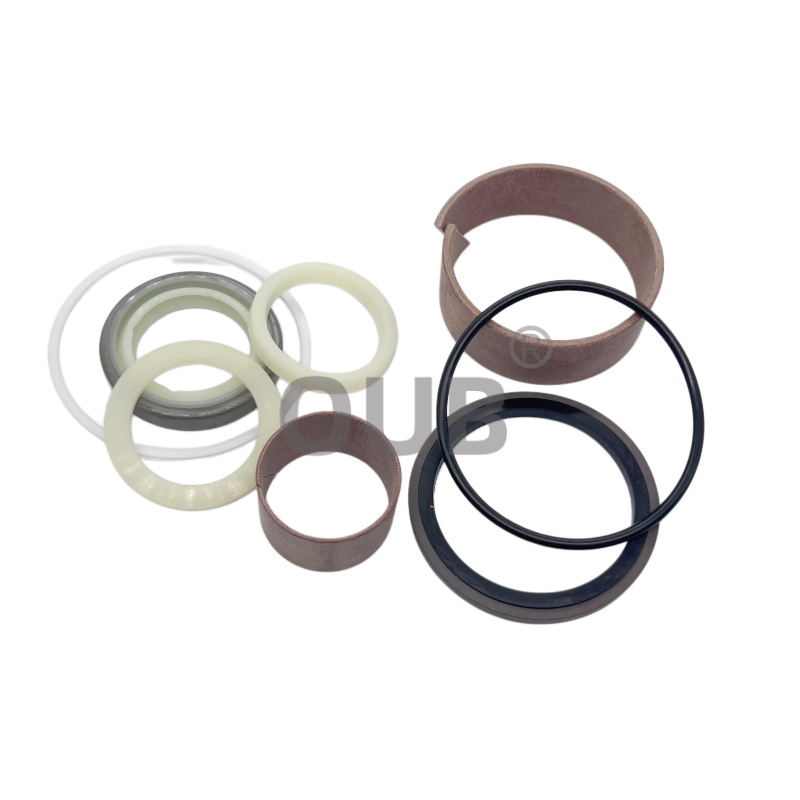

3. VOE14612137 picture:
![]()
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6V1454 | 7F8268 |
| 5J8325 | 1790464 | 6V-9746 |
| 6J7167 | 1092332 | 2K8199 |
| 1672191 | 1J3540 | 5P7530 |
| 1K6981 | 4J3515 | 6J2680 |
| 1K6982 | 4J8981 | 5P8872 |
| 2J1411 | 1672235 | 6V1454 |
5. FAQ
Q: What is the OEM part number of this hydraulic overhaul seal kit?
A: The OEM part number is VOE14612137, this complete kit is designed for excavator arm hydraulic cylinder repair.
Q: What type of construction machine can part VOE14612137 be installed on?
A: VOE14612137 matches excavator arm cylinder, used for seal renewal and hydraulic system maintenance.
Q: What materials are used for this arm cylinder seal kit?
A: It is composed of PU, NBR, PTFE, fabric composite seal and POM backup ring for high pressure resistance.
Q: What is the primary function of this cylinder seal kit on the arm cylinder?
A: It stops cross-leakage inside the cylinder and external oil seepage to keep arm movement stable.
Q: Where do these sealing components get fitted within the arm hydraulic cylinder?
A: They are installed on piston grooves and rod gland, covering wiper, rod seal and piston seal positions.
Q: What kind of hydraulic fluid can this set of seals work with?
A: It works well with standard mineral-based hydraulic oil commonly used on construction excavators.
Q: What product category does VOE14612137 belong to?
A: It falls under cylinder seal kit, a full service set for excavator arm hydraulic cylinder rebuilding.
Q: Does this kit contain all sealing pieces required for one arm cylinder overhaul?
A: Yes, it includes all necessary seals, backup rings and wear components for one arm cylinder repair job.
