Home > Products > Piston Seal Rings > VOE14542026 Ring heavy parts EC700B, EC700BHR

VOE14542026 Ring heavy parts EC700B, EC700BHR

Name: VOE14542026 Ring heavy parts EC700B, EC700BHR
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: VOE14542026
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: VOE14542026

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                EC700B piston seal ring, EC700BHR heavy parts ring, piston seal ring with warranty


Part No.::	VOE14542026	Part Name::	SEAL RING
Model:	EC700C	Machine:	Excavator
Material:	PTFE	Color:	BLACK

Part No.::	VOE14542026
Part Name::	SEAL RING
Model:	EC700C
Machine:	Excavator
Material:	PTFE
Color:	BLACK

Product Description

1. Quick Details of seal VOE14542026:

Part NO.	VOE14542026
Machine	excavator
Size	OEM
Material	PTFE
Type	RING SEAL

2. VOE14542026 parts on group :

VOE14542026 Ring heavy parts EC700B, EC700BHR

NO.	PART NO.	PRAT NAME	QTY
	VOE14528492	Cylinder	1
1	VOE14542074	Cylinder tube	1
2	VOE14542070	Bushing	1
3	VOE14542075	Rod	1
4	VOE14542070	Bushing	1
5	VOE14542015	Ring	1
6	VOE14542078	Ring	1
7	VOE14542079	Ring	1
8	VOE14542080	Ring	1
9	VOE14542081	Ring	1
10	V0E14585342	Ring	1
11	SA9511-22180	O-ring	1
12	VOE14542021	Ring	1
13	VOE14542022	Bolt	8
14	VOE14542083	Ring	1
15	VOE14542084	Piston	1
16	VOE14542026	Ring	1
17	VOE14542027	Ring	2
18	VOE14542028	Ring	2
19	VOE14542085	Shim	1
20	VOE14542029	Nut	1
21	VOE14542030	Set screw	1
22	SA9676-38000	Ball	1
23	VOE14542072	Venting	1
24	VOE14542071	Ring	4
25	VOE14542077	Bushing	1
26	VOE14542088	Rod	1
27	VOE14618214	Sealing Kit	1

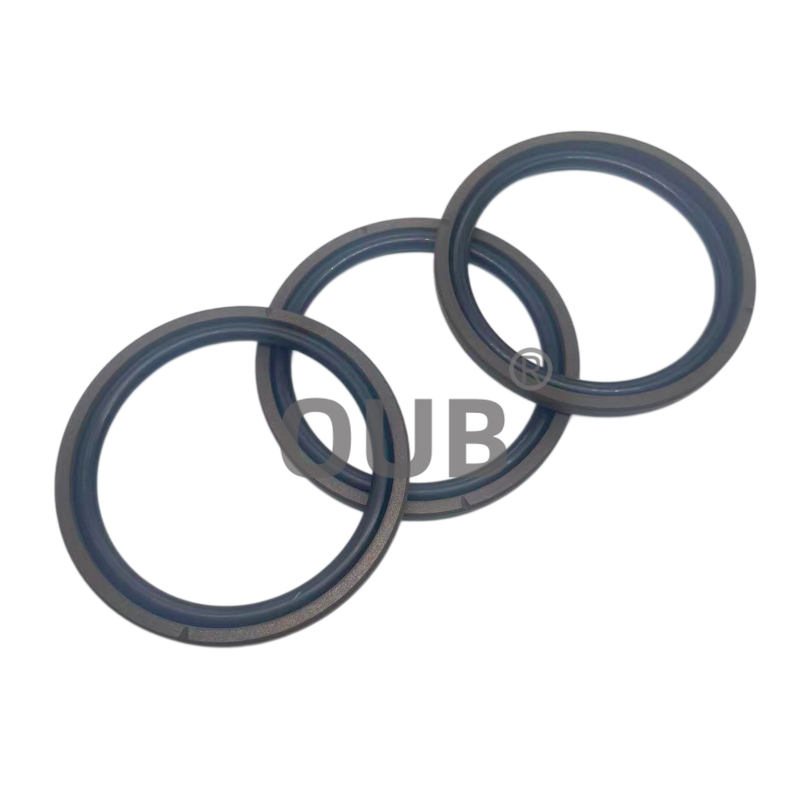

3. VOE14542026 picture:

VOE14542026 Ring heavy parts EC700B, EC700BHR
4. Service part number :

PART NO.	PART NO.	Part NO.
3K-0360	6J-9733	7F8268
206-9298	3K-0360	6V-8397
8T-9597	5J-8825	8T-2361
236-6919	1J-6474	7F-8607

5. FAQ

Q: What construction machine does VOE14542026 fit for?
A: VOE14542026 is a piston seal ring specially made for excavator hydraulic boom cylinder.

Q: What raw materials are used for VOE14542026 piston seal ring?
A: VOE14542026 piston seal ring adopts PTFE sealing layer with PA backup ring.

Q: What is the main working purpose of this piston seal ring?
A: It blocks hydraulic oil bypass across piston and maintains stable pressure inside cylinder.

Q: Where will this piston seal ring be installed on the hydraulic assembly?
A: It is fitted into the precision groove on the piston of the boom hydraulic cylinder.

Q: What advantage does PA backup ring bring to this seal assembly?
A: PA material offers strong extrusion resistance under high hydraulic pressure conditions.

Q: What kind of working environment can this piston seal ring withstand?
A: It can handle heavy load and frequent reciprocating motion in mining and earthmoving work.

Q: What failure symptom will occur once this piston seal ring is worn?
A: The boom will sink slowly and the cylinder cannot hold pressure during static holding.

Q: Is this piston seal ring compatible with other series of hydraulic cylinders?
A: It is customized for the matched excavator boom cylinder, cross-model use is not advised.

6. Exhibition and Wearhous
