VOE14587743 Ring heavy parts of EC480EHR, EC700B, EC700BHR

Name: VOE14587743 Ring heavy parts of EC480EHR, EC700B, EC700BHR
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: VOE14587743
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: VOE14587743

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                EC480EHR piston seal ring, EC700BHR heavy parts ring, excavator piston seal ring


Part No.::	VOE14587743	Part Name::	SEAL RING
Model:	EC750E, EC950E	Machine:	Excavator
Material:	PTFE	Color:	BROWN

Part No.::	VOE14587743
Part Name::	SEAL RING
Model:	EC750E, EC950E
Machine:	Excavator
Material:	PTFE
Color:	BROWN

Product Description

1. Quick Details of seal VOE14587743:

Part NO.	VOE14587743
Machine	excavator
Size	OEM
Material	PTFE
Type	RING SEAL

2. VOE14587743 parts on group :

VOE14587743 Ring heavy parts of EC480EHR, EC700B, EC700BHR

NO.	PART NO.	PRAT NAME	QTY
	VOE14575093	Boom cylinder	1
1	VOE14575094	Tube	1
2	VOE14587734	Bushing	1
3	VOE14560217	Seal	2
4	VOE14587735	Rod	1
5	VOE14587734	Bushing	1
6	VOE14560217	Seal	2
7	SA9563-21303	Seal	1
8	VOE14588786	Seal	1
9	5A9567-21301	Back-up ring	1
10	5A9564-21300	Seal	1
11	SA9557-13000	Retaining ring	1
12	VOE990657	O-ring	1
13	5A9566-11850	Back-up ring	1
14	VOE14568624	Bolt	12
15	VOE14587741	Cushion	1
16	VOE14587742	Ring	1
17	VOE14587740	Piston	1
18	SA1146-08160	Seal	1
19	VOE14587743	Ring	1
20	VOE14587745	Seal	2
21	SA9557-12000	Retaining ring	1
22	VOE14589003	Seal	1
23	VOE14587744	Ring	1
24	SA9562-12000	Piston seal	1
25	VOE990645	O-ring	1
26	SA9566-31100	Back-up ring	2
27	VOE14880995	Ball	1
28	VOE14587739	Head	1
29	SA9612-13050	Bearing	1
30	VOE14588457	Set screw	2
31	SA7281-11070	Plug	1
32	VOE14599293	Seal	1

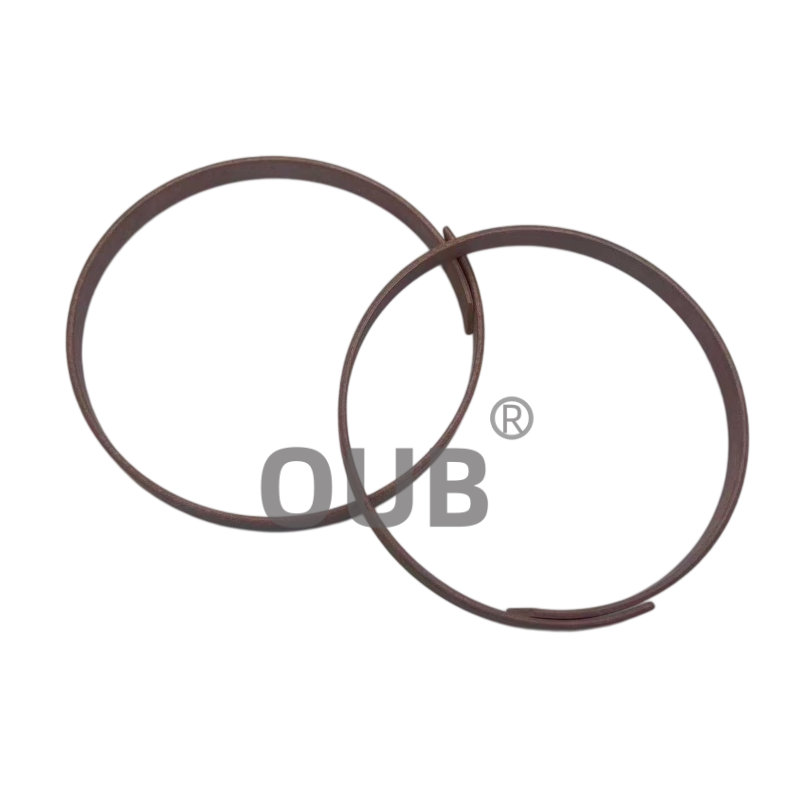

3. VOE14587743 picture:

VOE14587743 Ring heavy parts of EC480EHR, EC700B, EC700BHR
4. Service part number :

PART NO.	PART NO.	Part NO.
3K-0360	6V-8398	7F8268
206-9298	3K-0360	6V-9746
8T-9597	6V-5393	8T-2361
236-6919	1J-6474	7F-8607

5. FAQ

Q: What heavy construction machine does VOE14587743 fit for?
A: VOE14587743 is a piston seal ring designed for hydraulic cylinders of excavators.

Q: What raw materials are used for VOE14587743 piston seal ring?
A: VOE14587743 piston seal ring adopts filled PTFE sealing layer and NBR rubber backup ring.

Q: What is the main sealing function of this piston seal ring?
A: It achieves bidirectional sealing and blocks hydraulic oil passing through the piston to maintain cylinder pressure.

Q: Where will this piston seal ring be installed on the hydraulic cylinder?
A: It fits into the precision piston groove inside the excavator bucket hydraulic cylinder assembly.

Q: What advantage does NBR backup ring bring for this seal assembly?
A: NBR has good elasticity and stable compatibility with mineral hydraulic oil under fluctuating pressure.

Q: What working environment can this piston seal ring adapt to?
A: It works reliably under heavy load and frequent reciprocating movement on construction sites.

Q: What obvious symptom appears once this piston seal ring gets worn?
A: The bucket will lose holding pressure and cannot keep stable position under heavy loads.
