VOE14560217 Sealing heavy parts of EC700B, EC700BHR

Name: VOE14560217 Sealing heavy parts of EC700B, EC700BHR
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: VOE14560217
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: VOE14560217

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                EC700B dust wiper seal, EC700BHR sealing heavy parts, heavy-duty dust wiper seals


Part No.::	VOE14560217	Part Name::	DUST SEAL
Machine:	Excavator	Material:	PU
Color:	WHITE	Model:	EC750E, EC950E

Part No.::	VOE14560217
Part Name::	DUST SEAL
Machine:	Excavator
Material:	PU
Color:	WHITE
Model:	EC750E, EC950E

Product Description

1. Quick Details of seal VOE14560217:

Part NO.	VOE14560217
Machine	Excavator
Size	OEM
Material	PU
Oil seal type	WIPER SEAL

2. VOE14560217 parts on group :

VOE14560217 Sealing heavy parts of EC700B, EC700BHR

NO.	PART NO.	PRAT NAME	QTY
	VOE14722586	Cylinder	1
1	VOE14719871	Tube	1
2	VOE14596467	Bushing	1
3	VOE14560217	Seal	2
4	VOE14719874	Rod	1
5	VOE914167	Lubricating nipple	1
6	VOE14596529	Bushing	1
7	VOE14596527	Seal	2
	VOE14714220	Head	1
8	VOE14588781	Bushing	1
9	VOE14883879	Retaining ring	1
10	VOE14883880	Retaining ring	1
11	VOE14588109	Cushion	1
12	VOE14720333	Piston	1
13	VOE14596545	Cushion	1
14	VOE14589002	Pin	1
15	VOE14883743	Set screw	2
16	VOE14568624	Bolt	12
17	VOE14588458	Seal	1
18	VOE14883643	Seal	1
19	VOE14692078	Seal	1
20	SA9566-31850	Back-up ring	1
	VOE990657	O-ring	1
21	SA9566-31200	Back-up ring	2
22	VOE990647	O-ring	1
23	VOE14716204	Seal	1
24	VOE14716203	Ring	1
25	VOE14587745	Seal	2
26	VOE14587743	Ring	1
27	VOE14880995	Ball	1
28	SA7281-11070	Plug	1
29	VOE14713115	Sealing kit	1

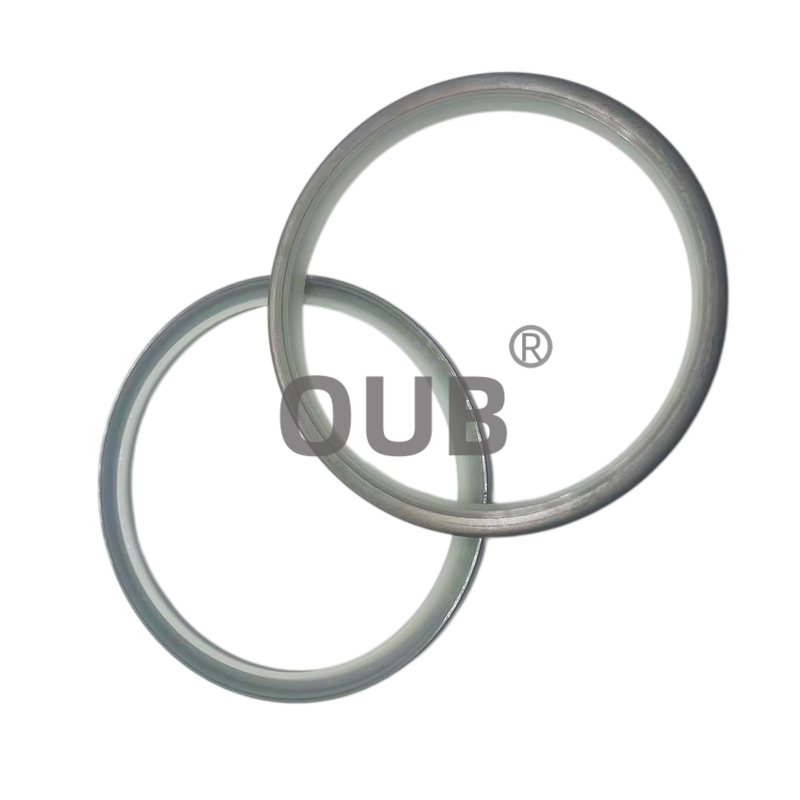

3. VOE14560217 picture:

VOE14560217 Sealing heavy parts of EC700B, EC700BHR
4. Service part number :

PART NO.	PART NO.	Part NO.
6J9733	5J8150	7F8268
8175504	6V5393	1P-7363
5J8175	8175504	1121579
6J9178	5J8175	9X7371
158-8979	249-6670	3P0655

5. FAQ

Q: What heavy construction machine can fit spare part VOE14560217?
A: VOE14560217 dust wiper seal is developed for large excavator hydraulic cylinder piston rod.

Q: What is the product category and official part name of VOE14560217?
A: VOE14560217 is categorized as dust wiper seal, it is a hydraulic scraper sealing spare part.

Q: What materials compose this dust wiper seal?
A: It combines PU scraping lip and NBR rubber base for stable elasticity and abrasion resistance.

Q: What is the core working purpose of this dust wiper seal?
A: It clears sand, mud and debris from the piston rod surface to block contaminants entering cylinder.

Q: Where is this dust wiper seal installed in the hydraulic cylinder assembly?
A: It is fitted into the outer groove of cylinder head at the exposed end of piston rod.

Q: What unique features does this PU+NBR composite wiper seal have?
A: It keeps good flexibility under cold weather and maintains tight scraping lip for long operation hours.

Q: What negative impact will happen once this dust wiper seal fails?
A: Dirt will penetrate inside the cylinder and wear the main rod seal, leading to oil leakage.

Q: What kind of working sites suit this dust wiper seal best?
A: It performs reliably on mining and earthmoving sites with heavy dust and muddy conditions.
