07161-00090 0716100090 RING,PISTON OF D50P-15

Name: 07161-00090 0716100090 RING,PISTON OF D50P-15
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07161-00090
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07161-00090

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                D50P-15 piston seal ring, 07161-00090 piston ring, 0716100090 piston seal


Part No.::	07161-00090	Part Name::	SEAL RING
Model:	D50P-15	Machine:	Excavator
Material:	Bronze Filled PTFE	Color:	BLACK

Part No.::	07161-00090
Part Name::	SEAL RING
Model:	D50P-15
Machine:	Excavator
Material:	Bronze Filled PTFE
Color:	BLACK

Product Description

1. Quick Details of seal 07161-00090:

Part NO.	07161-00090
Machine	Excavator
Size	OEM
Material	Bronze filled PTFE
Type	RING SEAL

2. 07161-00090 parts on group :

07161-00090 0716100090 RING,PISTON OF D50P-15

NO.	PART NO.	PRAT NAME	QTY
1	130-63-12244	CYLINDER,L.H.	1
1	130-63-13141	CYLINDER,L.H.	1
1	130-63-12144	CYLINDER,R.H.	1
1	130-63-13241	CYLINDER,R.H.	1
2	130-63-12133	HEAD,CYLINDER	1
2	130-63-12130	HEAD,CYLINDER	1
3	07177-05530	BUSHING	1
4	130-63-12173	PACKING (KIT)	1
4	130-63-12171	U-PACKING (KIT)	1
5	07000-12085	O-RING (KIT)	1
6	07146-02086	RING,BACK-UP (KIT)	1
7	01010-51645	BOLT	4
8	01602-21648	WASHER	4
9	07178-05537	GLAND	1
10	07177-05512	BUSHING	1
11	07016-00558	SEAL,DUST (KIT)	1
12	07179-00077	RING,SNAP	1
13	07000-03070	O-RING (KIT)	1
14	01010-51445	BOLT	2
15	01602-21442	WASHER	2
16	130-63-12123	ROD,PISTON	1
16	130-63-12121	ROD,PISTON	1
17	07137-03505	BUSHING	1
18	04065-08025	RING,SNAP	2
19	07000-03035	O-RING (KIT)	2
	130-63-12064	VALVE ASSEMBLY	1
	130-63-12060	VALVE ASSEMBLY	1
20	130-63-12161	PISTON	1
20	07151-00927	PISTON	1
21	130-63-12364	VALVE,PISTON	3
22	130-63-12464	SEAT (KIT)	6
23	07155-00925	RING,WEAR (KIT)	1
24	232-63-12451	PACKING,PISTON (KIT)	2
24	07161-00090	RING,PISTON (KIT)	2
25	130-63-12561	RETAINER	2
25	07164-00906	RETAINER	2
25A	130-63-12660	SLIDER	1
25B	130-63-12761	PIN	2
26	130-63-12860	NUT,NYLON	1
26	232-63-12681	NUT	1
27	130-63-12186	TUBE,L.H.	1
27	130-63-12183	TUBE,L.H.	1
27	130-63-12286	TUBE,R.H.	1
27	130-63-12283	TUBE,R.H.	1
28	130-63-12192	TUBE,L.H.	1
28	130-63-12292	TUBE,R.H.	1
29	01010-50850	BOLT	2
30	01010-50850	BOLT	2
31	01010-50835	BOLT	4
32	01602-20825	WASHER	8
33	07000-13030	O-RING (KIT)	2
33	07000-23030	O-RING (KIT)	2
34	07283-12738	CLIP	2
35	01599-01011	NUT	4
36	01643-21032	WASHER	4
37	130-63-12390	PLATE	1
38	01012-51035	BOLT	1
39	01590-11012	NUT	1
40	04050-02018	PIN	1
41	130-63-12490	COLLAR	1

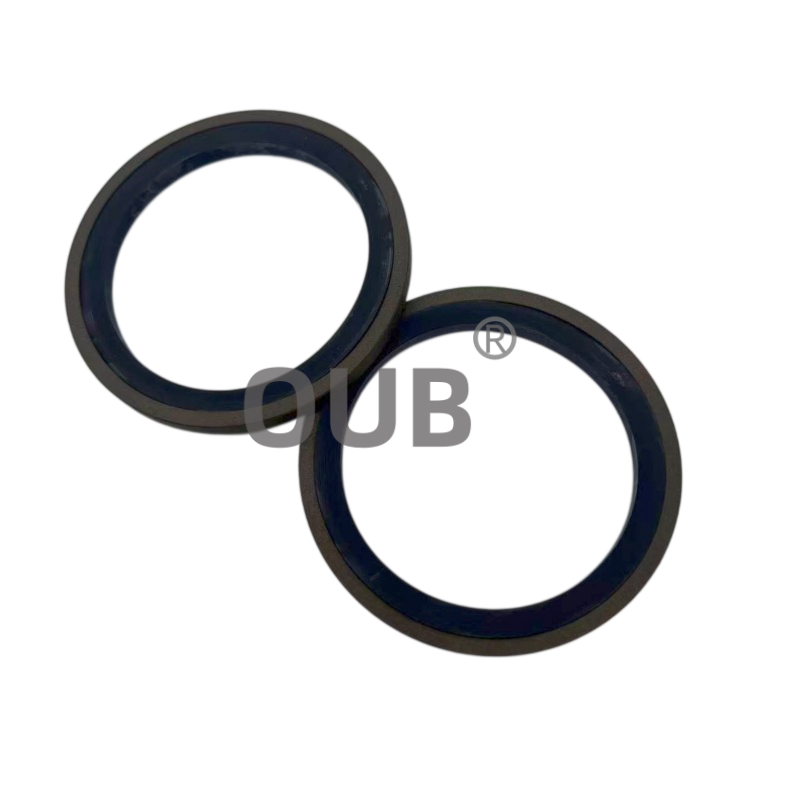

3. 07161-00090 picture:

07161-00090 0716100090 RING,PISTON OF D50P-15
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-99-59430	707-35-52780	707-98-36590
707-98-26560	707-98-64420	707-98-36600
707-98-26570	707-98-25870	707-98-36630
707-98-26580	707-98-38520	707-98-67100
707-51-12860	707-98-38520	707-98-67110
707-51-12110	707-51-20080	707-98-26441

5. FAQ

Q: Which heavy construction equipment can use part number 07161-00090?
A: Part number 07161-00090 is specially produced for excavator hydraulic cylinder piston assembly.

Q: Could you introduce the part name and product classification of 07161-00090?
A: The part name is piston seal ring and it is categorized under piston seal ring group.

Q: What raw material is used to manufacture this piston seal ring?
A: It adopts bronze filled PTFE, which offers outstanding wear resistance under high pressure.

Q: What core sealing work does this piston seal ring complete inside the cylinder?
A: It isolates the two hydraulic oil chambers and prevents internal oil leakage past the piston.

Q: Where will this piston seal ring be installed on the hydraulic piston?
A: It is fitted into the outer circumferential groove of the piston body.

Q: What are the main strengths of bronze filled PTFE for this sealing ring?
A: It has low friction and strong anti-extrusion performance under variable heavy loads.

Q: Can this piston seal ring withstand impact loads during excavation work?
A: Yes, it is designed to adapt to sudden load changes in excavator hydraulic systems.

Q: Is this spare part suitable for replacing worn seals during cylinder overhaul?
A: Yes, it is a commonly used replacement component for excavator hydraulic cylinder overhaul.
