Home > Products > Piston Seal Rings > 07161-00110 0716100110 RING,PISTON OF D65A-6 D60P-6

07161-00110 0716100110 RING,PISTON OF D65A-6 D60P-6

Name: 07161-00110 0716100110 RING,PISTON OF D65A-6 D60P-6
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07161-00110
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07161-00110

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                D65A-6 piston seal ring, D60P-6 piston ring, heavy-duty piston seal ring


Part No.::	07161-00110	Part Name::	SEAL RING
Model:	D60A-6	Machine:	Excavator
Material:	Glass Filled PTFE	Color:	BLACK

Part No.::	07161-00110
Part Name::	SEAL RING
Model:	D60A-6
Machine:	Excavator
Material:	Glass Filled PTFE
Color:	BLACK

Product Description

1. Quick Details of seal 07161-00110:

Part NO.	07161-00110
Machine	Excavator
Size	OEM
Material	Glass filled PTFE
Type	RING SEAL

2. 07161-00110 parts on group :

07161-00110 0716100110 RING,PISTON OF D65A-6 D60P-6

NO.	PART NO.	PRAT NAME	QTY
1	144-60-00041	CYLINDER ASSEMBLY,L.H.	1
1	144-60-15004	CYLINDER ASSEMBLY,L.H.	1
1	144-63-12100	CYLINDER ASSEMBLY,L.H.	1
1	144-60-00051	CYLINDER ASSEMBLY,R.H.	1
1	144-60-15104	CYLINDER ASSEMBLY,R.H.	1
1	144-63-12200	CYLINDER ASSEMBLY,R.H.	1
1	144-60-15374	CYLINDER,L.H.	1
1	144-60-15384	CYLINDER,R.H.	1
2	144-60-15431	BUSHING	2
3	07145-00055	SEAL	2
4	144-63-12130	HEAD	1
4	144-60-15111	HEAD	1
5	01010-32055	BOLT	4
6	01602-02060	WASHER	4
7	154-63-12173	PACKING	1
7	154-63-12170	PACKING	1
7	154-63-12171	PACKING	1
8	07177-06530	BUSHING	1
9	07000-12105	O-RING	1
10	07146-02106	RING	1
11	07178-06540	GLAND	1
11	144-63-12230	GLAND	1
12	07016-00658	SEAL	1
13	07177-06515	BUSHING	1
14	07000-03078	O-RING	1
14	07000-13078	O-RING	1
15	01010-31445	BOLT	2
15	01010-31450	BOLT	2
16	01602-01442	WASHER	2
16	01602-21442	WASHER	2
17	144-60-15450	BUSHING	2
18	07179-00088	RING	1
19	144-63-12060	PISTON ASSEMBLY	1
19	144-60-15290	PISTON	1
19	144-63-12160	PISTON	1
22	130-63-12761	PIN	2
23	07161-00110	RING	2
23	113-63-22461	U-PACKING	2
24	07155-01125	RING	1
25	07164-01106	WASHER	2
25	144-63-12260	RETAINER	2
26	144-63-12120	ROD	1
26	144-60-15320	ROD	1
27	144-63-12360	NUT	1
27	07165-13638	NUT	1
28	07000-03040	O-RING	2
28	07000-13040	O-RING	2
29	04065-09030	RING	2
30	07137-04006	BUSHING	1
31	144-60-15491	PLATE	1
32	140-60-15460	TUBE	1
33	01012-31245	BOLT	1
33	01012-51245	BOLT	1
34	01590-01215	NUT	1
34	01590-11215	NUT	1
35	04050-03025	PIN	1
35	04050-13035	PIN	1
36	07283-03442	CLIP	4
36	07283-31442	CLIP	4
37	01599-01011	NUT	8
38	01643-01032	WASHER	8
38	01643-21032	WASHER	8
39	144-60-15513	TUBE,L.H.	1
39	144-60-15533	TUBE,R.H.	1
40	144-60-15524	TUBE,L.H.	1
40	144-60-15544	TUBE,R.H.	1
41	07000-13035	O-RING	4
41	07000-23035	O-RING	4
42	01010-31055	BOLT	8
43	01010-31045	BOLT	8
44	01602-01030	WASHER	16
45	144-60-15892	PLATE	2

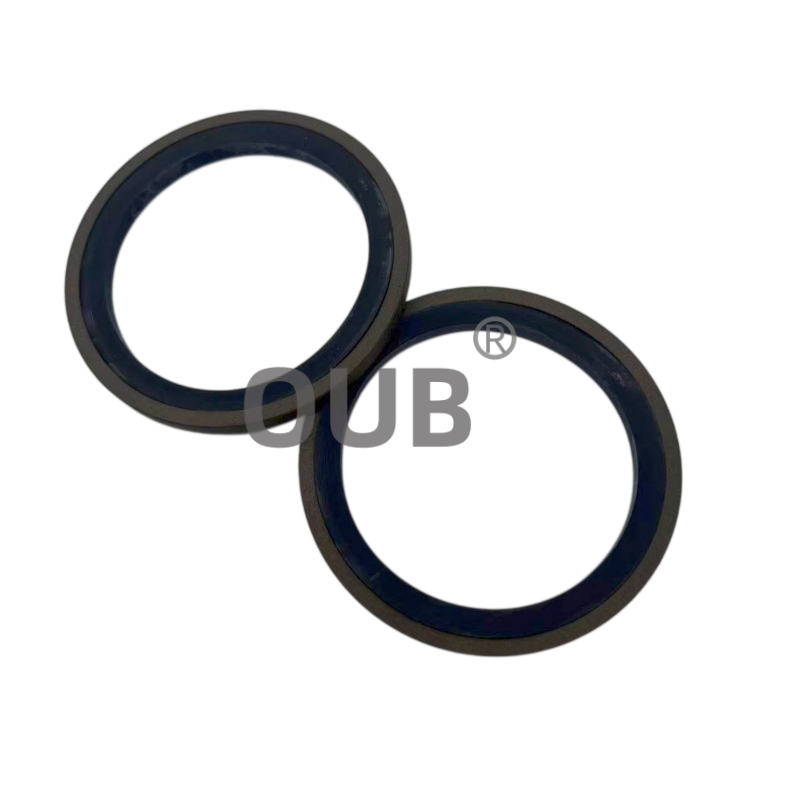

3. 07161-00110 picture:

07161-00110 0716100110 RING,PISTON OF D65A-6 D60P-6
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-99-59430	707-98-37670	707-98-36590
707-98-26560	707-99-64250	707-98-36600
707-98-26570	707-98-25870	707-98-36630
707-98-26580	707-98-38520	707-98-67100
707-51-12860	707-98-38520	707-98-67110
707-51-12110	707-51-20080	707-98-26441

5. FAQ

Q: What heavy construction machine can part number 07161-00110 be fitted on?
A: Part number 07161-00110 is developed for excavator hydraulic cylinder piston assembly.

Q: Please tell the part name and product category of 07161-00110.
A: The part name is piston seal ring and it falls under piston seal ring category.

Q: What raw material is used to produce this piston seal ring?
A: It is made of glass filled PTFE with good anti-abrasion and anti-extrusion performance.

Q: What is the core sealing purpose of this piston seal ring?
A: It separates high-pressure and low-pressure oil chambers to prevent internal oil cross-flow.

Q: Where is this piston seal ring mounted inside the hydraulic cylinder?
A: It is placed into the outer circumferential groove machined on the piston body.

Q: What benefits does glass filled PTFE bring for this sealing ring?
A: It maintains stable dimension and works reliably under frequent pressure fluctuations.

Q: Can this piston seal ring handle continuous heavy load excavation operations?
A: Yes, it is specially engineered for heavy load working conditions of excavator hydraulic system.
