56D-50-13221 56D5013221 RING,WEAR OF HM300TN-1 HM300-2

Name: 56D-50-13221 56D5013221 RING,WEAR OF HM300TN-1 HM300-2
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 56D-50-13221
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 56D-50-13221

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HM300TN-1 wear ring, HM300-2 piston seal ring, 56D-50-13221 wear ring


Part No.::	56D-50-13221	Part Name::	SEAL RING
Model:	HM300-1	Machine:	Wheel Loader
Material:	Bronze Filled PTFE	Color:	BLACK

Part No.::	56D-50-13221
Part Name::	SEAL RING
Model:	HM300-1
Machine:	Wheel Loader
Material:	Bronze Filled PTFE
Color:	BLACK

Product Description

1. Quick Details of seal 56D-50-13221:

Part NO.	56D-50-13221
Machine	Wheel Loader
Size	OEM
Material	Bronze filled PTFE
Type	RING SEAL

2. 56D-50-13221 parts on group :

56D-50-13221 56D5013221 RING,WEAR OF HM300TN-1 HM300-2

NO.	PART NO.	PRAT NAME	QTY
1	56D-50-13111	CYLINDER	1
2	56D-50-13122	ROD	1
3	56D-50-13161	FLANGE	1
	566-50-11301	VALVE ASSEMBLY	1
4	566-50-11320	VALVE	1
5	281-50-11721	CORE,VALVE	1
6	566-50-11340	CAP	1
7	07000-11006	O-RING	1
8	566-50-11271	VALVE	1
9	566-50-11350	PACKING	2
10	567-50-11450	BEARING	2
11	56D-50-13250	BOOT	4
12	07177-01135	BUSHING	1
13	07000-15140	O-RING	1
14	07001-05140	RING,BACK-UP	1
15	56D-50-13180	RING	1
16	56D-50-13190	SEAL	1
17	56D-50-13170	PACKING	1
18	01010-81070	BOLT	14
19	01643-31032	WASHER	14
20	07281-12169	CLAMP	1
21	56D-50-13240	GUARD	1
22	56D-50-13210	COVER	1
23	01010-81020	BOLT	2
24	01643-31032	WASHER	2
25	567-50-41290	BOSS	2
26	04260-01270	BALL	2
27	56D-50-13221	RING,WEAR	1
28	56D-50-13151	PISTON	1
29	01011-81000	BOLT	8
30	01643-51032	WASHER	8

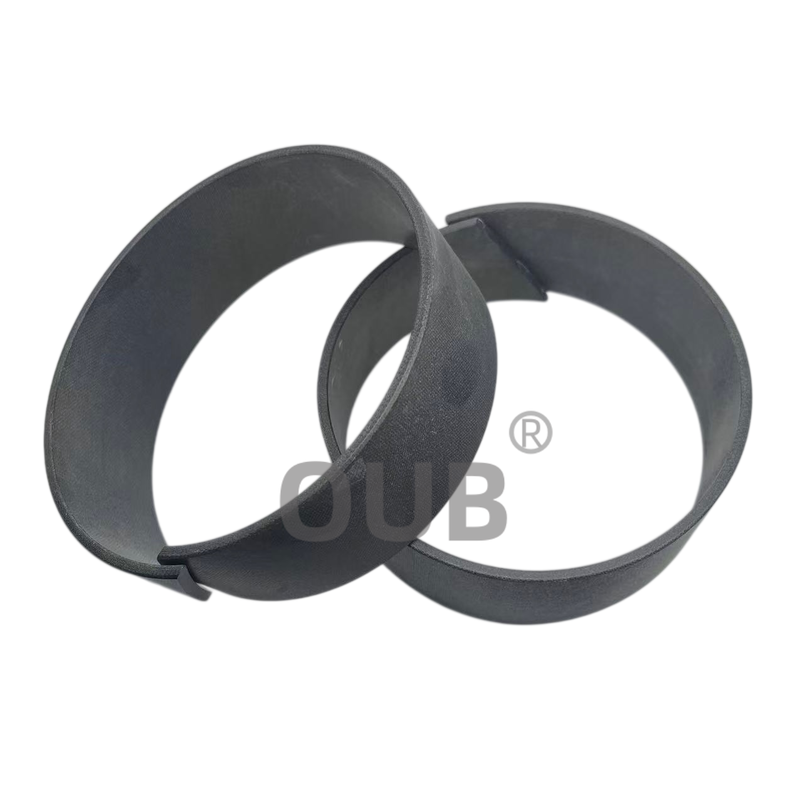

3. 56D-50-13221 picture:

56D-50-13221 56D5013221 RING,WEAR OF HM300TN-1 HM300-2
4. Service part number :

PART NO.	PART NO.	Part NO.
707-51-14110	707-98-25870	707-98-36630
707-51-14130	707-98-25910	707-98-36700
707-51-16030	707-98-25920	707-98-36740
707-99-64120	707-99-77220	707-98-37110
707-99-64130	707-99-77240	707-98-37130
707-99-64150	707-99-77250	707-98-67110
707-99-64152	707-99-77300	707-98-26441

5. FAQ

Q: What heavy-duty construction machine does part number 56D-50-13221 fit?
A: Part number 56D-50-13221 is made for wheel loader hydraulic cylinder piston assembly.

Q: Could you confirm the official part name and classification of 56D-50-13221?
A: The part name is piston seal ring and it belongs to piston seal ring category.

Q: What material is selected to manufacture this piston seal ring?
A: It uses bronze filled PTFE which delivers great wear resistance under high pressure.

Q: What is the main working function of this piston seal ring in hydraulic cylinder?
A: It blocks internal hydraulic oil leakage and maintains pressure difference on two sides of piston.

Q: Where is this piston seal ring assembled on the hydraulic piston?
A: It is fitted into the outer annular groove on the piston outer circumference.

Q: What are the key advantages of bronze filled PTFE for this seal ring?
A: It has low friction and strong load bearing capacity under cyclic impact loads.

Q: Can this seal ring adapt to frequent loading and unloading work of wheel loader?
A: Yes, it is designed to endure repeated load changes in wheel loader hydraulic circuit.

Q: Is this spare part suitable for wheel loader hydraulic cylinder overhaul project?
A: Yes, it is a common replacement spare part for wheel loader cylinder overhaul.
