Products

Home > Products > Piston Seal Rings > 175-63-12250 1756312250 RING,PISTON OF D155A-1 D150A-1

175-63-12250 1756312250 RING,PISTON OF D155A-1 D150A-1

Name: 175-63-12250 1756312250 RING,PISTON OF D155A-1 D150A-1
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 175-63-12250
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 175-63-12250

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                D155A-1 piston seal ring, D150A-1 piston ring, heavy-duty piston seal ring


Part No.::	175-63-12250	Part Name::	SEAL RING
Model:	D155A-1	Machine:	Bulldozer
Material:	Bronze Filled PTFE	Color:	BLACK

Part No.::	175-63-12250
Part Name::	SEAL RING
Model:	D155A-1
Machine:	Bulldozer
Material:	Bronze Filled PTFE
Color:	BLACK

Product Description

1. Quick Details of seal 175-63-12250:

Part NO.	175-63-12250
Machine	Bulldozer
Size	OEM
Material	Bronze filled PTFE
Type	RING SEAL

2. 175-63-12250 parts on group :

175-63-12250 1756312250 RING,PISTON OF D155A-1 D150A-1

NO.	PART NO.	PRAT NAME	QTY
1	175-63-12141	CYLINDER	1
1	175-63-12140	CYLINDER	1
2	07000-12055	O-RING	1
3	07000-13022	O-RING	1
4	175-63-12130	HEAD	1
5	07146-02136	RING,BACK-UP	1
6	07000-12135	O-RING	1
7	07177-07030	BUSHING	1
8	154-63-42373	PACKING	1
8	154-63-42371	U-PACKING	1
8	154-63-42370	PACKING	1
9	07000-13090	O-RING	1
10	07178-07042	GLAND	1
11	07177-07015	BUSHING	1
12	07016-00708	SEAL,DUST	1
13	07179-00093	RING	1
14	01010-31650	BOLT	2
15	01602-01648	WASHER	2
16	01010-32470	BOLT	4
16	01010-32475	BOLT	4
17	01602-02472	WASHER	4
18	175-63-12120	ROD	1
19	07137-05008	BUSHING	1
20	04065-01140	RING,SNAP	2
21	07000-03050	O-RING	2
22	07164-01408	RETAINER	2
23	07151-01445	PISTON	1
24	175-63-12250	RING,PISTON	2
24	07161-00140	RING,PISTON	2
27	07155-01435	RING	1
28	07165-14547	NUT	1
29	175-63-12370	PLATE	1
29	175-61-12140	PLATE	1
30	01010-31245	BOLT	1
31	01602-01236	WASHER	1
32	175-63-12172	TUBE,L.H.	1
32	175-61-14241	TUBE,L.H.	1
33	07042-00108	PLUG	1
34	175-63-12182	TUBE,L.H.	1
34	175-61-14281	TUBE,L.H.	1
35	175-63-12271	TUBE,R.H.	1
35	175-61-14311	TUBE,R.H.	1
36	175-63-12281	TUBE,R.H.	1
36	175-61-14321	TUBE,R.H.	1
37	01010-31075	BOLT	4
38	01602-01030	WASHER	4
39	07000-13035	O-RING	1
40	01010-31240	BOLT	4
41	01602-01236	WASHER	4
42	07000-13038	O-RING	2
43	01010-31020	BOLT	2
44	01602-01030	WASHER	2
45	175-61-14390	PLATE	1
46	01010-31020	BOLT	1
47	01602-01030	WASHER	1
48	175-61-00043	VALVE ASSEMBLY	1
49	01011-31640	BOLT	1
50	01011-31610	BOLT	1
51	01602-01648	WASHER	3

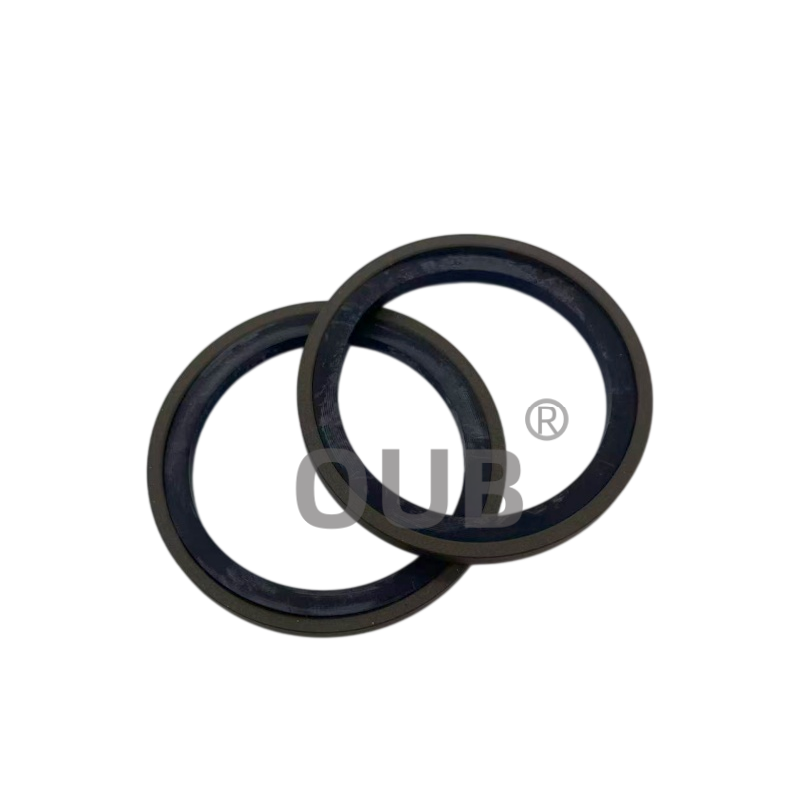

3. 175-63-12250 picture:

175-63-12250 1756312250 RING,PISTON OF D155A-1 D150A-1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-51-14110	707-98-25870	707-98-36630
707-98-38510	707-98-64400	707-98-66410
707-98-38520	707-98-64410	707-98-66410
707-98-38551	707-98-64420	707-99-46200
707-98-38600	707-98-64450	707-98-67110
707-99-64150	707-99-77250	707-51-95650
707-99-64152	707-99-77300	707-98-26441
707-99-67310	707-98-39700	707-98-67110

5. FAQ

Q: What is the part number of this piston seal ring spare part?
A: This piston seal ring spare part carries part number 175-63-12250 and belongs to piston seal ring category.

Q: What heavy construction machinery can part 175-63-12250 be installed on?
A: Part 175-63-12250 is designed and manufactured for bulldozer hydraulic cylinder assembly.

Q: What raw material is this piston seal ring made of?
A: It is produced from bronze filled PTFE with outstanding wear and extrusion resistance.

Q: What sealing task does this piston seal ring perform inside the hydraulic cylinder?
A: It prevents hydraulic oil from passing through the piston and maintains consistent pressure for blade movement.

Q: Where is this piston seal ring positioned on the bulldozer hydraulic cylinder?
A: It is fitted into the piston groove of bulldozer main lift hydraulic cylinder.

Q: What performance advantages does bronze filled PTFE bring to this seal ring?
A: It delivers good thermal conductivity and low friction under continuous heavy earthmoving loads.

Q: What pressure changes can this piston seal ring withstand during field operation?
A: It can endure sudden pressure spikes when the bulldozer pushes heavy soil and rock materials.
