23E-15-05113 23E1505113 KOMATSU GRADERS GD355A-1 GD305A-1 SERVICE KIT,TRANSMISSION

Name: 23E-15-05113 23E1505113 KOMATSU GRADERS GD355A-1 GD305A-1 SERVICE KIT,TRANSMISSION
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 23E-15-05113
Price: 34.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO 9001

Model Number: 23E-15-05113

Payment & Shipping Terms

Minimum Order Quantity: 10 Pcs/Accept trial order

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                Komatsu graders transmission service kit, GD355A-1 transmission gasket kit, GD305A-1 service kit with gasket


Part No.:	23E-15-05113	Model:	GD355A-1
Machine:	Graders	Size:	OEM
Name:	SERVICE KIT	Cylinder:	TRANSMISSION
Temperature:	+230℃	Material:	Fiberglass,SILICON,NBR,Forged Steel
Color:	Black ,white,red

Part No.:	23E-15-05113
Model:	GD355A-1
Machine:	Graders
Size:	OEM
Name:	SERVICE KIT
Cylinder:	TRANSMISSION
Temperature:	+230℃
Material:	Fiberglass,SILICON,NBR,Forged Steel
Color:	Black ,white,red

Product Description

1. Quick Details of seal 23E-15-05113 :

Part NO.	23E-15-05113
Machine	GD355A-1
Size	OEM
Material	fiberglass,rubber,forged steel
Oil seal type	TRANSMISSION,SERVICE KIT

2. 23E-15-05113 parts on group :

NO.	PART NAME	PART NAME	QTY
1	23E-15-05113	SERVICE KIT,TRANSMISSION	1
2	07000-05310	O-RING	1
3	07000-73035	O-RING	1
4	07000-73025	O-RING	1
5	07000-02065	O-RING	1
6	07000-05165	O-RING	1
7	07000-72014	O-RING	1
8	23B-15-16130	GASKET	1
9	07000-73022	O-RING	1
10	07000-72018	O-RING	1
11	07000-72021	O-RING	1
12	07000-73022	O-RING	1
13	07000-72021	O-RING	1
14	07000-72018	O-RING	1
15	07000-73038	O-RING	1
16	07000-73022	O-RING	1
17	07000-73025	O-RING	1
18	07000-73022	O-RING	1
19	07000-72018	O-RING	2
20	07000-72016	O-RING	2
21	07002-03634	O-RING	1
22	07000-73025	O-RING	1
23	07000-73045	O-RING	1
24	07000-02075	O-RING	1
25	07000-02090	O-RING	1
26	07000-02090	O-RING	3
27	07000-05355	O-RING	1
28	07000-73028	O-RING	1
29	07000-73035	O-RING	1
30	07000-02075	O-RING	1
31	113-15-29220	RING,SEAL	1
32	103-15-29210	SEAL,RING	1
33	113-15-29250	RING,SEAL	1
34	144-15-11290	RING,SEAL	2
35	103-15-29270	SEAL,RING	1
36	113-15-29250	RING,SEAL	1
37	103-15-29260	SEAL,RING	1
38	113-15-29250	RING,SEAL	1
39	103-15-29260	SEAL,RING	1
40	113-15-29250	RING,SEAL	1
41	103-15-29260	SEAL,RING	1
42	113-15-29250	RING,SEAL	1
43	125-15-39210	RING,SEAL	1
44	113-15-12861	RING,SEAL	1
45	234-15-29220	RING,SEAL	1
46	23E-15-19210	SEAL,RING	1
47	07000-02115	O-RING,RING	1
48	07000-73025	O-RING	2
49	07005-01212	GASKET	2
50	07012-11065	SEAL,OIL	1
51	23B-15-13451	GASKET	1
52	130-09-11590	SEAL,OIL	1
53	23B-15-13451	GASKET	1
54	07000-05170	O-RING	1
55	07012-10080	SEAL,OIL	1
56	07000-02135	O-RING	1
57	07000-02100	O-RING	1
58	232-15-15971	GASKET	1
59	232-15-15970	GASKET	1
60	232-15-15961	GASKET	1
61	232-15-15960	GASKET	1
62	23B-15-15952	GASKET	1
63	23B-15-15951	GASKET	1
64	23B-15-15950	GASKET	1
65	07000-73028	O-RING	2

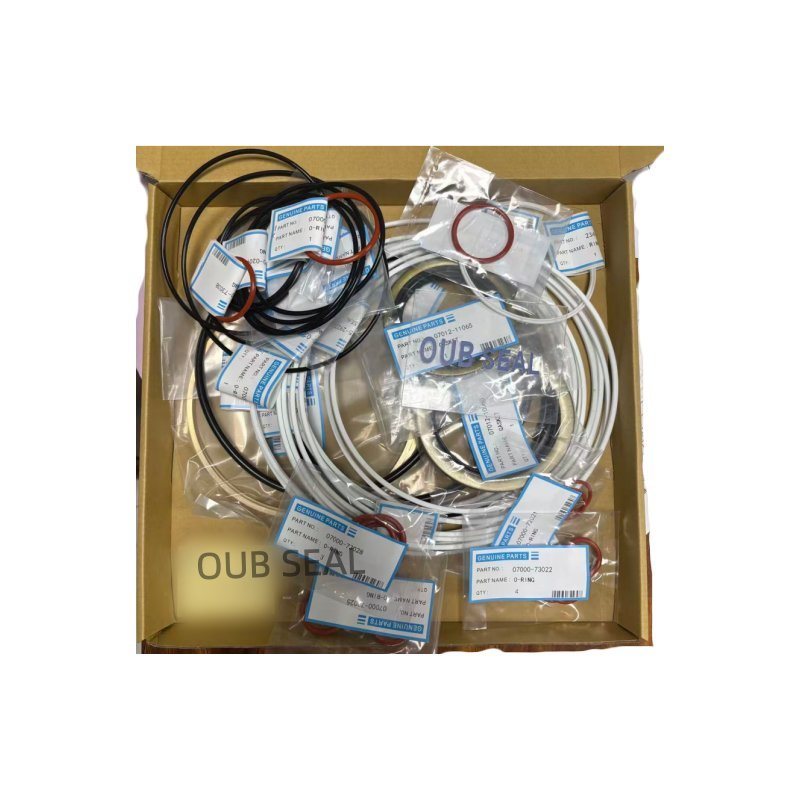

3. 23E-15-05113 picture:

23E-15-05113 23E1505113 KOMATSU GRADERS GD355A-1 GD305A-1 SERVICE KIT,TRANSMISSION 0

4. Service ring part no. :

PART NO.	PART NO.	Part NO.
23E-15-05112	56B-15-05010	707-98-37570
23E-15-05111	238-15-05110	711-28-05012
23E-15-05113	232-14-05040	561-15-05041
425-32-05010	707-98-43260	561-15-05030
56B-15-05000	707-99-14290	707-99-43270
707-99-64180	707-99-66190	707-99--37570

5. FAQ

Q:The Transmission Repair Kit contains brass rings; what material are they made of?

A: Material Composition of Synchronizer Rings

The rings are made from a specialized brass alloy to meet the high demands of the transmission environment. While brass is generally a Copper (Cu) and Zinc (Zn) alloy, the rings often include other elements to enhance their performance:

Copper (Cu): Typically the majority component, often ranging from 60% to over 80%. It provides the base material properties, including malleability and electrical conductivity (though the latter is not the primary purpose here).
Zinc (Zn): The secondary main component. Adjusting the copper-to-zinc ratio helps fine-tune the alloy's mechanical and thermal properties.
Alloying Elements: Other elements are strategically added for strength, wear resistance, and to handle specific transmission fluid chemistry.

Q: What is the function of this brass rings?

A: The primary function of the brass rings (specifically synchronizer rings or blocker rings) in a grader's transmission is to synchronize the rotational speed of the gear you are shifting into with the rotational speed of the shaft it needs to engage. This ensures a smooth, quiet, and non- destructive gear shift.

If you need more details, you can join us for further discussion.

6. Exhibition & Warehous

23E-15-05113 23E1505113 KOMATSU GRADERS GD355A-1 GD305A-1 SERVICE KIT,TRANSMISSION 1

23E-15-05113 23E1505113 KOMATSU GRADERS GD355A-1 GD305A-1 SERVICE KIT,TRANSMISSION 2

23E-15-05113 23E1505113 KOMATSU GRADERS GD355A-1 GD305A-1 SERVICE KIT,TRANSMISSION 3
