711-66-14270 7116614270 SHIM

1. Quick Details of  seal 711-66-14270 :

2. 711-66-14270 parts on group :

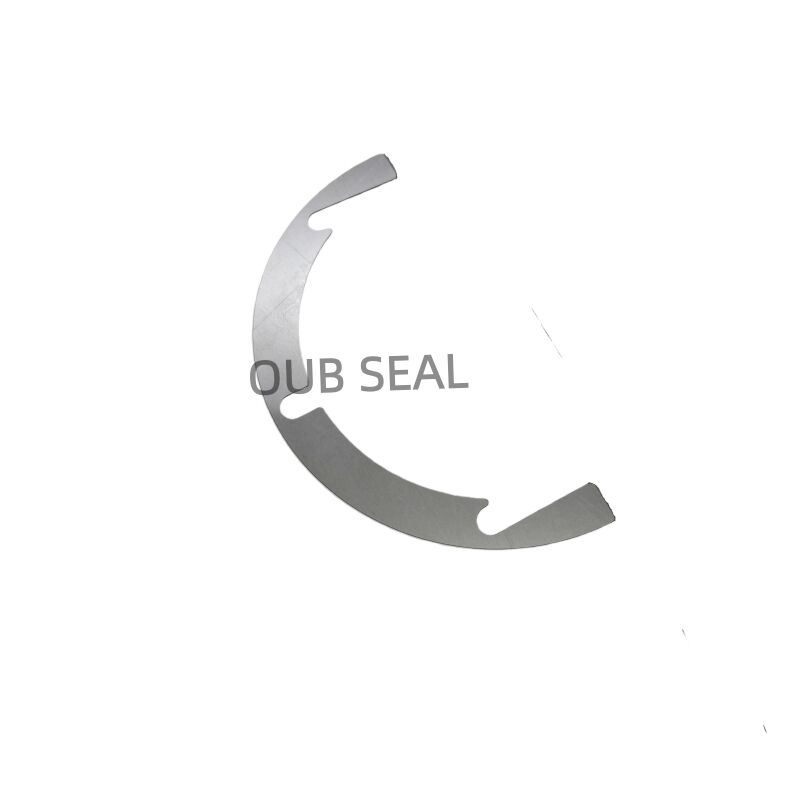

3. 711-66-14270 picture:

4. Komatsut gasket part no. :

5. FAQ

Q: Could you share with me the material of the shim ?

A:  I'd be happy to do that.It's soft stainless steel or tin-plated steel.

• Upper and lower surface layers: Two extremely thin sheets (approximately 0.1-0.3mm) of soft stainless steel or tin-plated steel. This is the "steel sheet" part you see, providing strength and a structural frame.
• Middle core layer: A layer of non-metallic material with excellent sealing and elasticity, such as flexible graphite or PTFE (polytetrafluoroethylene).
• Appearance: Like an elastic, edge-glistening "steel sheet sandwich". It can be slightly bent by hand but feels sturdy. It combines the strength of metal with the sealing properties of graphite/PTFE, making it a top choice for static sealing in heavy-duty machinery.

Q: In which position is the gasket used?

A:  In transmissions, these gaskets are primarily used for:

• the mating surfaces between the transmission housing and the valve body;
• sealing between the oil pan and the bottom of the transmission;
• sealing various side covers and end covers.

Q: What is the function of this brass rings in the transmission seal kit ?

A:  The primary function of the brass rings (specifically synchronizer rings or blocker rings) in a grader's transmission is to synchronize the   rotational speed of the gear you are shifting into with the rotational speed of the shaft it needs to engage.  This ensures a smooth, quiet, and non-   destructive gear shift.

     If you need more details, you can join us for further discussion.
