Highlight:
Wheel Loader Transmission Kit D75S-3
, Gasket Kit for D65S-6
, Transmission Kit with warranty
1. Quick Details of seal 144-15-22881:
| Part NO. |
144-15-22881 |
| Machine |
Crawler Loader |
| Size |
OEM |
| Material |
Glass-Filled PTFE |
| Type |
RING SEAL |
2. 144-15-22881 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
144-15-00101 |
TRANSMISSION ASSEMBLY |
1 |
| 2 |
145-14-11320 |
PLUG |
2 |
| 3 |
04020-01228 |
PIN,DOWEL |
2 |
| 4 |
144-874-7440 |
SHAFT |
1 |
| 5 |
06042-02209 |
BEARING |
1 |
| 6 |
04065-08530 |
RING,SNAP |
1 |
| 7 |
145-15-42280 |
RING,SNAP |
1 |
| 8 |
145-15-42160 |
GEAR |
1 |
| 9 |
04064-06525 |
RING,SNAP |
1 |
| 10 |
145-15-42380 |
CARRIER |
1 |
| 11 |
145-15-42540 |
SHAFT |
3 |
| 12 |
04260-00635 |
BALL |
3 |
| 13 |
145-15-42440 |
GEAR |
3 |
| 14 |
09232-03225 |
BEARING,NEEDLE |
3 |
| 15 |
09233-13220 |
WASHER,THRUST |
6 |
| 16 |
235-15-12570 |
WASHER,THRUST |
6 |
| 17 |
145-15-42630 |
GEAR |
1 |
| 18 |
154-15-12670 |
RING,SNAP |
1 |
| 19 |
145-15-42290 |
COVER |
1 |
| 20 |
07018-12455 |
RING,SEAL |
1 |
| 21 |
281-15-12990 |
BEARING |
1 |
| 22 |
130-09-13770 |
BEARING |
1 |
| 23 |
130-09-16890 |
RING,SNAP |
1 |
| 24 |
234-15-12350 |
RING,SEAL |
1 |
| 25 |
01010-51060 |
BOLT |
3 |
| 26 |
01602-21030 |
WASHER,SPRING |
3 |
| 27 |
145-15-42640 |
GEAR |
1 |
| 28 |
145-15-42740 |
PISTON,2ND AND 3RD |
2 |
| 29 |
144-15-22871 |
RING,SEAL (K2) |
2 |
| 30 |
144-15-22881 |
RING,SEAL (K2) |
2 |
| 31 |
145-15-42760 |
PLATE |
2 |
| 32 |
195-15-32710 |
DISC |
4 |
| 33 |
144-15-22760 |
PIN |
6 |
| 34 |
170-14-22330 |
SPRING |
12 |

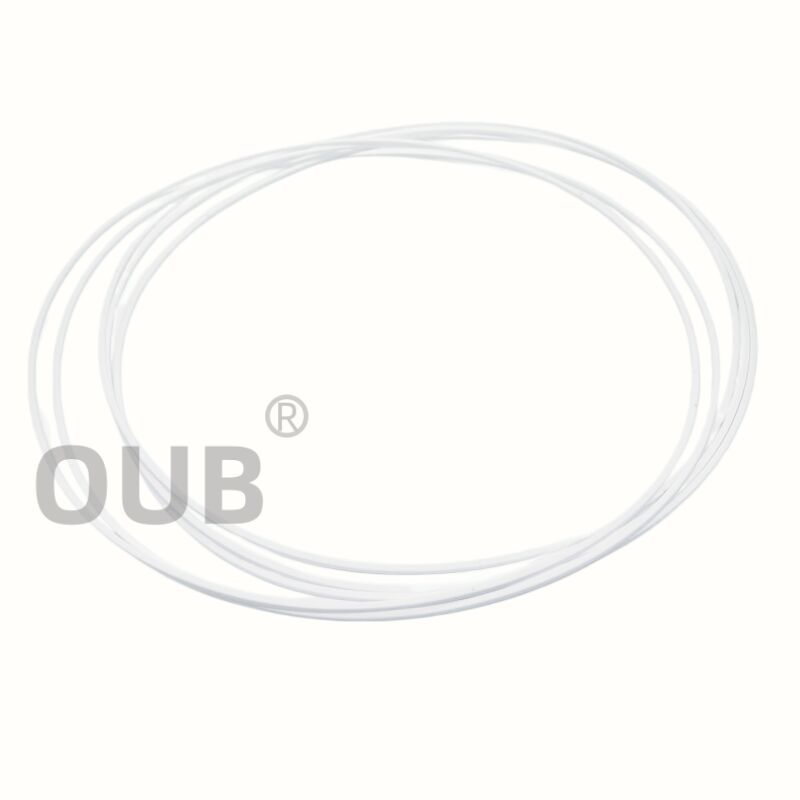

3. 144-15-22881 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-99-75490 |
707-98-54500 |
707-51-70030 |
| 707-99-75600 |
707-98-54510 |
707-51-70110 |
| 707-99-76030 |
707-98-56210 |
707-51-70211 |
| 707-99-76230 |
707-98-56600 |
707-51-75030 |
| 707-99-76260 |
707-98-56610 |
707-51-75110 |
| 707-99-76300 |
707-98-56640 |
707-51-75211 |
| 707-99-77050 |
707-98-57201 |
707-51-80030 |
| 707-99-77090 |
707-98-58200 |
707-51-80110 |
| 707-99-77120 |
707-98-58210 |
707-51-80211 |
| 707-99-77130 |
707-98-58230 |
707-51-85130 |
| 707-99-77140 |
707-98-58240 |
707-51-85030 |
| 707-99-77160 |
707-98-60100 |
707-51-85211 |
| 707-99-77190 |
707-98-60110 |
707-51-90860 |
| 707-99-77220 |
707-98-60120 |
707-51-90130 |
| 707-99-77240 |
707-98-60121 |
707-51-13130 |
5. FAQ
Q: Does the komatsu transmission installation is high cost?
A: The answer is yes.the Komatsu transmission installation is very expensive (high cost), especially for excavators/heavy machinery.Why So High?one is Komatsu OEM parts are premium-priced,second is Heavy machinery requires specialized tools & technicians,The third is Long labor time,about 10–20 hours vs 6–12 for cars.The final is Additional parts: seals, gaskets, fluid, filters.There are other details that may be encountered during the repair process, and these need to be assessed based on the actual situation.
Q: What common factors lead to gasket failure?
A: The most frequent causes are poor surface preparation, uneven bolt torque, using the wrong gasket material for the application, and reusing previously compressed gaskets.
Q: How long can a properly installed PTFE gasket last?
A: With clean surfaces and correct torque, a PTFE gasket can last for years of continuous service; it only needs replacement when the joint is disassembled for maintenance.
Q: Can I reuse a used gasket?
A: No, you should never reuse a gasket. Once compressed, the material forms a permanent compression set and will not re-seat properly, even if it appears undamaged. Always install a new gasket when reassembling the joint.
6. Exhibition and Wearhous
