711-66-16920 7116616920 GASKET KIT, D575,D475.D375

Name: 711-66-16920 7116616920 GASKET KIT, D575,D475.D375
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: D375A-1
Price: 34.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: D375A-1

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                D575 D475 D375 gasket kit, heavy equipment gasket kit, engine gasket kit with warranty


Part No.::	711-66-16920	Part Name::	GASKET
Model:	D375A-1	Machine:	Crawler Dozer
Material:	Cellulose (wood) Fibers	Color:	YELLOW
Install Parts:	TRANSMISSION

Part No.::	711-66-16920
Part Name::	GASKET
Model:	D375A-1
Machine:	Crawler Dozer
Material:	Cellulose (wood) Fibers
Color:	YELLOW
Install Parts:	TRANSMISSION

Product Description

1. Quick Details of seal 711-66-16920:

Part NO.	711-66-16920
Machine	D275,D357,D575
Size	OEM
Material	Cellulose (wood) fibers
Type	GASKET

2. 711-66-16920 parts on group :

711-66-16920 7116616920 GASKET KIT, D575,D475.D375 0

NO.	PART NO.	PRAT NAME	QTY
1	198-13-41001	T/CONVERTER ASSEMBLY	1
2	198-13-46801	VALVE ASSEMBLY	1
3	07042-80108	PLUG	1
4	14X-15-15850	PLUG	1
5	07002-63034	O-RING	1
6	566-15-12880	SPRING	1
7	195-13-00030	COVER ASSEMBLY	1
8	07042-80108	PLUG	1
9	07000-73030	O-RING (K1)	1
10	711-66-16731	PISTON	1
11	07000-72010	O-RING (K1)	1
12	01010-81025	BOLT	2
13	01643-31032	WASHER	2
14	08193-20010	CLIP	1
15	01011-81010	BOLT	6
16	01643-31032	WASHER	14
17	198-13-46910	GASKET (K1)	1
18	711-66-16920	GASKET (K1)	1
19	01011-81060	BOLT	4
20	01011-81065	BOLT	2
21	17M-911-1220	PLATE	1
22	17M-49-15260	BRACKET	1
23	198-49-62530	BRACKET	1
24	01011-81015	BOLT	2

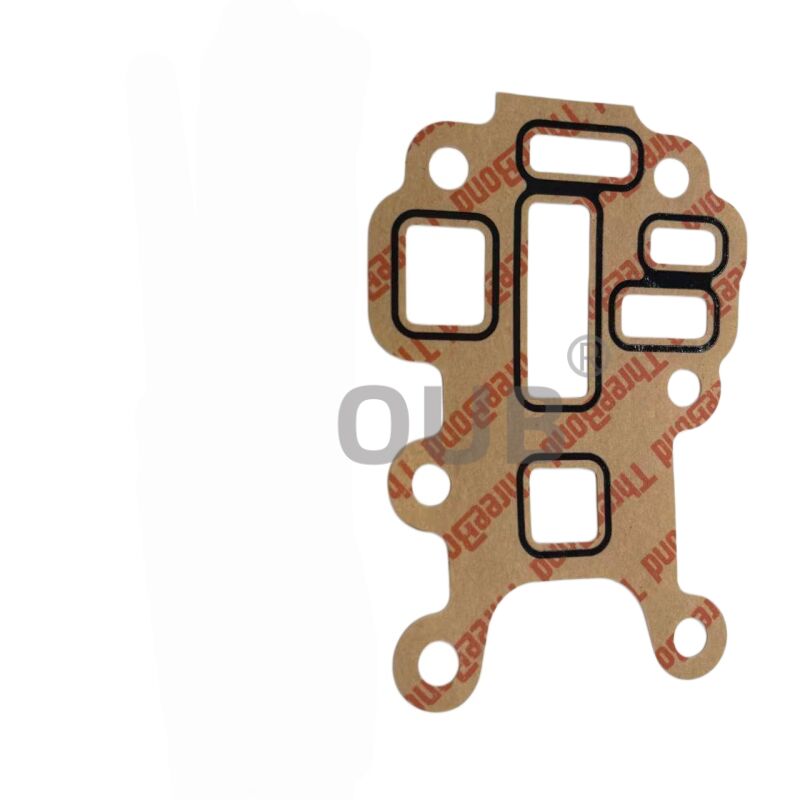

3. 711-66-16920 picture:

711-66-16920 7116616920 GASKET KIT, D575,D475.D375 1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-59680	707-51-10110	707-98-54500
707-99-59690	707-51-40650	707-51-14030
707-35-52660	707-51-45640	707-51-14080
707-35-52670	707-51-45650	707-51-14110
707-35-52690	707-51-50640	707-51-14130
707-35-52700	707-51-55630	707-51-16030
707-35-52740	707-51-55640	707-98-27100
707-35-52750	707-51-60640	707-51-16130
707-35-52760	707-51-60650	707-51-17030
707-35-52770	707-51-65630	707-51-17130
707-35-52780	707-51-65640	707-51-18030
707-35-52830	707-51-65650	707-51-18130
707-35-52860	707-51-70630	707-51-19030
707-35-52880	707-51-70650	707-51-20250
707-35-52900	707-51-75630	707-51-19640

5. FAQ

Q: Is the gasket a regular paper?

A: It looks and feel just like thick, stiff paper.However, it isn't regular paper. It is a highly engineered industrial material designed to survive hot oil and constant pressure.Depending on which part of the transmission the gasket is for (such as the main pan, the valve body, or internal oil passages), it is usually made from one of three main materials:Treated Paper / Cellulose Fiber,Rubber-Cork Composite and Molded Rubber or Silicone.

Q: What’s the correct installation process?

A: First, thoroughly clean both sealing surfaces to remove all oil, dirt, or old gasket residue. Align the new gasket precisely with fluid ports and bolt holes, then tighten the bolts evenly in a crisscross pattern to ensure uniform pressure distribution.

Q: What are common causes of gasket failure?

A: The most frequent issues are dirty or scratched mating surfaces, uneven bolt torque leading to warping, using the wrong gasket thickness, and reusing a previously compressed gasket.

Q: How long can a properly installed PTFE gasket last?

A: With clean surfaces and correct torque, it can last for years of continuous service. It only needs replacement when the joint is disassembled for maintenance.
