234-25-31142 2342531142 Construction Machinery Parts GD725A-1 GD675-3E0

1. Quick Details of  seal 234-25-31142 :

2. 234-25-31142  parts on group :

3. 234-25-31142  picture:

4. Service part number :


5. FAQ

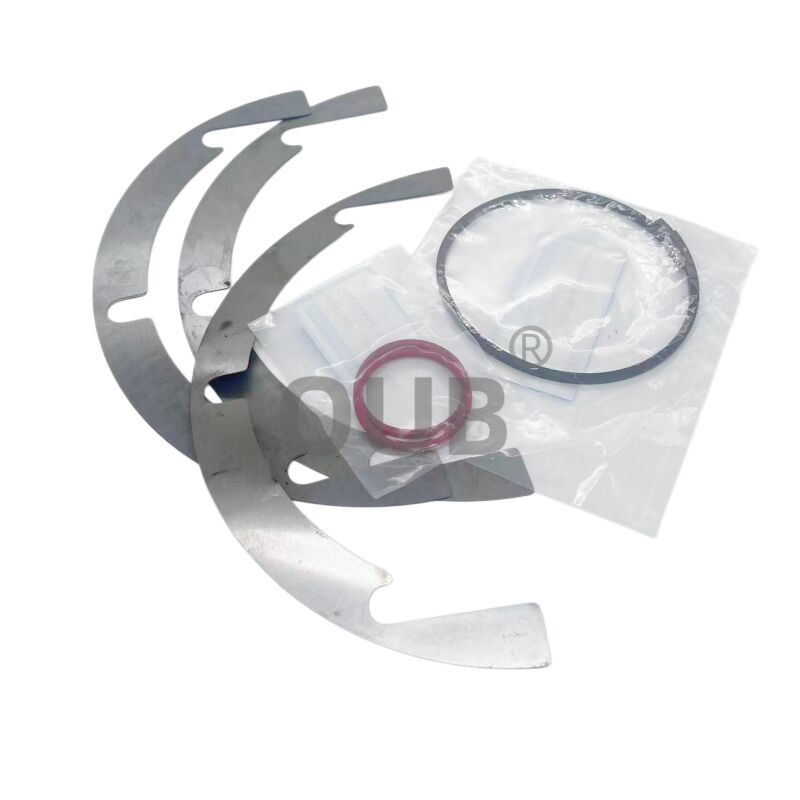

Q: What is this gasket and shim kit designed for?

A: This is a precision service kit for heavy-duty machinery, combining metal adjustment shims, a primary sealing ring, and a secondary O-ring. It’s most commonly used in wheel hubs, axle assemblies, or gearboxes to set bearing clearance, contain lubricants, and keep contaminants out of the system.

Q: What materials make up each component?

A: The crescent-shaped shims are made of high-grade spring steel or stainless steel, chosen for their consistent thickness and resistance to compression. The main sealing ring features a metal outer shell with a rubber lip, typically Nitrile (NBR) or Fluoroelastomer (FKM), while the small red O-ring is made of heat-resistant silicone or fluorosilicone rubber.

Q: Why are these materials selected for each part?

A: The steel shims offer rigid, dimensionally stable adjustment, ensuring bearing preload stays consistent even under heavy loads. The rubber lip of the main seal provides a dynamic, wear-resistant barrier against oil leaks, with NBR handling standard temperatures and FKM suited for hotter, more chemically aggressive environments. The silicone O-ring adds a reliable static seal that stays flexible in extreme heat and resists aging.

Q: What common mistakes lead to early failure?

A: Poor cleaning leaves debris that damages the seal lip or prevents the shims from seating flat. Installing the oil seal unevenly or with the wrong tool can damage the lip, causing leaks immediately. Using the wrong thickness shim results in incorrect bearing clearance, leading to excessive wear or overheating. Installing the seal backwards means the lip won’t hold lubricant in properly.

Q: How long can these parts last if installed correctly?

A: With proper installation, clean lubricant, and correct clearance settings, the oil seal can last 5,000–10,000 operating hours, while the metal shims will typically last the life of the assembly unless they are damaged during service.

Q: Can I reuse the old shims?

A: While the shims themselves don’t wear out, it’s best to use new ones if possible, especially if they are bent, scratched, or have been deformed during disassembly. Reusing old shims can lead to incorrect clearances if they are damaged, so always inspect them carefully before reuse. The oil seal, however, should always be replaced with a new one during service.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
