144-13-11270 1441311270 SHIM,0.1MM, D65A-8 D65P-11

Name: 144-13-11270 1441311270 SHIM,0.1MM, D65A-8 D65P-11
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 144-13-11270
Price: 34.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 144-13-11270

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Engine Oil Cooler Gasket Kit D65A-8, Oil Cooler Gasket Kit D65P-11, High-Quality Engine Cooler Gasket Kit


Part No.::	144-13-11270	Model:	D65A-6
Size:	0.1 Mm	Part Name::	SHIM
Fits For:	TORQUECONVERTER	Machine:	Bulldozers
Material:	High-strength Spring Steel	Color:	GREY

Part No.::	144-13-11270
Model:	D65A-6
Size:	0.1 Mm
Part Name::	SHIM
Fits For:	TORQUECONVERTER
Machine:	Bulldozers
Material:	High-strength Spring Steel
Color:	GREY

Product Description

1. Quick Details of seal 144-13-11270:

Part NO.	144-13-11270
Machine	Bulldozers
Size	0.1 mm
Material	High-strength spring steel
Oil seal type	Shim

2. 144-13-11270 parts on group :

144-13-11270 1441311270 SHIM,0.1MM, D65A-8 D65P-11 0

NO.	PART NO.	PRAT NAME	QTY
1	144-13-11212	CASE	1
2	144-13-11240	BEARING	1
3	145-13-21690	HOLDER	1
4	04081-04512	LOCK	1
5	01010-61025	BOLT	2
6	144-13-11250	PILOT	1
7	144-13-11270	SHIM¤ 0.1MM	2
8	144-13-11280	SHIM¤ 0.3MM	1
9	144-13-11290	SHIM¤ 0.05MM	1
10	144-13-11260	LOCK	4
11	01010-61230	BOLT	8
12	144-13-11511	TURBINE ASSEMBLY	1
13	144-13-12115	STATOR	1
14	154-13-42120	RACE	1
15	01010-61030	BOLT	12
16	01643-31032	WASHER	12
17	04064-08025	RING,SNAP	1
18	144-13-11111	PUMP ASSEMBLY	1
19	07040-10807	PLUG	2
20	01010-61030	BOLT	24
21	01643-31032	WASHER	24
22	144-13-11140	GEAR	1
23	144-13-11161	BEARING	1
24	04067-00150	RING,SNAP	1
25	144-13-11150	PLATE,LOCK (K1)	6
26	01010-61030	BOLT	12

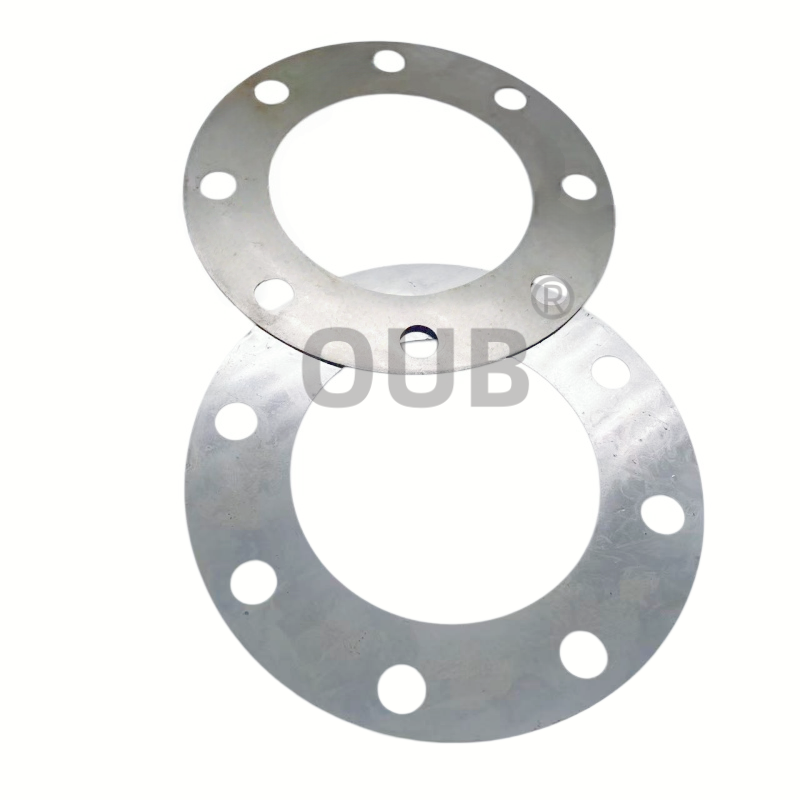

3. 144-13-11270 picture:

144-13-11270 1441311270 SHIM,0.1MM, D65A-8 D65P-11 1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-35-52670	707-51-45640	707-99-75600
707-51-45640	707-51-11640	707-51-80640
707-98-25920	707-98-36740	707-98-56640
707-98-25970	707-98-37110	707-98-57201
707-98-25980	707-98-37130	707-98-58200
707-98-26070	707-98-37300	707-98-58210
707-98-27100	707-98-25970	707-98-37110
707-51-16130	707-98-25980	707-98-37130
707-51-17030	707-98-26070	707-98-37300
707-51-17130	707-98-26100	707-98-37500
707-51-18030	707-98-26110	707-98-37510
707-51-18130	707-98-26120	707-98-37570
707-51-19030	707-98-26200	707-98-37580
707-51-70650	707-51-85030	707-51-11050
707-99-77240	707-98-61100	707-35-52700

5. FAQ

Q: What's the purpose of the shim in the transmission seal kit?
A: In heavy machinery transmissions, parts must line up perfectly. Even a microscopic gap can cause premature wear, fluid leaks, or shifting issues. This shim serves two primary functions:

Setting End Play (Axial Clearance): It is used to adjust the exact spacing between bearings, shafts, and the torque converter case.
Custom Tuning: When mechanics rebuild a transmission, they measure the gaps. They use a combination of different shim thicknesses (like the 0.1mm, 0.3mm, and your 0.05mm shim) to stack together until the fit is exactly within Komatsu's strict technical specifications.

Q: Why this shim is needed in the transmission kit ?

A: Whenever you open the torque converter or transmission to replace the rubber O-rings and seals, the spacing changes slightly just from tightening the bolts down again. komsu includes these shims in the service kit so you have the correct parts on hand to adjust the clearance back to factory spec during reassembly.

And the last tip: Do not throw it away or bend it. Even though it feels thin enough to be packaging material, it is a critical precision part of the internal gearbox assembly.

Q: How is this lock plate different from traditional fluid-sealing gaskets?
A: Unlike fiber gaskets that seal fluids, this is a mechanical locking gasket. It does not prevent leaks; instead, it physically locks fasteners in place to maintain the structural integrity of the assembly.

Q: Where is this lock plate installed?
A: It is installed under bolt heads in high-vibration powertrain components, such as transmission case covers, torque converter housings, or final drive flanges. The bolt passes through the plate’s hole, and the tab is bent over the bolt’s flat sides after tightening.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
