Highlight:
dust wiper seal kit
, WA380-3 dust seal
, D75S-5 dust wiper
1. Quick Details of seal 195-63-94170 :
| Part NO. |
195-63-94170 |
| Machine |
Bulldozer |
| Size |
OEM |
| Material |
Low temperature resistant NBR |
| Oil seal type |
WIPER SEAL |
2. 195-63-94170 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
707-13-18270 |
CYLINDER |
1 |
| 2 |
707-76-11010 |
BUSHING |
2 |
| 3 |
707-27-18140 |
HEAD,CYLINDER |
1 |
| 4 |
707-52-90680 |
BUSHING |
1 |
| 5 |
707-51-90030 |
PACKING,ROD |
1 |
| 6 |
195-63-94170 |
SEAL,DUST |
1 |
| 7 |
07179-13104 |
RING,SNAP |
1 |
| 8 |
07000-15170 |
O-RING |
1 |
| 9 |
07146-05172 |
RING,BACK-UP |
1 |
| 10 |
01010-81865 |
BOLT |
12 |
| 11 |
01643-31845 |
WASHER |
12 |
| 12 |
707-58-90610 |
ROD,PISTON |
1 |
| 13 |
07000-12070 |
O-RING |
1 |
| 14 |
707-35-52910 |
RING,BACK-UP |
2 |
| 15 |
707-36-18400 |
PISTON |
1 |
| 16 |
707-44-18180 |
RING,PISTON |
1 |
| 17 |
07156-01822 |
RING,WEAR |
1 |
| 18 |
707-40-18070 |
SPACER |
2 |
| 19 |
01010-61240 |
BOLT |
6 |
| 20 |
707-51-90030 |
RING,BUFFER |
1 |

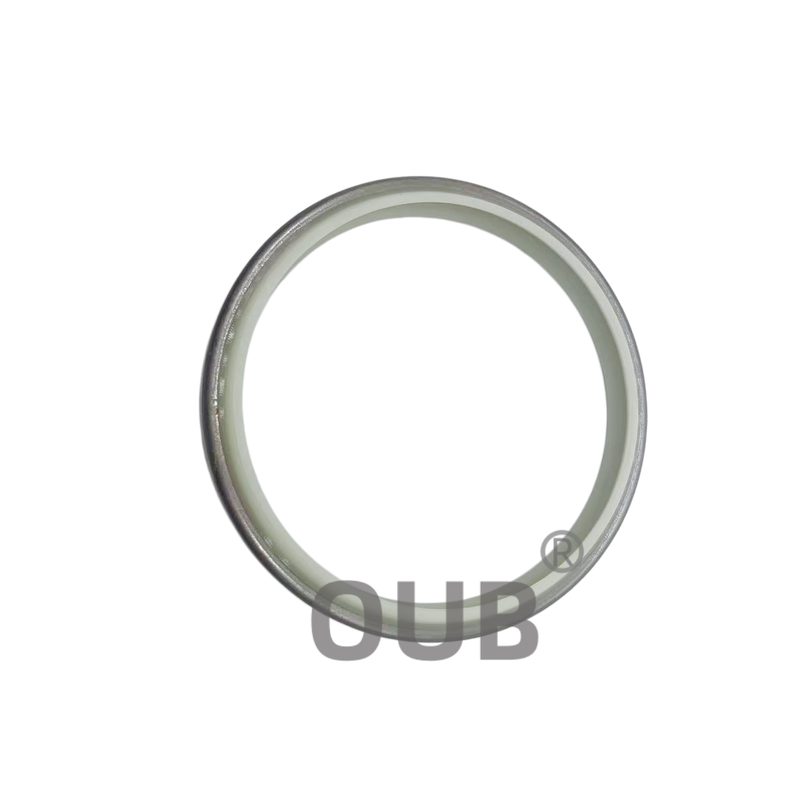

3. 195-63-94170 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-98-26110 |
707-98-37570 |
707-98-60100 |
| 707-98-25980 |
707-98-37580 |
707-98-60110 |
| 707-98-25920 |
707-98-37600 |
707-98-60120 |
| 707-98-25970 |
707-98-37610 |
707-98-60121 |
| 707-98-25980 |
707-98-37130 |
707-98-58200 |
| 707-98-26070 |
707-98-37300 |
707-98-58210 |
| 707-51-18130 |
707-98-26120 |
707-98-37570 |
| 707-51-19030 |
707-98-26200 |
707-98-37580 |
| 707-51-20080 |
707-98-26441 |
707-98-37610 |
| 707-98-37670 |
707-98-61110 |
707-98-61110 |
| 707-51-95650 |
707-98-38520 |
707-98-37600 |
| 707-98-26600 |
707-98-38551 |
707-98-64420 |
| 707-98-26620 |
707-98-38600 |
707-98-64450 |
5. FAQ
Q: What raw materials are used for manufacturing this dust wiper seal?
A: The main dust scraping body adopts bamboo fiber reinforced PU polyurethane, matched with NBR auxiliary sealing layer and galvanized metal supporting ring for integral installation.
Q: What color features can be seen on different sections of this dust wiper seal?
A: The outer PU wiper part is dark brown, the inner rubber layer is black, and the built-in metal support ring presents silvery grey.
Q: Can this dust wiper seal be shared among different types of construction equipment?
A: It is specially produced for bulldozer lift cylinders. It cannot fit excavator bucket cylinders or wheel loader tilt cylinders with different sizes.
Q: What operating environments can this dust wiper seal adapt to?
A: It suits open-air earthmoving and mining sites with heavy sand and dust, preventing grit from entering the hydraulic cylinder and damaging internal seals.
Q: How is the temperature resistance performance of this dust wiper seal assembly?
A: It maintains stable dust scraping performance between -68°C to 355°C and resists aging under continuous outdoor all-day operation.
Q: What should operators check before installing this dust wiper seal?
A: Inspect the surface of the piston rod. Rust pits and burrs will abrade the wiper lip and weaken the dustproof effect rapidly.
Q: What practical functions can this dust wiper seal realize during equipment operation?
A: It blocks external mud, dust and gravel, avoids premature abrasion of internal hydraulic seals and effectively extends the service cycle of cylinder components.
Q: What practical time-saving advantages can field backhoe loader maintenance technicians gain from using this fully pre-matched dust wiper kit?
A: All standard wiper sizes for the whole machine’s hydraulic cylinders are pre-matched in one set without separate ordering. Staff no longer need to measure outer groove dimensions repeatedly on site, greatly accelerating cylinder disassembly and replacement work.
