07016-00908 0701600908 SEAL,DUST OF D85A-18 D80P-18

Name: 07016-00908 0701600908 SEAL,DUST OF D85A-18 D80P-18
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07016-00908
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07016-00908

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Dust wiper seal for D85A-18, Dust wiper seal for D80P-18, Dust wiper seal with part number


Part No.::	07016-00908	Model:	D85A-18
Part Name::	DUST SEAL	Machine:	Wheel Loader
Material:	Cedar Fiber Reinforced PU	Color:	WHITE

Part No.::	07016-00908
Model:	D85A-18
Part Name::	DUST SEAL
Machine:	Wheel Loader
Material:	Cedar Fiber Reinforced PU
Color:	WHITE

Product Description

1. Quick Details of seal 07016-00908 :

Part NO.	07016-00908
Machine	Wheel Loader
Size	OEM
Material	Cedar fiber reinforced PU
Oil seal type	WIPER SEAL

2. 07016-00908 parts on group :

07016-00908 0701600908 SEAL,DUST OF D85A-18 D80P-18

NO.	PART NO.	PRAT NAME	QTY
1	154-63-52145	CYLINDER	1
2	154-63-52760	BUSHING	1
3	154-63-52125	ROD,PISTON	1
4	195-63-52470	GLAND	1
5	07177-09020	BUSHING	1
6	07016-00908	SEAL,DUST	1
7	07179-00113	RING,SNAP	1
8	07000-03110	O-RING	1
9	01010-31865	BOLT	2
10	01602-01854	WASHER	2
11	154-63-52132	HEAD	1
12	07177-09035	BUSHING	1
13	154-63-52173	U-PACKING	1
14	07000-15190	O-RING	1
15	07146-05192	RING,BACK-UP	1
16	01010-63095	BOLT	4
17	01602-03075	WASHER,SPRING	4
18	154-63-52270	PISTON	1
19	07155-02045	RING,WEAR	1
20	175-63-52471	U-PACKING	2
21	175-63-52480	RETAINER	1
22	175-63-52580	RETAINER	1
23	04069-01752	RING,SNAP	1
24	154-63-52370	WASHER	1
25	07165-16264	NUT	1
26	154-63-52284	TUBE	1
27	154-63-52184	TUBE	1
28	07000-13030	O-RING	2
29	01010-30845	BOLT	4
30	01010-30860	BOLT	4
31	01602-00825	WASHER,SPRING	8
32	195-63-52871	CLIP	1
33	01010-31425	BOLT	1
34	01602-01442	WASHER,SPRING	1
35	154-63-52684	COVER	1
36	01010-31435	BOLT	3
37	01602-01442	WASHER,SPRING	3
38	01643-31445	WASHER	3

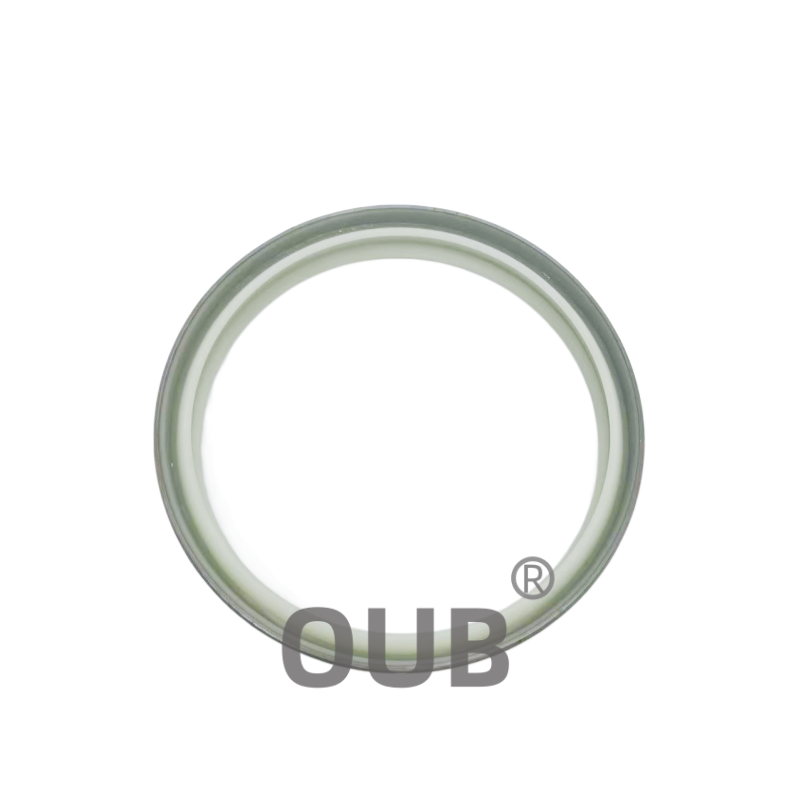

3. 07016-00908 picture:

07016-00908 0701600908 SEAL,DUST OF D85A-18 D80P-18
4. Service part number :

PART NO.	PART NO.	Part NO.
707-98-26110	707-98-37570	707-98-60100
707-98-37500	707-98-58230	707-98-58230
707-98-37510	707-98-58240	707-98-58240
707-98-37570	707-98-60100	707-98-60100
707-98-37580	707-98-60110	707-98-60110
707-98-37600	707-98-60120	707-98-60120
707-98-37610	707-98-60121	707-98-60121
707-51-19030	707-98-26200	707-98-37580
707-51-20080	707-98-26441	707-98-37610
707-98-37670	707-98-61110	707-98-61110
707-51-95650	707-98-38520	707-98-37600
707-98-26600	707-98-38551	707-98-64420

5. FAQ

Q: What materials construct this dust wiper seal assembly?
A: The main scraping lip adopts cedar fiber reinforced PU, equipped with oil-resistant NBR inner sealing layer and black coated steel reinforcing frame.

Q: What different colors can be observed on this dust wiper seal?
A: The PU scraping part is dark coffee brown, the inner rubber layer is matte black, and the embedded steel frame presents dark grey.

Q: Can this dust wiper seal be used on hydraulic cylinders of all engineering machines?
A: It is specially developed for wheel loader steering cylinders. It cannot match bulldozer lift cylinders or excavator arm cylinders of different sizes.

Q: What working scenarios fit this dust wiper seal perfectly?
A: It works well in cargo yards and sand loading sites, blocking dust, mud and debris during frequent steering movement of loaders.

Q: How is the temperature resistance of this dust wiper seal?
A: It maintains stable dust removal capacity within -70°C ~ 352°C and resists aging under continuous outdoor day-and-night operation.

Q: What inspection work needs to be done before installation?
A: Check the piston rod surface carefully. Rust spots and scratches will continuously wear the wiper lip and weaken dustproof performance.

Q: What core function can this dust wiper seal achieve during operation?
A: It stops external dirt from entering the cylinder interior, protects internal rod seals and reduces unexpected hydraulic maintenance frequency.

Q: What practical time-saving advantages can field backhoe loader maintenance technicians gain from using this fully pre-matched dust wiper kit?
A: All standard wiper sizes for the whole machine’s hydraulic cylinders are pre-matched in one set without separate ordering. Staff no longer need to measure outer groove dimensions repeatedly on site, greatly accelerating cylinder disassembly and replacement work.
