Home > Products > Oil Seal Kits > 130-09-11352 1300911352 SEAL,OIL SHAFT OF D50P-15 D50S-15

130-09-11352 1300911352 SEAL,OIL SHAFT OF D50P-15 D50S-15

Name: 130-09-11352 1300911352 SEAL,OIL SHAFT OF D50P-15 D50S-15
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 130-09-11352
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 130-09-11352

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                D50P-15 oil shaft seal, D50S-15 oil shaft seal, oil seal kit with warranty


Part No.::	130-09-11352	Part Name::	SEAL LIP
Machine:	Bulldozer	Material:	FKM Rubber
Color:	BLACK	Model:	D50S-15

Part No.::	130-09-11352
Part Name::	SEAL LIP
Machine:	Bulldozer
Material:	FKM Rubber
Color:	BLACK
Model:	D50S-15

Product Description

1. Quick Details of seal 130-09-11352:

Part NO.	130-09-11352
Machine	Bulldozer
Size	659514mm
Material	FKM rubber
Oil seal type	SEAL LIP

2. 130-09-11352 parts on group :

130-09-11352 1300911352 SEAL,OIL SHAFT OF D50P-15 D50S-15

NO.	PART NO.	PRAT NAME	QTY
3	131-21-52130	BOLT	8
3	130-21-12132	BOLT	8
4	130-21-12140	LOCK	4
5	01582-01613	NUT	8
5	01500-31613	NUT	8
6	131-21-44160	PLATE	1
7	131-21-44170	PLATE	1
8	131-21-44181	PIN	1
8	131-21-44180	PIN	1
9	01010-30814	BOLT	2
9	01000-30814	BOLT	2
10	131-21-52220	SHAFT	1
10	131-21-42220	SHAFT	1
11	131-21-42230	CAGE	2
12	06000-32215	BEARING	2
13	130-09-11352	SEAL (KIT)	2
13	130-09-11351	SEAL (KIT)	2
14	07000-15140	O-RING (KIT)	2
14	131-21-42140	O-RING (KIT)	2
15	130-21-12313	NUT	2
16	131-21-52320	NUT	2
16	131-21-42150	NUT	2
17	131-21-44120	CAGE	1
18	131-21-44130	COVER	1
19	131-21-44140	SPACER	1
20	01010-31245	BOLT	6
21	01602-01236	WASHER	6
22	130-09-31180	BEARING	1
23	130-09-34120	BEARING	1
24	131-21-44150	NUT	1
25	131-21-44190	PIN	1
26	131-21-44210	SCREW	1
27	131-21-05010	SHIM ASSEMBLY	1

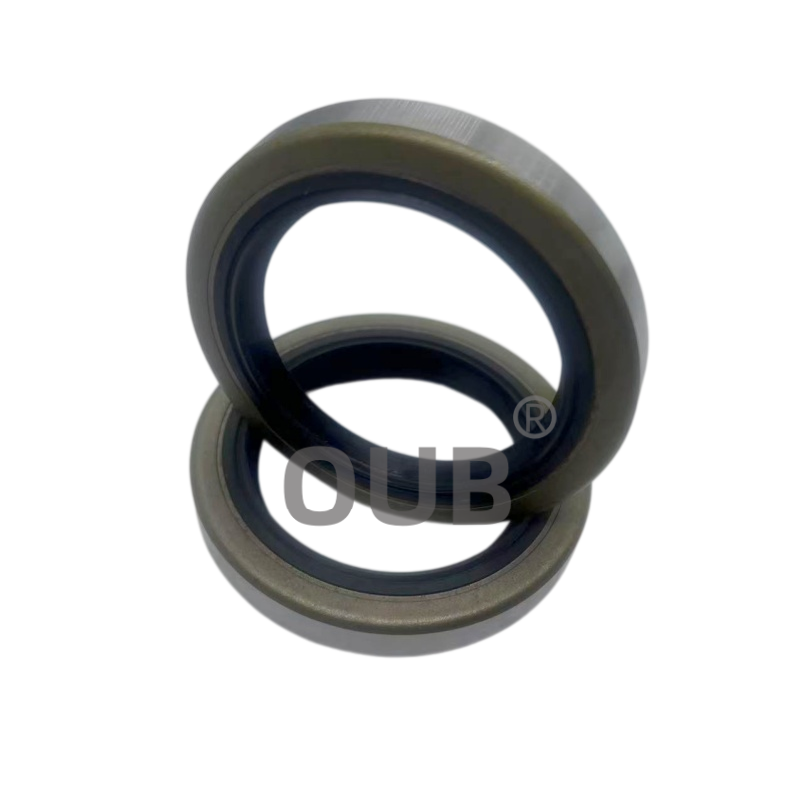

3. 130-09-11352 picture:

130-09-11352 1300911352 SEAL,OIL SHAFT OF D50P-15 D50S-15
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-99-75470	707-98-62120
707-99-73140	707-98-36700	707-98-26520
707-98-37690	707-98-62120	707-51-18130
707-51-17130	707-98-26100	707-51-10030
707-51-18030	707-98-26110	707-51-10110
707-51-18130	707-98-26120	707-51-10130
707-51-19030	707-98-26200	707-51-10211
707-98-39611	707-98-67100	707-51-11030
707-99-59430	707-99-64250	707-99-77190
707-99-46120	707-99-64120	707-99-77220

5. FAQ

Q: What construction equipment does part number 130‑09‑11352 apply to?
A: Part number 130‑09‑11352 oil seal kit is manufactured for bulldozer brake control circuit overhaul and field service.

Q: What raw materials are adopted for the 130‑09‑11352 oil seal kit?
A: 130‑09‑11352 oil seal kit adopts pressure‑resistant FKM rubber sealing lip paired with solid cold‑rolled stamped steel shell.

Q: What core sealing task does this oil seal kit accomplish after installation?
A: It maintains hydraulic pressure inside brake control circuit, prevents brake fluid leakage and blocks fine dirt from entering pipeline joints.

Q: Where is this oil seal kit assembled on the bulldozer?
A: It is installed at the multi‑joint sealing positions of bulldozer brake control circuit manifold assembly.

Q: What risk will scratch damage bring to electrophoretic coated shell?
A: Once the coating layer is scratched off, bare steel will corrode gradually, which may lead to seal loosening and unexpected oil leakage.

Q: How well can this full sealing kit block mud, gravel dust and hot gear oil mist on muddy outdoor road job sites?
A: The multi-layer flexible rubber lip scrapes thick mud off the shaft surface, the fully enclosed plated metal shell blocks coarse dust particles, and inner auxiliary rubber layers isolate high-temperature oil mist to protect internal precision gears.
