130-09-12650 1300912650 SEAL (KIT) OF D150A-1

Name: 130-09-12650 1300912650 SEAL (KIT) OF D150A-1
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 130-09-12650
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 130-09-12650

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                D150A-1 oil seal kit, 130-09-12650 oil seal, 1300912650 seal kit


Part No.::	130-09-12650	Part Name::	SEAL LIP
Machine:	Bulldozer	Material:	FKM Rubber
Color:	BLACK	Model:	D150A-1

Part No.::	130-09-12650
Part Name::	SEAL LIP
Machine:	Bulldozer
Material:	FKM Rubber
Color:	BLACK
Model:	D150A-1

Product Description

1. Quick Details of seal 130-09-12650:

Part NO.	130-09-12650
Machine	bulldozer
Size	10513514mm
Material	FKM rubber
Oil seal type	SEAL LIP

2. 130-09-12650 parts on group :

130-09-12650 1300912650 SEAL (KIT) OF D150A-1

NO.	PART NO.	PRAT NAME	QTY
1	170-14-42111	SHAFT	1
1	170-14-42110	SHAFT	1
2	01010-31235	BOLT	3
2	01040-31235	BOLT	3
3	170-14-14151	LOCK (KIT)	1
4	175-14-14120	HOLDER	1
5	07000-02060	O-RING (KIT)	1
6	07000-02095	O-RING (KIT)	1
7	170-14-42140	COUPLING	1
8	170-14-42130	COVER	1
9	130-09-12650	SEAL (KIT)	1
10	01010-31045	BOLT	6
10	01040-31045	BOLT	6
11	01602-01030	WASHER	6
12	170-14-42120	CAGE	1
13	07000-05200	O-RING (KIT)	2
14	175-14-14160	HOLDER	1
15	170-22-11130	RING	1
16	170-14-49110	BEARING	1
17	170-14-42260	COLLAR	1
17	170-14-31120	COLLAR	1
18	170-14-42150	GEAR	1
19	170-14-42160	GEAR	1
20	170-14-42190	COLLAR	1
21	170-14-42170	GEAR	1
22	170-14-14250	BUSHING	4
23	175-14-15560	COLLAR	1
24	175-14-15550	RACE	1
25	170-14-14281	GEAR	1
26	170-14-14291	GEAR, 22 TEETH	1
27	170-14-42181	GEAR	1
27	170-14-42180	GEAR	1
28	170-14-42210	RACE	1
29	170-14-42220	COLLAR	1
30	170-14-42230	COLLAR	1
31	170-14-42270	COLLAR	1
31	175-14-14230	COLLAR	1
32	04000-00515	KEY	1
33	130-09-13171	BEARING	1
34	175-14-14242	PIN	1
34	175-14-14241	PIN	1
34	175-14-14240	PIN	1
35	170-14-43220	SCREW	1
35	170-14-14470	SCREW	1
36	170-14-14414	NUT	1
37	170-14-14420	PIN	1
38	170-14-14430	BRACKET	1
39	170-14-14440	LOCK (KIT)	3
40	01010-30820	BOLT	6
40	01000-30820	BOLT	6
41	07043-00312	PLUG	1

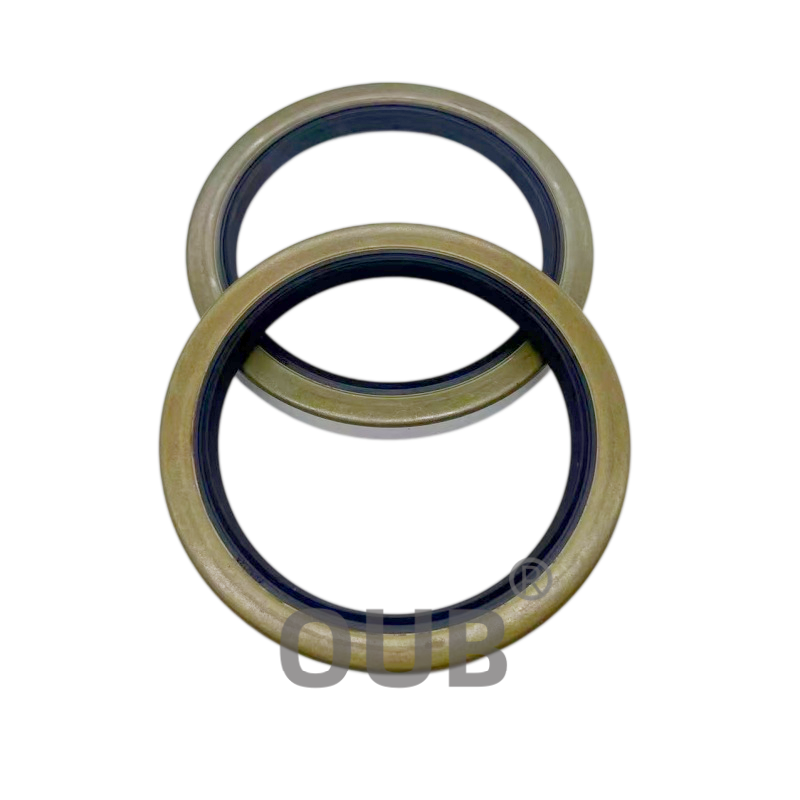

3. 130-09-12650 picture:

130-09-12650 1300912650 SEAL (KIT) OF D150A-1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-99-75470	707-98-62120
707-98-26620	707-51-11050	707-51-18030
707-98-27100	707-51-11890	707-51-18130
707-51-16130	707-51-12030	707-51-19030
707-51-17030	707-51-12860	707-51-20250
707-51-17130	707-98-26100	707-98-37500
707-51-20250	707-98-26580	707-98-38520

5. FAQ

Q: What construction machinery does part number 130-09-12650 oil seal kit fit for?
A: Part number 130-09-12650 oil seal kit is manufactured for bulldozer steering clutch drum assembly disassembly check and leakage maintenance.

Q: What materials are used to produce the 130-09-12650 oil seal kit?
A: 130-09-12650 oil seal kit adopts heat-resistant FKM rubber sealing lip and high rigidity cold-rolled stamped steel shell.

Q: What core sealing task does this kit perform?
A: It seals the gap between clutch drum and housing bore, prevents steering clutch oil leakage and blocks site mud and grit from contaminating clutch friction plates.

Q: Where is this oil seal kit mounted on the bulldozer?
A: It is installed in the sealing groove of bulldozer steering clutch drum inside the steering clutch housing.

Q: How well can this full sealing kit block mud, gravel dust and hot gear oil mist on muddy outdoor road job sites?
A: The multi-layer flexible rubber lip scrapes thick mud off the shaft surface, the fully enclosed plated metal shell blocks coarse dust particles, and inner auxiliary rubber layers isolate high-temperature oil mist to protect internal precision gears.
