Home > Products > Oil Seal Kits > 07430-11260 0743011260 SEAL,OIL OF HD680-2 HD785-2

07430-11260 0743011260 SEAL,OIL OF HD680-2 HD785-2

Name: 07430-11260 0743011260 SEAL,OIL OF HD680-2 HD785-2
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07430-11260
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07430-11260

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HD680-2 oil seal kit, HD785-2 oil seal kit, 07430-11260 oil seal


Part No.::	07430-11260	Part Name::	SEAL LIP
Machine:	Bulldozer	Material:	NBR Rubber
Color:	BLACK	Model:	WA600-1H

Part No.::	07430-11260
Part Name::	SEAL LIP
Machine:	Bulldozer
Material:	NBR Rubber
Color:	BLACK
Model:	WA600-1H

Product Description

1. Quick Details of seal 07430-11260:

Part NO.	07430-11260
Machine	bulldozer
Size	OEM
Material	NBR rubber
Oil seal type	SEAL LIP

2. 07430-11260 parts on group :

07430-11260 0743011260 SEAL,OIL OF HD680-2 HD785-2

NO.	PART NO.	PRAT NAME	QTY
1	702-23-25600	ROTARY SEAL ASSEMBLY	1
1	702-13-21610	CASE	1
2	702-13-21620	BEARING,NEEDLE	1
3	06120-02520	BEARING,NEEDLE	1
4	07430-11260	SEAL,OIL	1
5	702-13-21650	SHAFT	1
6	04010-00519	KEY	1
7	07016-10256	SEAL,DUST	1
8	701-51-32170	PLATE	1
9	01010-50820	BOLT	2
10	01602-00825	WASHER,SPRING	2
12	01010-50835	BOLT	1
13	01602-00825	WASHER,SPRING	1
14	702-13-36630	COVER	1
15	07000-42065	O-RING	1
16	01010-50830	BOLT	4
17	01602-20825	WASHER,SPRING	4
18	07000-43042	O-RING	1
19	430-07-23560	BOLT	4
20	01602-20825	WASHER,SPRING	4
21	702-23-21270	TUBE	1
22	6631-51-9580	BOLT,JOINT	3
23	07000-42012	O-RING	6
24	07378-10500	HEAD	1
25	07000-53022	O-RING	1
26	07371-30500	FLANGE,SPLIT	2
27	01010-50830	BOLT	4
28	01602-20825	WASHER,SPRING	4
29	702-23-25400	CASE ASSEMBLY	1
30	07000-43035	O-RING	1
31	07000-43030	O-RING	1
32	07000-53028	O-RING	2
33	07000-41009	O-RING	2
34	702-23-21490	BOLT	4
35	709-80-52500	VALVE ASSEMBLY,RELIEF	1

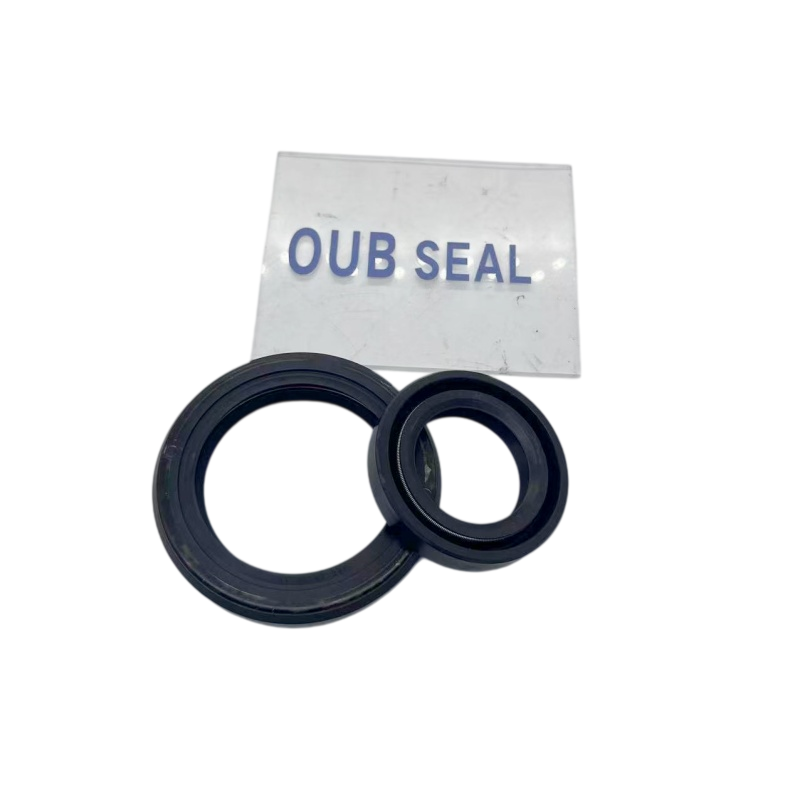

3. 07430-11260 picture:

07430-11260 0743011260 SEAL,OIL OF HD680-2 HD785-2
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-99-75470	707-98-62120
707-98-26620	707-98-36590	707-98-54510
707-98-25970	707-51-10211	707-51-14130
707-51-16030	707-51-11030	707-51-16030
707-98-27100	707-51-11110	707-98-27100
707-51-16130	707-51-13130	707-51-12110
707-51-17030	707-99-66600	707-99-73020
707-98-26560	707-98-38500	707-98-27100
707-98-26570	707-98-38510	707-98-38600
707-99-46120	707-99-64120	707-99-77220

5. FAQ

Q: What construction machine does part number 07430-11260 oil seal kit suit?
A: Part number 07430-11260 oil seal kit is made for bulldozer travel motor port assembly disassembly inspection and hydraulic oil leakage service.

Q: What raw materials are selected to produce the 07430-11260 oil seal kit?
A: 07430-11260 oil seal kit uses anti-aging NBR rubber sealing lip and galvanized stamped steel shell with excellent rust-proof performance.

Q: What is the core sealing purpose of this oil seal kit?
A: It seals the connection port of travel motor, stops hydraulic oil leaking from oil passage joints and prevents dirt and muddy water from entering the hydraulic oil circuit.

Q: Where is this oil seal kit installed on the bulldozer?
A: It is fitted at the oil inlet and outlet port flange of bulldozer travel motor housing.

Q: How well can this full sealing kit block mud, gravel dust and hot gear oil mist on muddy outdoor road job sites?
A: The multi-layer flexible rubber lip scrapes thick mud off the shaft surface, the fully enclosed plated metal shell blocks coarse dust particles, and inner auxiliary rubber layers isolate high-temperature oil mist to protect internal precision gears.
