07016-00407 0701600407 SEAL,DUST OF BR100JG-2 BC100-1

Name: 07016-00407 0701600407 SEAL,DUST OF BR100JG-2 BC100-1
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07016-00407
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07016-00407

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                dust wiper seal for BR100JG-2, dust wiper seal BC100-1, dust wiper seal with warranty


Part No.::	07016-00407	Model:	D20P-5A
Part Name::	DUST SEAL	Machine:	Grader
Material:	PU	Color:	BLACK

Part No.::	07016-00407
Model:	D20P-5A
Part Name::	DUST SEAL
Machine:	Grader
Material:	PU
Color:	BLACK

Product Description

1. Quick Details of seal 07016-00407 :

Part NO.	07016-00407
Machine	grader
Size	OEM
Material	PU
Oil seal type	WIPER SEAL

2. 07016-00407 parts on group :

07016-00407 0701600407 SEAL,DUST OF BR100JG-2 BC100-1

NO.	PART NO.	PRAT NAME	QTY
1	201-30-24111	ROD	2
2	01010-31230	BOLT	8
3	01602-01236	WASHER	8
4	103-30-24160	PISTON	2
5	07155-00410	RING	4
6	09370-00040	U-PACKING	2
7	04064-02512	RING	2
8	201-30-24151	SPACER	2
9	201-30-24131	CYLINDER	2
10	201-30-27420	SPRING,(WITH SEMI-DOUBLE SHOE)	2
10	201-30-24190	SPRING,(WITH TRIPLE SHOE)	2
10A	201-30-27410	SPACER,(WITH SEMI-DOUBLE SHOE)	2
11	201-30-24160	FRAME	2
12	201-30-24180	COVER	2
13	01010-31845	BOLT	8
14	01643-31845	WASHER	8
15	07016-00407	SEAL	2
16	07177-04025	BUSHING	2
17	201-30-24170	SPACER	2
18	04065-05220	RING	2
19	07959-20000	VALVE	2
20	10G-30-14110	PLATE	2
21	01010-30816	BOLT	4
22	01602-00825	WASHER	4

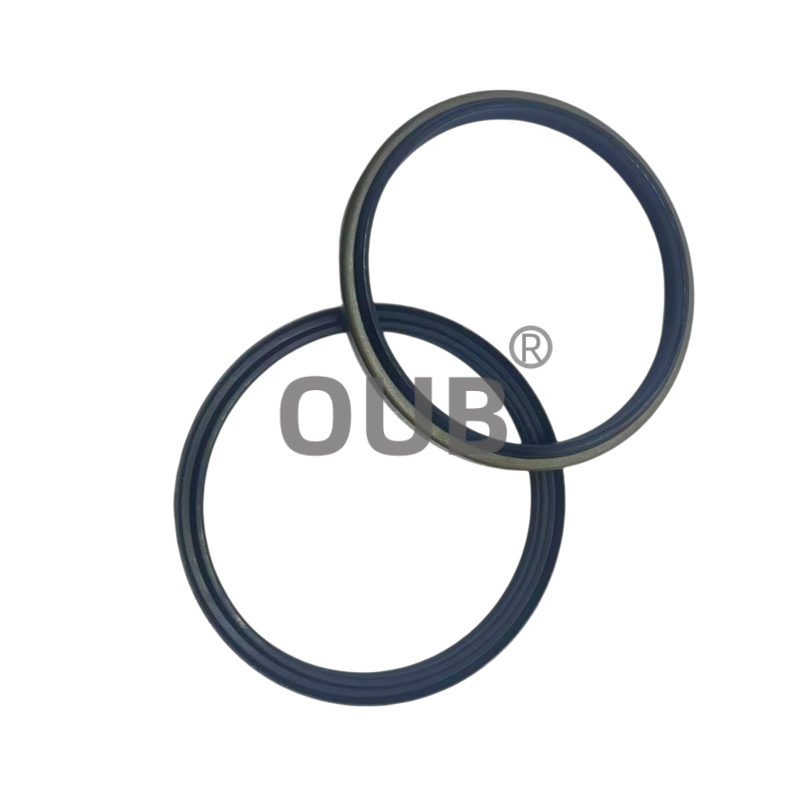

3. 07016-00407 picture:

07016-00407 0701600407 SEAL,DUST OF BR100JG-2 BC100-1
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-99-75470	707-98-62120
707-51-10110	707-98-26570	707-98-38510
707-51-75110	707-98-38510	707-98-64420
707-99-67070	707-99-74010	707-51-14110
707-99-67090	707-99-74020	707-51-14130
707-99-67110	707-99-74120	707-51-16030
707-51-12860	707-51-17030	707-98-26070
707-98-26560	707-51-17130	707-98-26100
707-98-26570	707-98-38551	707-98-38600

5. FAQ

Q: What construction machine does part number 07016-00407 dust seal fit for?
A: Part number 07016-00407 dust seal is developed for grader hydraulic cylinder rod protection and wiping off foreign debris on sliding piston rod.

Q: What raw materials are used to produce the 07016-00407 dust seal?
A: 07016-00407 dust seal adopts high tough PU rubber wiper lip and embedded metal insert, resisting deformation under repeated reciprocating motion.

Q: What is the main function of this dust seal?
A: It scrapes away dust, mud and fine sand on piston rod when the rod extends outward, preventing abrasive particles from entering cylinder and damaging the inner oil seal set.

Q: Where will this dust seal be installed on the grader?
A: It is pressed into the outermost groove of grader cylinder head, located right at the port where piston rod slides in and out of hydraulic cylinder.

Q: How well can this dual-barrier dust wiper assembly resist heavy mud, fine construction dust and suspended external floating grit in long-time outdoor working environments?
A: The outer elastic lip scrapes large mud clumps off the rod surface, and the inner PTFE liner blocks tiny dust particles and backflow oil mist from sneaking into cylinder sealing gaps, forming double dust protection.

Q: What practical time-saving advantages can field backhoe loader maintenance technicians gain from using this fully pre-matched dust wiper kit?
A: All standard wiper sizes for the whole machine’s hydraulic cylinders are pre-matched in one set without separate ordering. Staff no longer need to measure outer groove dimensions repeatedly on site, greatly accelerating cylinder disassembly and replacement work.
