Products

Home > Products > Dust Wiper Seals > 07016-00457 0701600457 SEAL,DUST OF D20Q-5 D21S-5

07016-00457 0701600457 SEAL,DUST OF D20Q-5 D21S-5

Name: 07016-00457 0701600457 SEAL,DUST OF D20Q-5 D21S-5
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07016-00457
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07016-00457

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Dust Wiper Seal for D20Q-5, Dust Wiper Seal for D21S-5, D20Q-5 dust seal replacement


Part No.::	07016-00457	Model:	D41PF-6
Part Name::	DUST SEAL	Machine:	Grader
Material:	NBR	Color:	BLACK

Part No.::	07016-00457
Model:	D41PF-6
Part Name::	DUST SEAL
Machine:	Grader
Material:	NBR
Color:	BLACK

Product Description

1. Quick Details of seal 07016-00457 :

Part NO.	07016-00457
Machine	grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 07016-00457 parts on group :

07016-00457 0701600457 SEAL,DUST OF D20Q-5 D21S-5

NO.	PART NO.	PRAT NAME	QTY
1	111-63-32142	CYLINDER	1
2	111-63-32250	BUSHING	1
3	07145-00055	SEAL	2
4	111-63-32131	HEAD,CYLINDER	1
5	07146-02076	RING	1
6	07000-12075	O-RING (KIT)	1
7	07177-04530	BUSHING	1
8	111-63-32331	U-PACKING (KIT)	1
9	01040-31640	BOLT	4
10	01602-01648	WASHER	4
11	07178-04535	GLAND	1
12	07177-04512	BUSHING	1
13	07016-00457	SEAL	1
14	07000-13060	O-RING (KIT)	1
15	01040-31240	BOLT	2
16	01602-01236	WASHER	2
17	111-63-32122	ROD	1
	111-63-32121	ROD	1
18	07143-20404	BUSHING	1
19	07145-00040	SEAL	2
20	111-63-32171	PISTON	1
	111-63-32170	PISTON	1
21	07155-00820	RING	1
22	07157-00806	PACKING (KIT)	2
23	111-63-32471	RETAINER	2
	111-63-32470	RETAINER	2
24	07165-03033	NUT	1
	111-63-32570	NUT	1
25	07179-00064	RING	1

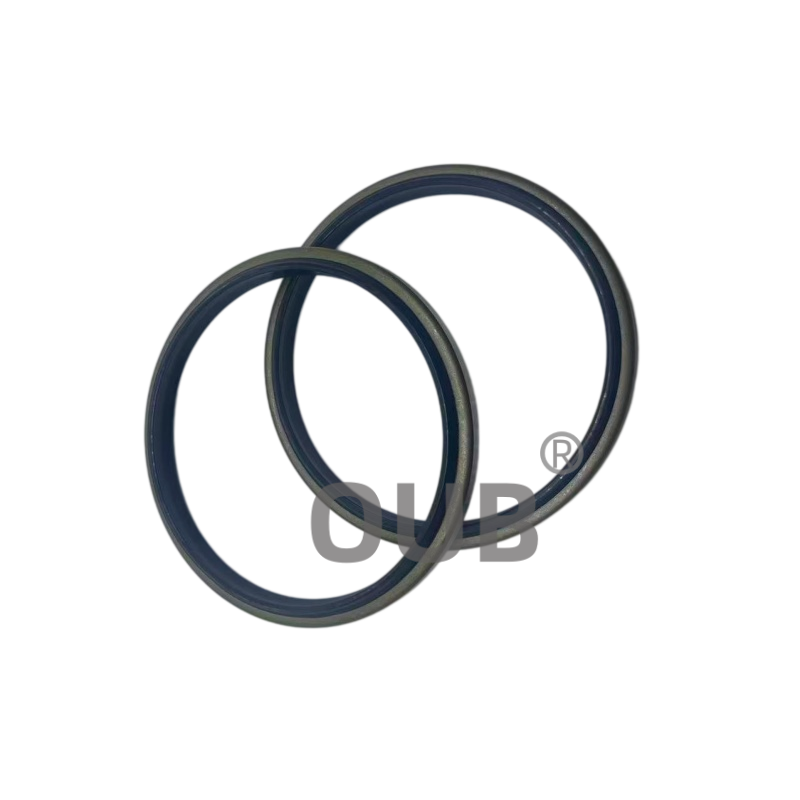

3. 07016-00457 picture:

07016-00457 0701600457 SEAL,DUST OF D20Q-5 D21S-5
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-99-75470	707-98-62120
707-51-10110	707-98-37690	707-98-62120
707-51-75110	707-98-38500	707-98-62131
707-99-67070	707-98-38510	707-98-64400
707-99-67090	707-98-38520	707-98-64410
707-99-67110	707-99-74120	707-51-16030
707-51-12860	707-51-17030	707-98-26070
707-98-26560	707-51-17130	707-98-26100
707-98-26570	707-98-38551	707-98-38600

5. FAQ

Q: What construction machine does part number 07016-00457 dust seal suit for?
A: Part number 07016-00457 dust seal is specially manufactured for grader hydraulic cylinder rod protection and clearing contaminants on reciprocating piston rod.

Q: What raw materials make up the 07016-00457 dust seal?
A: 07016-00457 dust seal uses flexible NBR rubber wiping lip and built-in metal insert, it maintains structural rigidity under continuous back-and-forth rod movement.

Q: What core job does this wiper dust seal do?
A: It scrapes off fine dust, sticky mud and tiny gravel on the piston rod surface, stopping abrasive particles from going into the cylinder and destroying internal sealing assemblies.

Q: Where will this dust seal be fitted on the grader?
A: It is installed in the outermost recess of grader hydraulic cylinder head, at the outer opening where piston rod slides in and out of the cylinder barrel.

Q: What kind of working conditions can this dust seal withstand?
A: It can keep stable wiping effect when grader conducts road base leveling in arid dusty ground and rainy muddy construction areas.

Q: How well can this dual-barrier dust wiper assembly resist heavy mud, fine construction dust and suspended external floating grit in long-time outdoor working environments?
A: The outer elastic lip scrapes large mud clumps off the rod surface, and the inner PTFE liner blocks tiny dust particles and backflow oil mist from sneaking into cylinder sealing gaps, forming double dust protection.

Q: What practical time-saving advantages can field backhoe loader maintenance technicians gain from using this fully pre-matched dust wiper kit?
A: All standard wiper sizes for the whole machine’s hydraulic cylinders are pre-matched in one set without separate ordering. Staff no longer need to measure outer groove dimensions repeatedly on site, greatly accelerating cylinder disassembly and replacement work.
