Dust wiper seal for CS360SD-2
, Dust wiper seal CS360-1
, 07016-00507 dust seal
1. Quick Details of seal 07016-00507 :
| Part NO. |
07016-00507 |
| Machine |
grader |
| Size |
OEM |
| Material |
NBR |
| Oil seal type |
WIPER SEAL |
2. 07016-00507 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
12F-63-13142 |
CYLINDER,L.H. |
1 |
| 1 |
12F-63-13242 |
CYLINDER,R.H. |
1 |
| 2 |
12F-63-13130 |
HEAD,CYLINDER |
1 |
| 3 |
07177-05030 |
BUSHING |
1 |
| 4 |
236-63-62173 |
PACKING,ROD |
1 |
| 5 |
07000-12075 |
O-RING |
1 |
| 6 |
07146-02076 |
RING,BACK-UP |
1 |
| 7 |
01010-31645 |
BOLT |
4 |
| 8 |
01602-01648 |
WASHER,SPRING |
4 |
| 9 |
07178-15030 |
GLAND |
1 |
| 10 |
07177-05012 |
BUSHING |
1 |
| 11 |
07000-03065 |
O-RING |
1 |
| 12 |
07016-00507 |
SEAL,DUST |
1 |
| 13 |
07179-00069 |
RING,SNAP |
1 |
| 14 |
01010-31240 |
BOLT |
2 |
| 15 |
01602-01236 |
WASHER,SPRING |
2 |
| 16 |
12F-63-13120 |
ROD,PISTON |
1 |
| 19 |
04065-07025 |
RING,SNAP |
2 |
| |
12F-63-13060 |
PISTON ASSEMBLY |
1 |
| 20 |
12F-63-13160 |
PISTON |
1 |
| 21 |
130-63-12364 |
VALVE,PISTON |
2 |
| 22 |
130-63-12464 |
SEAT,VALVE |
4 |
| 23 |
20R-63-56280 |
U-PACKING,PISTON |
2 |
| 24 |
07155-00820 |
RING,WEAR |
1 |
| 25 |
12F-63-13260 |
RETAINER |
2 |
| 26 |
12F-63-13360 |
SLIDER |
2 |
| 27 |
130-63-12760 |
PIN |
2 |
| 28 |
07165-12729 |
NUT,NYLON |
1 |
| 29 |
12F-63-13460 |
COLLAR |
1 |
| 30 |
12F-63-13180 |
TUBE,L.H. |
1 |
| 30 |
12F-63-13280 |
TUBE,R.H. |
1 |
| 31 |
12F-63-13170 |
ELBOW |
1 |
| 32 |
07000-13025 |
O-RING |
2 |
| 33 |
01010-30845 |
BOLT |
4 |
| 34 |
01010-30835 |
BOLT |
4 |
| 35 |
01602-00825 |
WASHER,SPRING |
8 |
| 36 |
07283-12236 |
CLIP |
1 |
| 37 |
01599-01011 |
NUT |
2 |
| 38 |
01643-31032 |
WASHER |
2 |
| 39 |
12F-63-13190 |
PLATE |
1 |
| 40 |
12F-63-13290 |
COLLAR |
1 |
| 41 |
01012-31240 |
BOLT |
1 |
| 42 |
01590-01215 |
NUT |
1 |
| 43 |
04050-13022 |
PIN,COTTER |
1 |

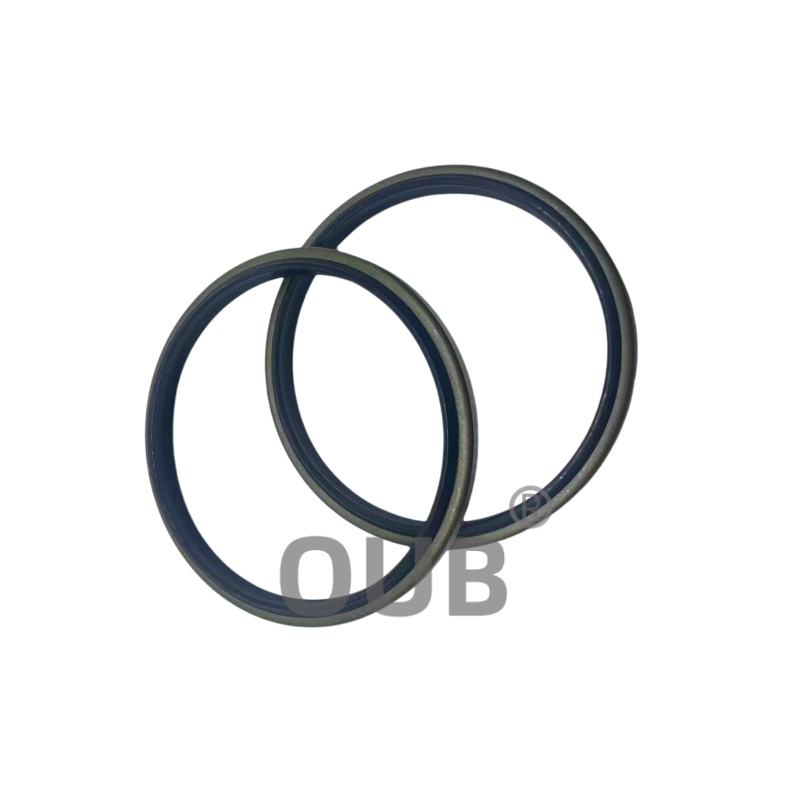

3. 07016-00507 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-99-67760 |
707-99-75470 |
707-98-62120 |
| 707-51-10110 |
707-98-37690 |
707-98-62120 |
| 707-51-75110 |
707-98-38500 |
707-98-62131 |
| 707-99-67070 |
707-98-26580 |
707-98-38520 |
| 707-99-67090 |
707-98-26600 |
707-98-38551 |
| 707-99-67110 |
707-98-26620 |
707-98-38600 |
| 707-51-12860 |
707-51-17030 |
707-98-26070 |
| 707-98-26560 |
707-51-17130 |
707-98-26100 |
5. FAQ
Q: What construction machine does part number 07016-00507 dust seal fit for?
A: Part number 07016-00507 dust seal is produced for grader hydraulic cylinder rod protection and wiping off impurities on the sliding piston rod.
Q: What raw materials are used to manufacture the 07016-00507 dust seal?
A: 07016-00507 dust seal is made of high wear-resistant PU rubber wiper lip and rigid metal casing, resisting deformation under frequent reciprocating strokes.
Q: What is the core function of this dust wiper seal?
A: It clears away dust, clay and fine grit on piston rod surface when the rod extends outwards, blocking abrasive contaminants from entering cylinder and protecting the inner oil seals.
Q: Where will this dust seal be mounted on the grader?
A: It is pressed into the outermost groove of grader cylinder head, located at the outer port where piston rod slides in and out of the hydraulic cylinder barrel.
Q: What working site environment can this dust seal adapt to?
A: It maintains consistent wiping performance when grader carries out road leveling work in dry dusty areas and low-lying muddy construction sites.
Q: What product category does this spare part belong to?
A: It belongs to dust seal, a wiper sealing component designed to stop external dirt from entering grader hydraulic cylinder assembly.
Q: How well can this dual-barrier dust wiper assembly resist heavy mud, fine construction dust and suspended external floating grit in long-time outdoor working environments?
A: The outer elastic lip scrapes large mud clumps off the rod surface, and the inner PTFE liner blocks tiny dust particles and backflow oil mist from sneaking into cylinder sealing gaps, forming double dust protection.
Q: What practical time-saving advantages can field backhoe loader maintenance technicians gain from using this fully pre-matched dust wiper kit?
A: All standard wiper sizes for the whole machine’s hydraulic cylinders are pre-matched in one set without separate ordering. Staff no longer need to measure outer groove dimensions repeatedly on site, greatly accelerating cylinder disassembly and replacement work.
