07016-00558 0701600558 SEAL,DUST (KIT) OF D20P-3 D20A-3

Name: 07016-00558 0701600558 SEAL,DUST (KIT) OF D20P-3 D20A-3
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07016-00558
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07016-00558

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Dust wiper seal kit, D20P-3 dust seal, D20A-3 dust wiper


Part No.::	07016-00558	Model:	D21P-3
Part Name::	DUST SEAL	Machine:	Grader
Material:	NBR	Color:	BLACK

Part No.::	07016-00558
Model:	D21P-3
Part Name::	DUST SEAL
Machine:	Grader
Material:	NBR
Color:	BLACK

Product Description

1. Quick Details of seal 07016-00558 :

Part NO.	07016-00558
Machine	grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 07016-00558 parts on group :

07016-00558 0701600558 SEAL,DUST (KIT) OF D20P-3 D20A-3

NO.	PART NO.	PRAT NAME	QTY
1	101-30-21132	ARM	2
2	07046-03520	PLUG	2
3	01010-31230	BOLT	8
4	01602-01236	WASHER,SPRING	8
5	101-30-21351	BOLT	2
6	01602-01236	WASHER,SPRING	2
7	101-30-34380	BOLT	2
8	01582-01210	NUT	2
9	01602-01236	WASHER,SPRING	2
10	101-30-34331	CYLINDER	2
11	101-30-34360	LUBRICATOR	2
12	101-30-21232	BRACKET	2
13	101-30-34390	COVER	2
14	04065-07025	RING,SNAP	2
15	101-30-34140	SPACER	2
16	07016-00558	SEAL,DUST	2
19	04064-02512	RING,SNAP	2
20	101-30-34210	PACKING	2
21	101-30-34220	RING,PISTON	4
22	101-30-34131	SHAFT	2
23	01010-31020	BOLT	8
24	01602-01030	WASHER,SPRING	8
25	01010-31430	BOLT	12
26	01602-01442	WASHER,SPRING	12
27	04020-01228	PIN,DOWEL	4
28	101-30-21192	SPRING	2
29	101-30-34351	SHAFT	2
30	101-30-11223	SEAT,SPRING	2
31	01580-02218	NUT	4
32	101-30-34371	COVER	2
	101-30-34370	COVER	2
33	01010-30816	BOLT	4
34	01602-00825	WASHER,SPRING	4

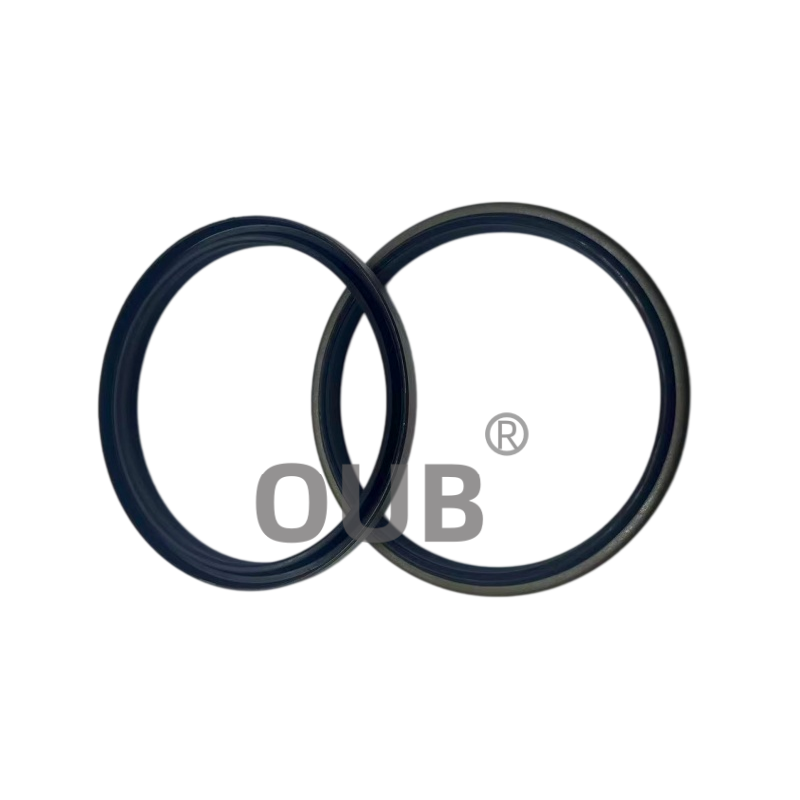

3. 07016-00558 picture:

07016-00558 0701600558 SEAL,DUST (KIT) OF D20P-3 D20A-3
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-99-75470	707-98-62120
707-51-10110	707-98-37690	707-98-62120
707-51-75110	707-98-38500	707-98-62131
707-99-67070	707-98-26580	707-98-38520
707-99-67090	707-98-26600	707-98-38551
707-99-67110	707-98-26620	707-98-38600
707-51-12860	707-51-17030	707-98-26070
707-98-26560	707-98-26580	707-98-38520
707-98-26570	707-98-26600	707-98-38551
707-99-46120	707-98-26620	707-98-38600

5. FAQ

Q: What construction machine does part number 07016-00558 dust seal suit for?
A: Part number 07016-00558 dust seal is engineered for grader hydraulic cylinder rod protection and removing surface contaminants on the sliding piston rod.

Q: What raw materials are adopted for the 07016-00558 dust seal?
A: 07016-00558 dust seal uses elastic NBR rubber wiping lip paired with sturdy metal shell, keeping stable shape under repeated back and forth piston rod motion.

Q: What is the core function of this wiper dust seal?
A: It scrapes off dry dust, sticky mud and tiny rock fragments on piston rod surface, preventing these abrasive particles from penetrating into cylinder and damaging inner sealing components.

Q: Where will this dust seal be installed on the grader?
A: It is pressed into the outermost groove of grader hydraulic cylinder head, sitting at the entrance where piston rod extends and retracts from cylinder barrel.

Q: How well can this dual-barrier dust wiper assembly resist heavy mud, fine construction dust and suspended external floating grit in long-time outdoor working environments?
A: The outer elastic lip scrapes large mud clumps off the rod surface, and the inner PTFE liner blocks tiny dust particles and backflow oil mist from sneaking into cylinder sealing gaps, forming double dust protection.

Q: What practical time-saving advantages can field backhoe loader maintenance technicians gain from using this fully pre-matched dust wiper kit?
A: All standard wiper sizes for the whole machine’s hydraulic cylinders are pre-matched in one set without separate ordering. Staff no longer need to measure outer groove dimensions repeatedly on site, greatly accelerating cylinder disassembly and replacement work.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
