07016-01109 0701601109 SEAL,DUST OF HD205-3 HD180-4

Name: 07016-01109 0701601109 SEAL,DUST OF HD205-3 HD180-4
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07016-01109
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07016-01109

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                dust wiper seal for HD205-3, dust wiper seal for HD180-4, dust wiper seal with part number


Part No.::	07016-01109	Model:	HD785-1
Part Name::	DUST SEAL	Machine:	Motor Grader
Material:	NBR	Color:	BLACK

Part No.::	07016-01109
Model:	HD785-1
Part Name::	DUST SEAL
Machine:	Motor Grader
Material:	NBR
Color:	BLACK

Product Description

1. Quick Details of seal 07016-01109 :

Part NO.	07016-01109
Machine	Motor grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 07016-01109 parts on group :

07016-01109 0701601109 SEAL,DUST OF HD205-3 HD180-4

NO.	PART NO.	PRAT NAME	QTY
1	568-63-23141	CYLINDER	1
2	569-63-22880	BUSHING	2
3	707-73-13010	RING	2
4	568-63-23130	HEAD	1
5	568-63-22190	BUSHING	1
6	568-63-22180	PACKING	1
7	568-63-22570	SEAL	1
8	568-63-23160	PLATE	1
9	01010-52010	BOLT	8
10	01602-22060	WASHER	8
11	07000-15250	O-RING	1
12	07001-05250	RING	1
13	568-63-23241	CYLINDER	1
14	568-63-22280	PACKING	1
15	568-63-22390	BUSHING	1
16	568-63-22670	SEAL	1
17	568-63-22770	RING	1
18	568-63-22480	RING	1
19	568-63-23270	RING	1
20	568-63-23341	CYLINDER	1
21	568-63-22380	PACKING	1
22	07177-01140	BUSHING	1
23	07016-01109	SEAL	1
24	07179-00135	RING	1
25	568-63-22580	RING	1
26	568-63-23370	RING	1
27	568-63-23122	ROD	1
28	07020-00675	FITTING	1
29	568-63-23171	PISTON	1
30	07155-01640	RING	1
31	07161-10160	RING	1
32	01124-82260	STUD	5
33	07165-12222	NUT	5

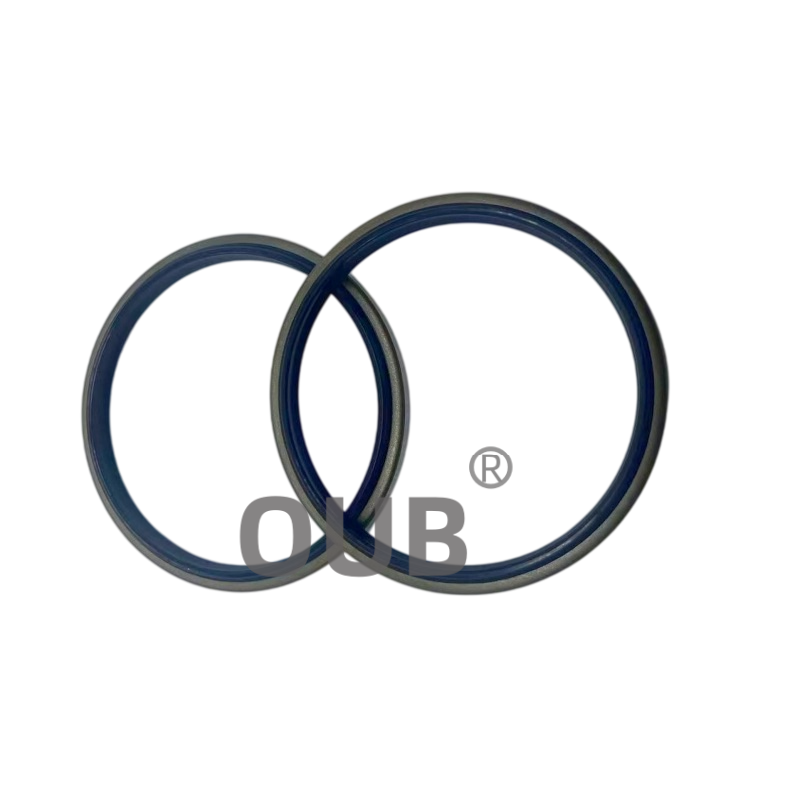

3. 07016-01109 picture:

07016-01109 0701601109 SEAL,DUST OF HD205-3 HD180-4
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-99-75470	707-98-62120
707-51-10110	707-98-37690	707-98-62120
707-98-38520	707-98-26620	707-98-38600
707-98-38551	707-98-26720	707-98-39610
707-99-67090	707-98-26820	707-98-39611
707-99-67110	707-98-26900	707-98-39700
707-51-12860	707-98-26570	707-98-38510
707-98-26560	707-98-26580	707-98-38520

5. FAQ

Q: Could you tell me the part number of this hydraulic dust seal spare part?
A: The part number is 07016-01109, it is a dust seal for motor grader.

Q: What construction machinery can adopt part number 07016-01109 dust seal?
A: 07016-01109 dust seal is designed for motor grader hydraulic cylinder piston rod assembly.

Q: What raw materials are used for this dust seal production?
A: It uses wear-resistant PU base body and elastic NBR rubber to form the sealing lip.

Q: What is the main function of this dust seal?
A: It blocks road dust, fine gravel and splashing mud to keep contaminants out of hydraulic cylinder.

Q: Where will this dust seal be mounted on the motor grader?
A: It is embedded in the gland groove of cylinder head around the outer piston rod.

Q: What are the key performance highlights of this dust seal?
A: It features stable elasticity under temperature fluctuation and low friction during rod reciprocation.

Q: What product category does this spare part belong to?
A: It falls into dust seal category, one core component of hydraulic sealing system.

Q: Is this dust seal suitable for continuous road grading and maintenance work?
A: Yes, it can maintain reliable sealing performance under long time road construction operation.
