Home > Products > Dust Wiper Seals > 07016-20708 0701620708 SEAL,DUST OF D60P-8 D60P-11

07016-20708 0701620708 SEAL,DUST OF D60P-8 D60P-11

Name: 07016-20708 0701620708 SEAL,DUST OF D60P-8 D60P-11
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07016-20708
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07016-20708

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Dust Wiper Seal for D60P-8, D60P-11 Dust Wiper Seal, Dust Seal with OEM part number


Part No.::	07016-20708	Model:	D65P-8
Part Name::	DUST SEAL	Machine:	Wheel Loader
Material:	NBR	Color:	WHITE

Part No.::	07016-20708
Model:	D65P-8
Part Name::	DUST SEAL
Machine:	Wheel Loader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 07016-20708 :

Part NO.	07016-20708
Machine	Wheel Loader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 07016-20708 parts on group :

07016-20708 0701620708 SEAL,DUST OF D60P-8 D60P-11

NO.	PART NO.	PRAT NAME	QTY
1	203-63-52540	CYLINDER	1
2	203-63-52520	ROD,PISTON	1
3	707-27-11290	HEAD,CYLINDER	1
3	707-27-11271	HEAD,CYLINDER	1
4	07016-20708	SEAL,DUST (KIT)	1
4	144-63-95170	SEAL,DUST (KIT)	1
5	07179-12084	RING,SNAP	1
5	07179-00093	RING,SNAP	1
6	07177-07030	BUSHING	1
7	707-51-70030	PACKING,ROD (KIT)	1
7	707-51-70211	PACKING,ROD (KIT)	1
7A	707-51-70630	RING,BUFFER (KIT)	1
8	07000-12105	O-RING (KIT)	1
9	707-35-91111	RING,BACK-UP (KIT)	1
9	07146-02106	RING,BACK-UP (KIT)	1
10	01010-51655	BOLT	12
11	707-36-11361	PISTON	1
12	07165-15252	NUT	1
13	707-44-11080	RING,PISTON (KIT)	1
14	07155-01125	RING,WEAR (KIT)	1
15	707-76-70040	BUSHING	2
16	07145-00070	SEAL,DUST (KIT)	4
17	203-63-52570	TUBE,L.H.	1
17	203-63-52670	TUBE,R.H.	1
18	203-63-52580	TUBE,L.H.	1
18	203-63-52680	TUBE,R.H.	1
19	01010-50855	BOLT	4
20	01010-50845	BOLT	4
21	01602-20825	WASHER,SPRING	8
22	07000-13030	O-RING (KIT)	2
23	707-88-99130	BRACKET	1
24	707-88-99110	BAND	1
25	01010-51035	BOLT	2
26	01602-21030	WASHER,SPRING	2
27	07283-22236	CLIP	2
28	01599-01011	NUT	4
29	01643-31032	WASHER	4
30	07020-00675	FITTING,GREASE	2

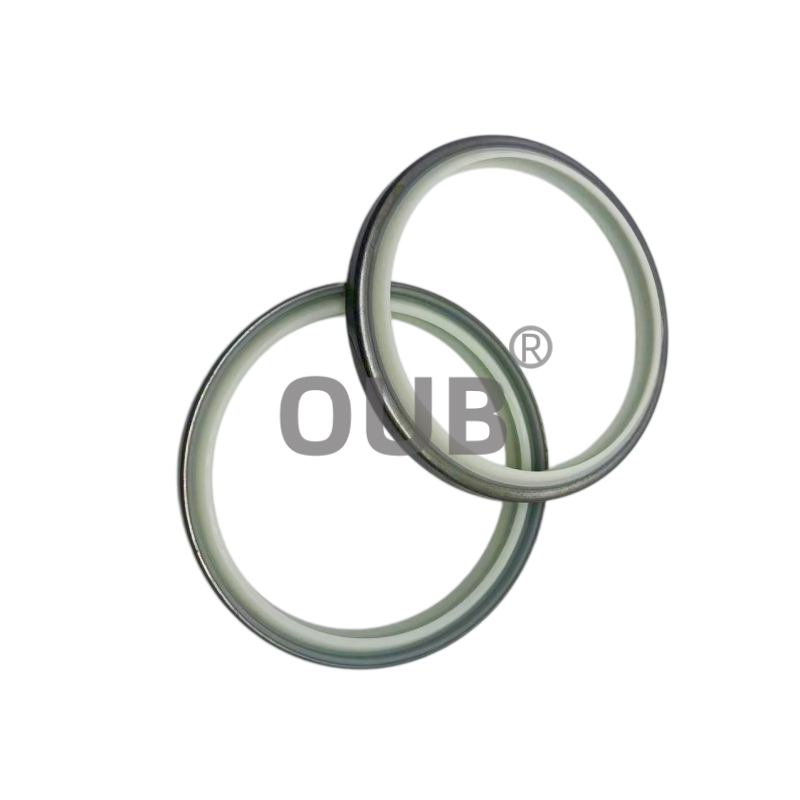

3. 07016-20708 picture:

07016-20708 0701620708 SEAL,DUST OF D60P-8 D60P-11
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-51-10110	707-98-39611	707-98-37680
707-99-64250	707-98-39700	707-98-64420
707-99-64400	707-98-38600	707-98-64450
707-99-64410	707-98-39610	707-98-66410
707-99-67110	707-98-39611	707-98-67100
707-51-12860	707-98-39700	707-98-67110
707-98-26560	707-98-26580	707-99-47660
707-98-26570	707-98-26600	707-98-38551
707-99-46120	707-98-26620	707-98-38600

5. FAQ

Q: What is the part number of this dust seal spare part?
A: The part number is 07016-20708, it is a dust seal engineered for wheel loader hydraulic cylinder rod.

Q: What construction machinery can part number 07016-20708 dust seal be fitted to?
A: Part number 07016-20708 dust seal is designed to match wheel loader hydraulic cylinder rod assemblies.

Q: What materials are used to produce this dust seal?
A: It uses high tensile polyurethane scraping lip bonded to NBR rubber base, featuring good resistance to dynamic load and ageing.

Q: What main task does this dust seal perform when the machine is running?
A: It clears dust, fine mineral powder and thick mud crust from the moving piston rod and keeps abrasive particles out of the cylinder’s internal sealing system.

Q: Where is this dust seal positioned on the hydraulic cylinder assembly?
A: It installs inside the outer gland groove at cylinder rod end, exposed directly to harsh outdoor working conditions at construction sites.

Q: What special feature does this dust seal lip profile have?
A: The multi-stage lip design can wipe contaminants thoroughly while maintaining moderate contact pressure to reduce wear on the polished rod surface.
