Products

Home > Products > Dust Wiper Seals > 07016-20958 0701620958 SEAL,DUST OF BP500-3 PC200-3

07016-20958 0701620958 SEAL,DUST OF BP500-3 PC200-3

Name: 07016-20958 0701620958 SEAL,DUST OF BP500-3 PC200-3
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 07016-20958
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 07016-20958

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                dust wiper seal for BP500-3, dust wiper seal for PC200-3, BP500-3 dust wiper seal


Part No.::	07016-20958	Model:	PC200LC-3
Part Name::	DUST SEAL	Machine:	Wheel Loader
Material:	NBR	Color:	WHITE

Part No.::	07016-20958
Model:	PC200LC-3
Part Name::	DUST SEAL
Machine:	Wheel Loader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 07016-20958 :

Part NO.	07016-20958
Machine	Wheel Loader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 07016-20958 parts on group :

07016-20958 0701620958 SEAL,DUST OF BP500-3 PC200-3

NO.	PART NO.	PRAT NAME	QTY
1	205-63-69320	ROD,PISTON	1
2	707-76-80010	BUSHING	2
3	07145-00080	SEAL,DUST	4
4	07179-13109	RING,SNAP	1
5	07016-20958	SEAL,DUST	1
	707-56-95510	SEAL,DUST	1
6	707-28-13261	HEAD,CYLINDER	1
7	01010-81665	BOLT	12
8	707-35-91320	RING,BACK-UP	2
9	707-35-91330	RING,BACK-UP	1
10	07000-15120	O-RING	2
11	707-52-10950	BUSHING	1
12	707-51-95030	PACKING,ROD	1
13	707-51-95630	RING,BUFFER	1
14	707-71-50011	PLUNGER	1
15	707-44-13180	RING,PISTON	1
16	707-36-13440	PISTON	1
17	707-39-13110	RING,WEAR	2
18	707-68-10680	NUT	1
19	707-71-91250	SCREW	1
20	04260-00635	BALL	12
21	707-71-50252	PLUNGER	1
22	205-63-62141	CYLINDER	1
23	205-63-62170	TUBE	1
24	07000-13030	O-RING	1
25	01010-50845	BOLT	2
26	01010-50855	BOLT	2
27	01602-20825	WASHER,SPRING	4
28	20D-62-17860	ELBOW	1
29	07000-13035	O-RING	1
30	01010-51080	BOLT	4
31	01602-21030	WASHER,SPRING	4
32	707-88-99360	BAND	1
33	707-88-99310	BAND	1
34	01010-51030	BOLT	2
35	01602-21030	WASHER,SPRING	2
36	707-88-10820	PLATE	1
37	07283-22738	CLIP	2
38	01599-01011	NUT	4
39	01643-31032	WASHER	4
40	07020-00900	FITTING,GREASE	1

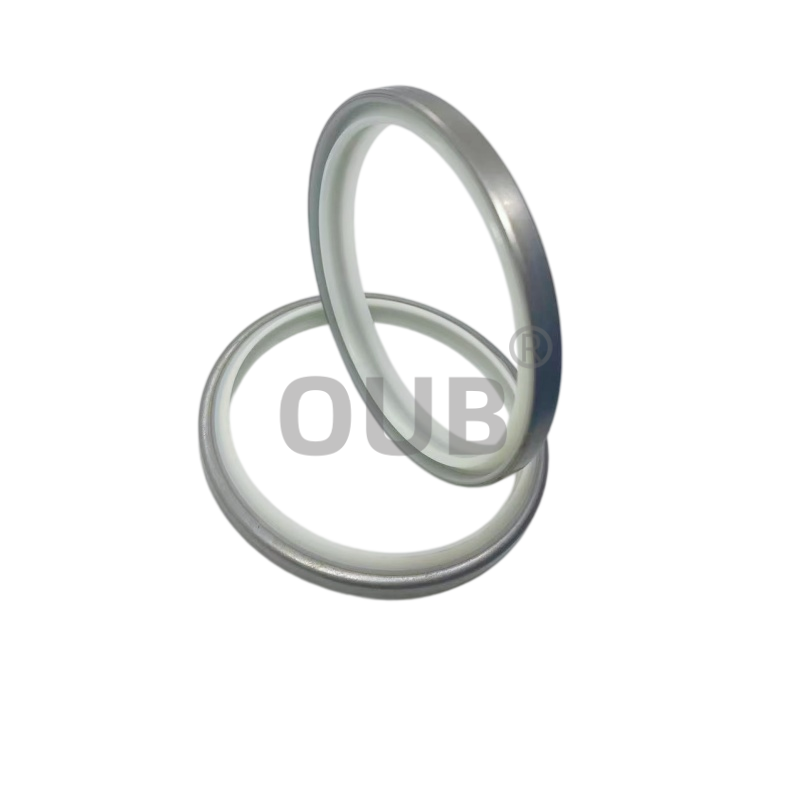

3. 07016-20958 picture:

07016-20958 0701620958 SEAL,DUST OF BP500-3 PC200-3
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-51-10110	707-98-39611	707-98-37680
707-99-64250	707-99-59150	707-99-64152
707-99-64400	707-99-59230	707-99-64180
707-99-64410	707-99-59320	707-99-64200
707-99-67110	707-99-59330	707-99-64230
707-51-12860	707-98-39700	707-98-67110
707-98-26560	707-98-26580	707-99-47660
707-98-26570	707-98-26600	707-98-38551

5. FAQ

Q: What is the part number of this dust seal spare component?
A: The part number is 07016-20958, it is a dust seal custom manufactured for wheel loader hydraulic cylinder rod.

Q: What construction machinery can part number 07016-20958 dust seal be installed on?
A: Part number 07016-20958 dust seal fits wheel loader hydraulic cylinder rod assemblies perfectly.

Q: What raw materials compose this dust seal?
A: It adopts high rebound polyurethane scraping lip paired with NBR rubber base, which can resist repeated deformation and grit abrasion.

Q: What key role does this dust seal play during machine operation?
A: It scrapes sand, dust and sticky mud residue away from the moving piston rod, and prevents external hard particles from entering the inner hydraulic sealing assembly.

Q: Where is this dust seal assembled on hydraulic cylinder?
A: It is seated inside the outermost gland groove at the cylinder rod end, exposed to dusty and wet working surroundings on construction sites.

Q: What unique feature does this dust seal profile possess?
A: The smooth arc lip can wipe off contaminants efficiently while keeping low friction so the piston rod moves with less resistance.

Q: Can this dust seal keep reliable performance for wheel loaders working in sand yards?
A: Yes, it can maintain consistent wiping performance under continuous heavy-duty cycles when wheel loaders handle bulk sand and gravel materials.

Q: What sealing category does this spare part belong to?
A: It belongs to dust seal category and acts as the outer first-line protection part of the whole hydraulic cylinder sealing group.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
