Home > Products > Dust Wiper Seals > 707-56-85510 7075685510 SEAL,DUST (KIT) OF PC200-6Z PC200CA-6

707-56-85510 7075685510 SEAL,DUST (KIT) OF PC200-6Z PC200CA-6

Name: 707-56-85510 7075685510 SEAL,DUST (KIT) OF PC200-6Z PC200CA-6
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 707-56-85510
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 707-56-85510

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                PC200-6Z dust wiper seal kit, PC200CA-6 dust seal replacement, Komatsu excavator dust wiper seals


Part No.::	707-56-85510	Model:	PC200-6S
Part Name::	DUST SEAL	Machine:	Motor Grader
Material:	NBR	Color:	WHITE

Part No.::	707-56-85510
Model:	PC200-6S
Part Name::	DUST SEAL
Machine:	Motor Grader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 707-56-85510:

Part NO.	707-56-85510
Machine	Motor Grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 707-56-85510 parts on group :

707-56-85510 7075685510 SEAL,DUST (KIT) OF PC200-6Z PC200CA-6

NO.	PART NO.	PRAT NAME	QTY
1	20Y-63-52740	CYLINDER	1
2	205-70-71360	BUSHING	1
3	07145-00070	SEAL,DUST (KIT)	2
4	20Y-63-52720	ROD,PISTON	1
5	707-76-80010	BUSHING	1
6	07145-00080	SEAL,DUST (KIT)	2
7	707-27-12921	HEAD,CYLINDER	1
8	07179-13099	RING,SNAP	1
9	707-56-85510	SEAL,DUST (KIT)	1
10	707-52-90610	BUSHING	1
11	707-51-85030	PACKING,ROD (KIT)	1
12	07000-15110	O-RING (KIT)	1
13	707-35-91220	RING,BACK-UP (KIT)	1
14	707-51-85630	RING,BUFFER (KIT)	1
15	01010-81670	BOLT	12
16	01643-51645	WASHER	12
17	707-36-12071	PISTON	1
18	707-44-12180	RING,PISTON (KIT)	1
19	707-39-12110	RING,WEAR (KIT)	2
20	707-44-12911	RING	2
21	707-71-60860	PLUNGER	1
22	01310-01216	SCREW	1
23	707-35-90930	RING,BACK-UP (KIT)	2
24	07000-15075	O-RING (KIT)	1
25	707-71-32790	COLLAR	1
26	707-35-91220	RING,BACK-UP (KIT)	2
27	07000-15110	O-RING (KIT)	1
28	20Y-63-52770	TUBE,L.H.	1
	20Y-63-52870	TUBE,R.H.	1
29	20Y-63-52382	TUBE,L.H.	1
	20Y-63-52482	TUBE,R.H.	1
30	01435-01055	BOLT	4
31	01435-01040	BOLT	4
32	07000-13030	O-RING (KIT)	2
33	20Y-63-52400	BRACKET	1
34	20Y-63-52390	BRACKET,L.H.	1
	20Y-63-52490	BRACKET,R.H.	1
35	707-88-96530	BAND	2
36	01010-51035	BOLT	4
37	01643-51032	WASHER	4
38	07283-22738	CLIP	2
39	01599-01011	NUT	4
40	01643-31032	WASHER	4

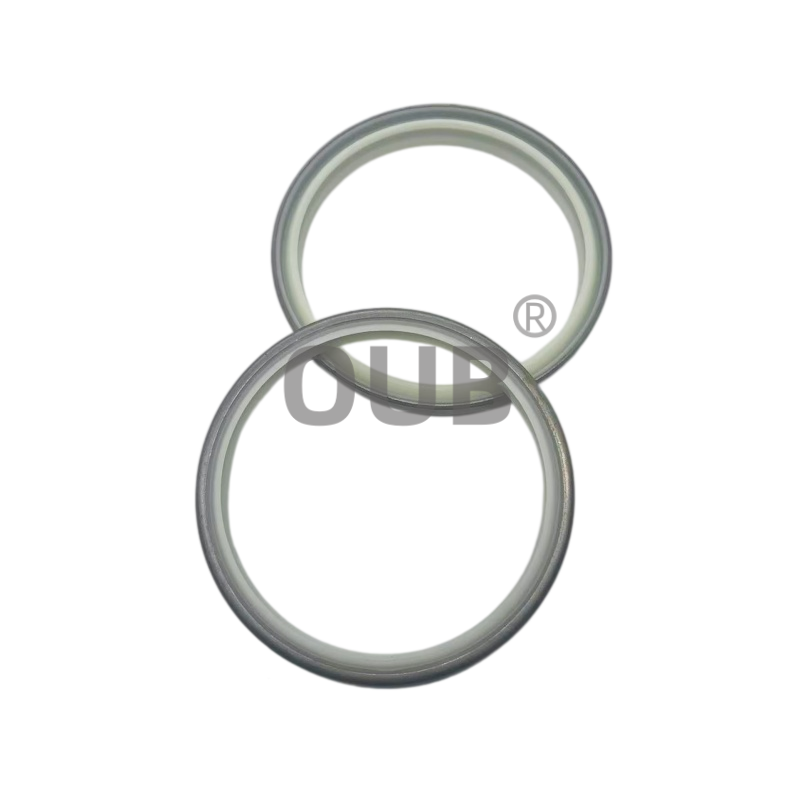

3. 707-56-85510 picture:

707-56-85510 7075685510 SEAL,DUST (KIT) OF PC200-6Z PC200CA-6
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-51-10110	707-98-67110	707-98-37680
707-99-64040	707-99-77140	707-35-52830
707-51-60640	707-98-26820	707-98-39611
707-51-60650	707-98-26900	707-98-39700

5. FAQ

Q: Could you share the part number and matched machine model of this dust seal?
A: The part number is 707-56-85510, this dust seal is designed for motor grader hydraulic cylinders.

Q: What material formula is used for producing the 707-56-85510 dust seal?
A: The 707-56-85510 dust seal adopts high wear-resistant polyurethane integrated with nitrile rubber base.

Q: What is the main working purpose of this dust seal?
A: It wipes fine dust, silt and gravel residues off the piston rod and stops abrasive contaminants entering the hydraulic cylinder.

Q: Where is this dust seal fitted on the motor grader?
A: It is installed in the gland assembly of blade side shift and lift hydraulic cylinders.

Q: What unique performance features does this dust seal have?
A: It maintains sharp scraping edge and keeps stable flexibility under continuous vibration during road grading work.

Q: Can this dust seal perform well in long-hour road leveling projects with dry dusty conditions?
A: Yes, it can sustain reliable wiping performance under outdoor alternating dry and slightly wet construction environments.

Q: What product category does this spare part belong to?
A: It belongs to dust wiper seal, the first-line outer protective component of hydraulic cylinder sealing assembly.

Q: What precautions should we take while installing this dust seal?
A: Polish all burrs on piston rod and use assembly sleeve to prevent the seal lip from tearing during fitting.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
