Home > Products > Dust Wiper Seals > 566-63-22241 5666322241 SEAL,DUST OF PC850SE-8 PC1100SP-6

566-63-22241 5666322241 SEAL,DUST OF PC850SE-8 PC1100SP-6

Name: 566-63-22241 5666322241 SEAL,DUST OF PC850SE-8 PC1100SP-6
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 566-63-22241
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 566-63-22241

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                PC850SE-8 dust wiper seal, PC1100SP-6 dust wiper seal, Komatsu dust wiper seal


Part No.::	566-63-22241	Model:	PC1000SE-1
Part Name::	DUST SEAL	Machine:	Grader
Material:	NBR	Color:	WHITE

Part No.::	566-63-22241
Model:	PC1000SE-1
Part Name::	DUST SEAL
Machine:	Grader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 566-63-22241:

Part NO.	566-63-22241
Machine	Grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 566-63-22241 parts on group :

566-63-22241 5666322241 SEAL,DUST OF PC850SE-8 PC1100SP-6

NO.	PART NO.	PRAT NAME	QTY
1	707-13-26013	CYLINDER	1
2	707-76-18030	BUSHING	1
3	707-27-26012	HEAD,CYLINDER	1
4	707-52-11610	BUSHING	1
5	707-51-16640	RING,BUFFER (KIT)	1
6	707-51-16130	PACKING,ROD (KIT)	1
7	566-63-22241	SEAL,DUST (KIT)	1
8	07179-14180	RING,SNAP	1
9	07000-15250	O-RING (KIT)	1
10	707-35-92620	RING,BACK-UP (KIT)	1
11	01011-63000	BOLT	12
12	01643-33080	WASHER	12
13	707-58-16070	ROD,PISTON	1
14	707-76-18030	BUSHING	1
15	07000-12135	O-RING (KIT)	1
16	707-35-52880	RING,BACK-UP (KIT)	2
17	707-36-26012	PISTON	1
18	707-44-26180	RING,PISTON (KIT)	1
19	707-39-26820	RING,WEAR (KIT)	4
20	707-40-26011	SPACER	2
21	01010-61665	BOLT	6

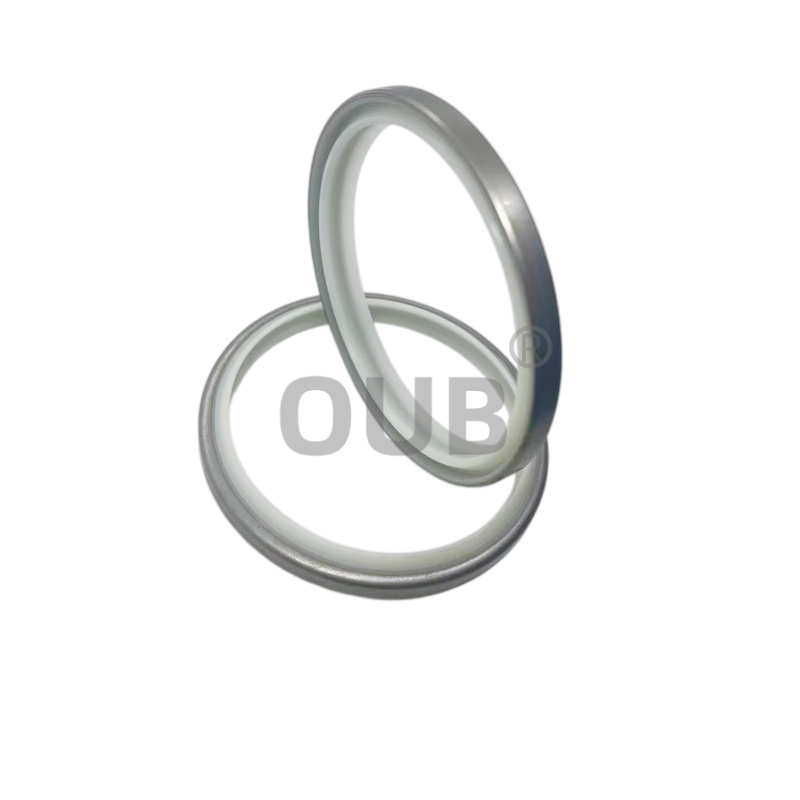

3. 566-63-22241 picture:

566-63-22241 5666322241 SEAL,DUST OF PC850SE-8 PC1100SP-6
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-51-10110	707-99-59320	707-99-64200
707-35-92300	707-51-60640	707-99-64230
707-35-92600	707-51-60650	707-51-70630
707-35-92900	707-51-65630	707-51-70650
707-99-67070	707-99-74010	707-99-77380
707-98-39700	707-98-67110	707-99-77600

5. FAQ

Q: What construction machine fits part number 566-63-22241?
A: This 566-63-22241 dust seal is manufactured for grader hydraulic cylinder rods.

Q: What spare part group does 566-63-22241 belong to?
A: 566-63-22241 falls into dust seal category for grader hydraulic rod sealing assembly.

Q: What materials make up this dust seal?
A: It is composed of oil-resistant NBR rubber bonded with built-in metal insert.

Q: What is the main duty of this dust seal during grader operation?
A: It sweeps gravel and dust off piston rod surface and keeps foreign particles out of cylinder gland.

Q: Where is this dust seal installed on the grader hydraulic cylinder?
A: It is fitted into the outermost groove of cylinder gland exposed to outdoor working sites.

Q: Can this dust seal sustain heavy vibration during road leveling work?
A: Yes, the integrated metal insert can hold shape well under continuous vibration.

Q: What feature does the rubber lip of this dust seal have?
A: The single scraping lip design can remove fine dust without causing extra friction on rod.

Q: What problem will arise once this dust seal is worn out?
A: Dust will penetrate the cylinder and accelerate abrasion of inner seals and piston rod.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
