569-50-61230 5695061230 SEAL OF HD405-7 HD405-6

Name: 569-50-61230 5695061230 SEAL OF HD405-7 HD405-6
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 569-50-61230
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 569-50-61230

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HD405-7 dust wiper seal, HD405-6 dust wiper seal, 5695061230 dust wiper seal


Part No.::	569-50-61230	Model:	HD325-7R
Part Name::	DUST SEAL	Machine:	Grader
Material:	NBR	Color:	WHITE

Part No.::	569-50-61230
Model:	HD325-7R
Part Name::	DUST SEAL
Machine:	Grader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 569-50-61230:

Part NO.	569-50-61230
Machine	Grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 569-50-61230 parts on group :

569-50-61230 5695061230 SEAL OF HD405-7 HD405-6

NO.	PART NO.	PRAT NAME	QTY
1	566-50-81511	CYLINDER	1
2	566-50-71320	TUBE	1
3	01010-81225	BOLT	2
4	07000-13045	O-RING	2
5	01643-51232	WASHER	2
6	07001-03045	RING	2
7	566-50-71031	ROD ASSEMBLY	1
8	566-50-65140	FLANGE	1
9	566-50-11133	RETAINER	1
10	566-50-11141	PLATE	1
11	07043-00108	PLUG	1
12	01010-81085	BOLT	15
13	01643-51032	WASHER	15
14	07000-15190	O-RING	1
15	07001-05190	RING	1
16	569-50-61230	SEAL	1
17	566-50-11290	BUSHING	1
18	566-50-6A410	PACKING	1
19	707-51-16650	RING	1
20	566-50-71230	RING	1
21	569-50-6A180	BUSHING	1
22	566-50-11461	BEARING	1
23	04065-09030	RING	2
24	566-50-41310	PLATE	1
	566-50-11301	VALVE ASSEMBLY	1
25	566-50-11320	VALVE	1
26	281-50-11721	CORE,VALVE	1
27	566-50-11340	CAP	1
28	07000-11006	O-RING	1
29	566-50-21260	VALVE	1
30	566-50-11350	PACKING	3
31	566-50-11271	VALVE	1
32	07000-15145	O-RING	1
33	01643-31032	WASHER	3

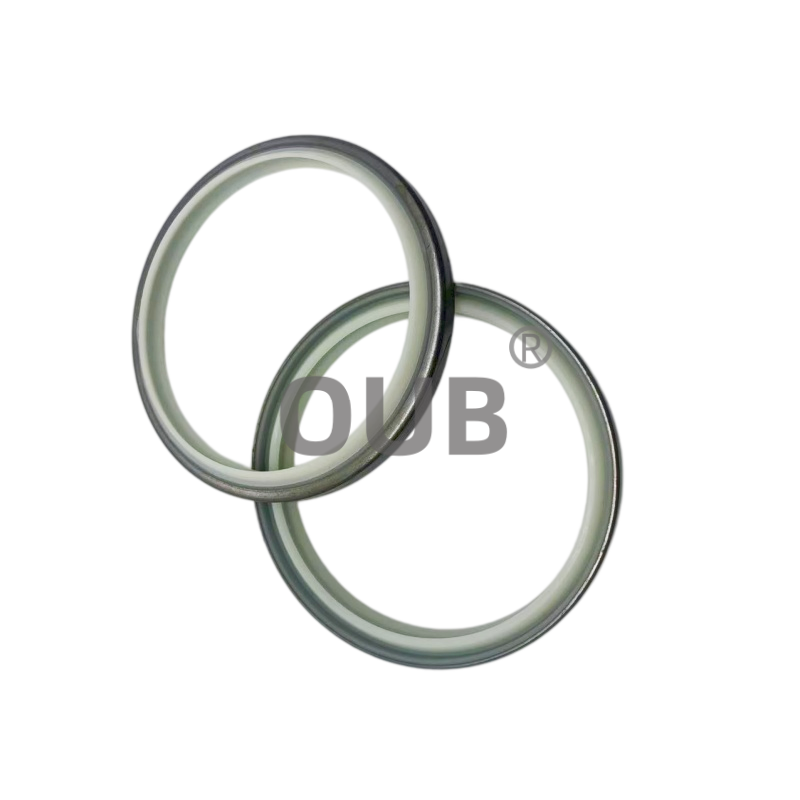

3. 569-50-61230 picture:

569-50-61230 5695061230 SEAL OF HD405-7 HD405-6
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-51-10110	707-99-59320	707-99-64200
707-35-92300	707-51-60640	707-99-64230
707-35-92600	707-98-26560	707-98-38500
707-35-92900	707-98-26570	707-98-38510
707-99-67290	707-98-26580	707-98-38520

5. FAQ

Q: What construction machine is part number 569-50-61230 compatible with?
A: This 569-50-61230 dust seal is manufactured for grader hydraulic cylinder rods.

Q: What spare part category does 569-50-61230 belong to?
A: 569-50-61230 is classified as dust seal for grader hydraulic rod sealing assembly.

Q: What raw materials make up this dust seal?
A: It is constructed from oil-resistant NBR rubber combined with stamped metal insert.

Q: What is the primary function of this dust seal on grader equipment?
A: It removes fine dirt and gravel dust on moving piston rod and prevents impurities entering cylinder gland.

Q: Where is this dust seal installed on the grader hydraulic cylinder?
A: It is fitted into the outermost groove of cylinder gland and faces the outdoor road construction environment.

Q: Can this dust seal keep stable performance under continuous road leveling vibration?
A: Yes, the stamped metal insert helps the seal stay in place under long time mechanical vibration.

Q: What design feature does the sealing lip of this dust seal have?
A: It adopts single sharp lip design to scrape off dust while minimizing friction on piston rod surface.

Q: What damage will be caused once this dust seal fails?
A: Dust and sand will enter the hydraulic cylinder and speed up abrasion of piston rod and inner seals.

6. Exhibition and Wearhous
